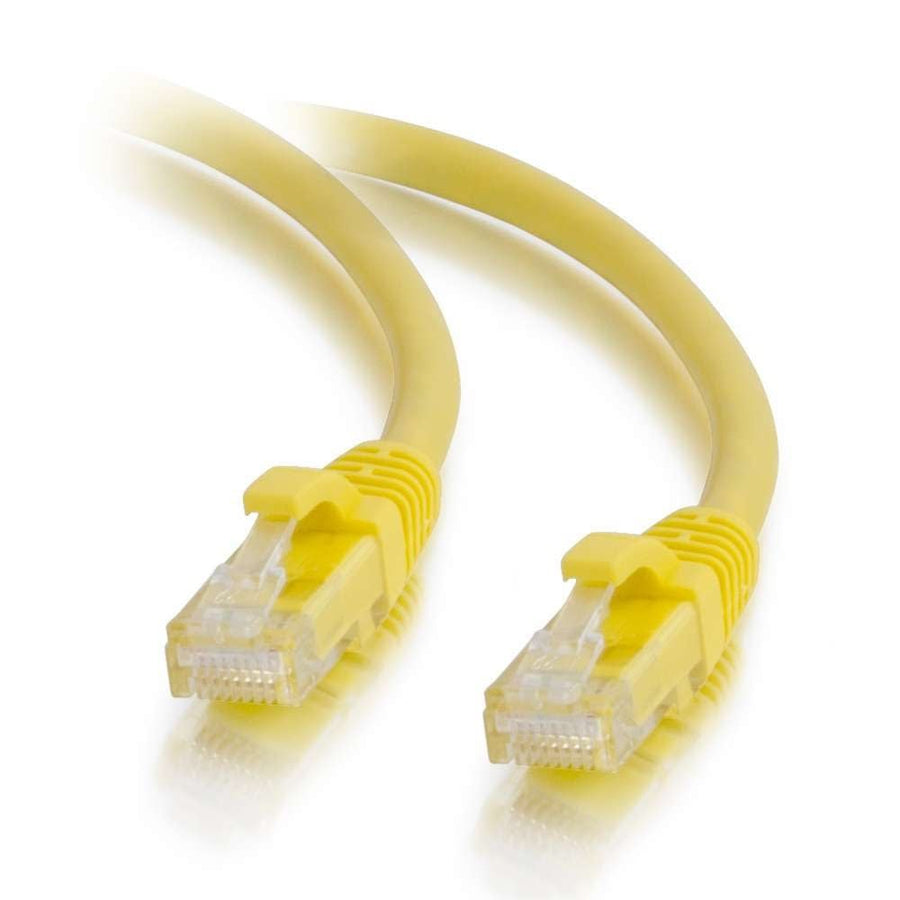

3ft (0.9m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - Yellow
3ft Yellow Cat5e Snagless UTP Ethernet patch cable with 24 AWG stranded copper conductors
The C2G CG15221 is a 3ft (0.9m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable designed for fast Ethernet networks. This cable is intended for bandwidth-intensive applications, including voice, data, and video distribution. It is constructed with high quality stranded copper conductors and features a 24 AWG wire gauge. The T568B wiring scheme is utilized to ensure standardized connectivity. Each individual pair is bonded together to help maintain twist-spacing through the termination point, which minimizes Near-End Crosstalk (NEXT) levels and reduces structural return loss (SRL). The cable features a 0.21 in (5.3 mm) diameter and a PVC jacket. For easier installation and protection, the RJ-45 male connectors are equipped with molded, snagless PVC boots that provide strain relief and prevent damage to the clips during plugging or unplugging. This yellow cable is part of a series available in various colors and lengths to support network color-coding requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 350 mHz |
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 3 ft (0.9 m) |
| Shield Type | UTP |
| Shipping Weight | 0.09 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
All other specifications 15
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120152217 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
3ft (0.9m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - Black
CG15180$4.99
6-Port Network Interface Module
AC1000$54.99
Trio Combo Module with Cat5e Data
CO1156$109.99
Cat5e Quick Connect RJ45 Keystone Insert in Brown
WP3475BR$3.99
Cat5e RJ45 Keystone Connector in Gray
WP3450GY$4.49
8 Port Cat5e Network Interface Module
AC1058$54.99
Cat5e Quick Connect RJ45 Keystone Insert in Green
WP3475GN$3.99
6-Port Cat5e Network Interface Module
AC1012$59.99
Cat5e Keyed RJ45 Keystone Connector in Black
WP3458BK$6.49
Cat5e RJ45 Keystone Connector in Orange
WP3450OR$4.49
Cat5e RJ45 Keystone Connector in Black
WP3450BK$4.49
Cat5e RJ45 Keystone Connector in Blue
WP3450BE$4.49
Questions about this part
Will this Cat5e cable work for high-bandwidth video distribution?
Yes, this cable is designed for bandwidth-intensive applications including video distribution and meets all Cat5e TIA/EIA standards.
Does the snagless boot protect the connector clips?
Yes, the molded snagless boot protects the RJ-45 clips from being damaged or caught when plugging and unplugging the cable.
What is the conductor material and gauge for this patch cable?
This patch cable uses stranded copper conductors with a 24 AWG wire gauge.
Is this cable suitable for color-coded network installations?
Yes, this is a yellow cable; the series is available in 10 colors and various lengths up to 150ft for easy color-coding.
What is the maximum bandwidth for this Cat5e cable?
This Cat5e network cable supports a bandwidth of 350 mHz.
