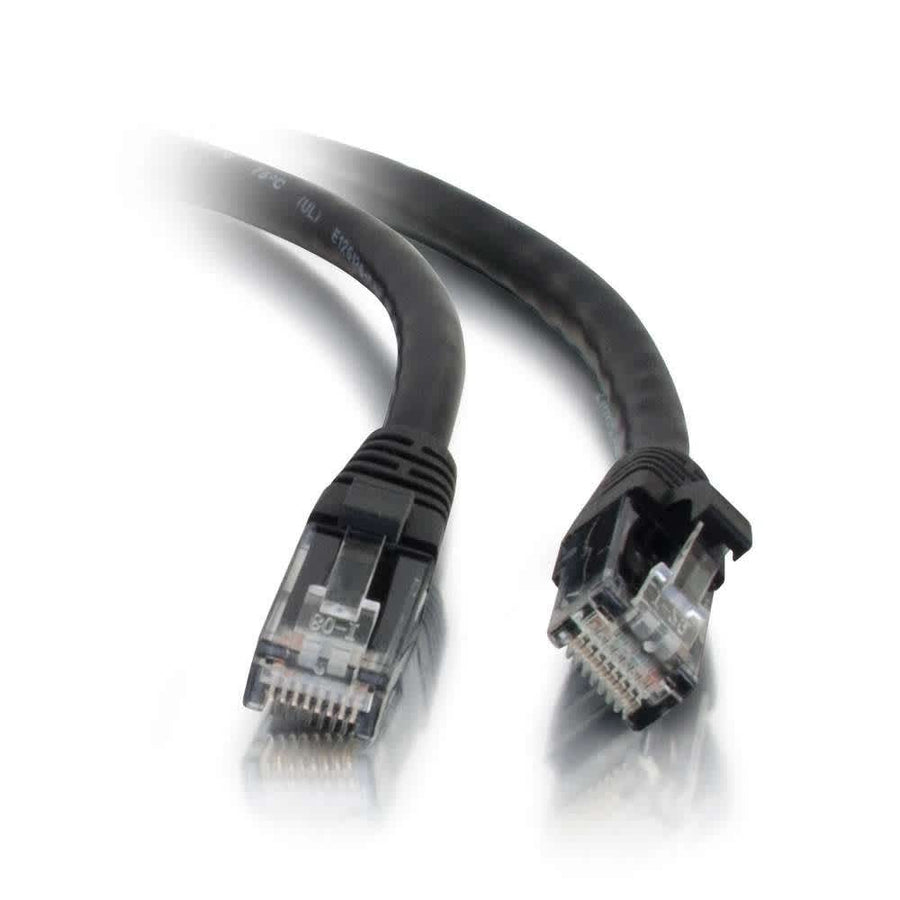

3ft (0.9m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - Black
3ft (0.9m) Cat5e snagless UTP Ethernet patch cable in black with stranded copper conductors
The C2G CG15180 is a 3ft (0.9m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable designed for high-bandwidth voice, data, and video distribution in fast Ethernet networks. This cable features stranded copper conductors and a 24 AWG wire gauge to minimize Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to maintain twist-spacing up to the termination point, which reduces impedance and structural return loss (SRL). The construction includes a PVC jacket and a PVC connector hood material. For ease of installation, the cable utilizes a snagless, booted design that protects the RJ-45 male clips from damage during plugging and unplugging, while providing additional strain relief. This unshielded (UTP) cable operates with a bandwidth of 350 mHz and uses a T568B wiring scheme. It is a standard-compliant solution for networking environments requiring reliable connectivity.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 350 mHz |
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 3 ft (0.9 m) |
| Shield Type | UTP |
| Shipping Weight | 0.09 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
All other specifications 16
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120151807 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it

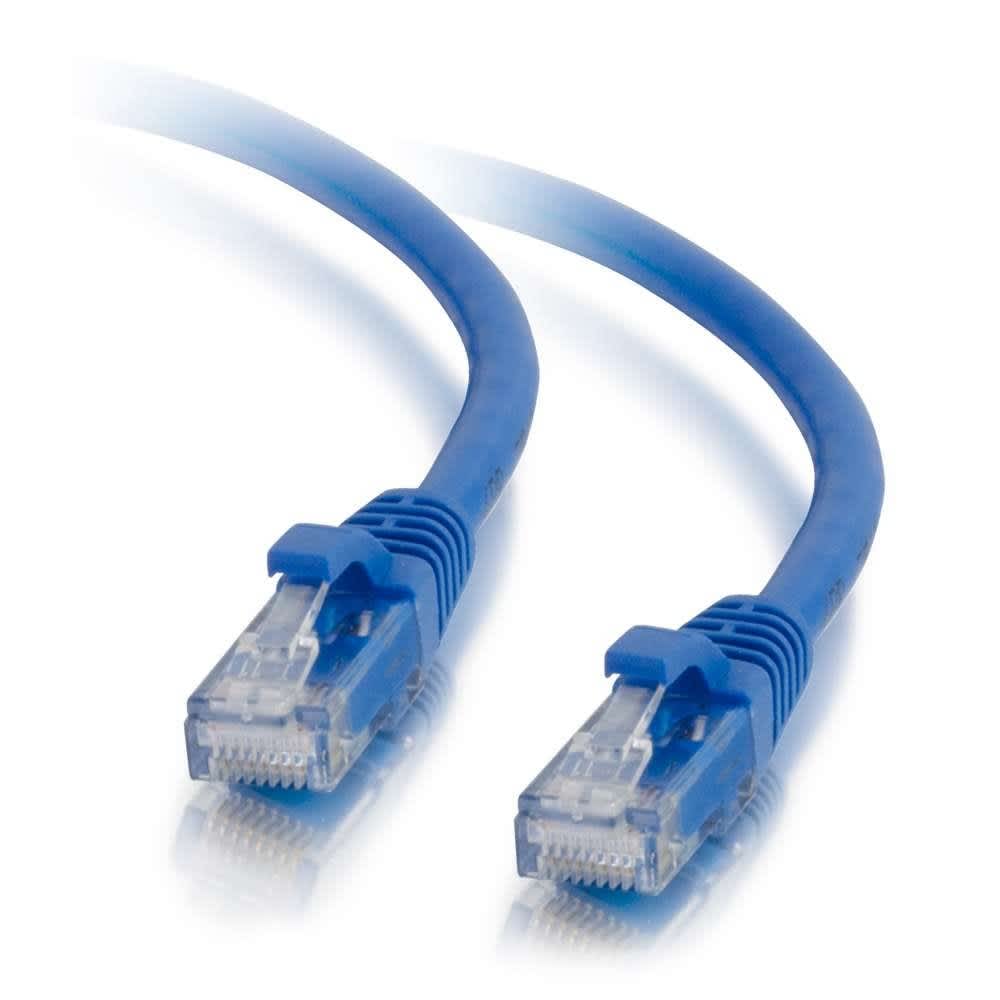

3ft (0.9m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
CG15178$4.99
8 Port Cat5e Network Interface Module
AC1058$54.99
Cat5e Quick Connect RJ45 Keystone Insert in Green
WP3475GN$3.99
Cat5e Keyed RJ45 Keystone Connector in Black
WP3458BK$6.49

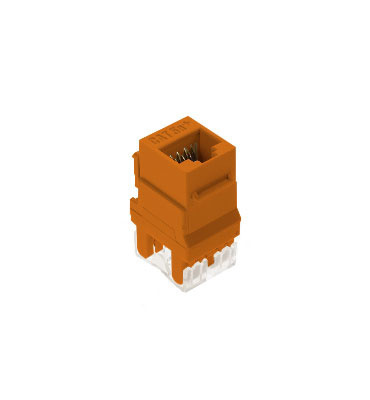

Cat5e RJ45 Keystone Connector in Orange
WP3450OR$4.49
6-Port Network Interface Module
AC1000$54.99
Trio Combo Module with Cat5e Data
CO1156$109.99
Cat5e Quick Connect RJ45 Keystone Insert in Brown
WP3475BR$3.99
Cat5e RJ45 Keystone Connector in Gray
WP3450GY$4.49
6-Port Cat5e Network Interface Module
AC1012$59.99
RJ45 Cat-5E Insert in White - 5 Pack
F3450WHV5$22.99

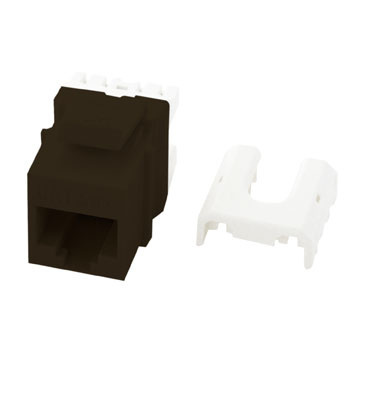

Cat5e RJ45 Keystone Connector in Brown
WP3450BR$4.49
Questions about this part
What is the purpose of the snagless design on the CG15180?
The snagless, booted RJ-45 connectors protect the clips from being snapped off during installation and provide extra strain relief for the cable.
Is the C2G CG15180 suitable for high-bandwidth applications?
Yes, this Cat5e cable is designed for bandwidth-intensive voice, data, or video distribution, supporting a bandwidth of 350 mHz.
What is the difference between the CG15180 and other colors in this series?
The CG15180 is the black version; the series is also available in 9 other colors, such as the blue CG15178, for network color-coding.
What tools are required for installation?
No specific tools are listed for this pre-terminated patch cable, as it features standard RJ-45 male connectors for direct plug-and-play use.
Does this cable meet TAA requirements?
No, the CG15180 is not listed as TAA compliant.
