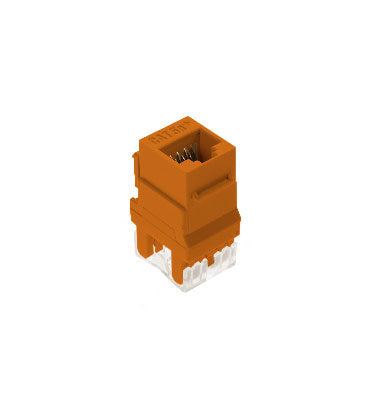

Cat5e RJ45 Keystone Connector in Orange
Orange Cat5e RJ45 Keystone Connector designed for easy punchdown termination in multimedia wall plates
The WP3450OR is an orange Cat5e RJ45 keystone connector designed for use in all multimedia wall plates. This high-quality insert features a vertical design to make punchdown termination easier during installation. For secure wire termination, the jack utilizes rear retention caps and spring wire made of phosphor bronze alloy plated with 50 micro-inch of gold over 100 micro-inches of nickel. The jack housing is constructed from high-impact, flame resistant UL 94V-0 plastic. This component is rated for an insertion and extraction life of 750 cycles minimum and meets the Category 5e requirements described in TIA/EIA-568-B.2. For larger projects, this SKU is part of a series available in multiple colors, and a contractor pack of 50 is available under part number WP3450-WH-50.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Package Count | 1 |
| Cable Type | Cat5e |
| Color | Orange |
Resources
Questions about this part
What wiring standards are supported by the WP3450OR?
This keystone includes both T658A and T568B wiring labels to assist with proper termination.
What type of cabling is required for this connector?
This is a Cat5e rated keystone designed specifically for use with Cat5e cable types.
Is there a bulk option available for this keystone?
Yes, a contractor pack containing 50 units is available via part number WP3450-WH-50.
What is the color of this specific SKU?
This part number is the orange version of the On-Q Cat5e RJ45 Keystone series.
What wall plates are compatible with the WP3450OR?
This insert is designed for use in all On-Q multimedia wall plates.
