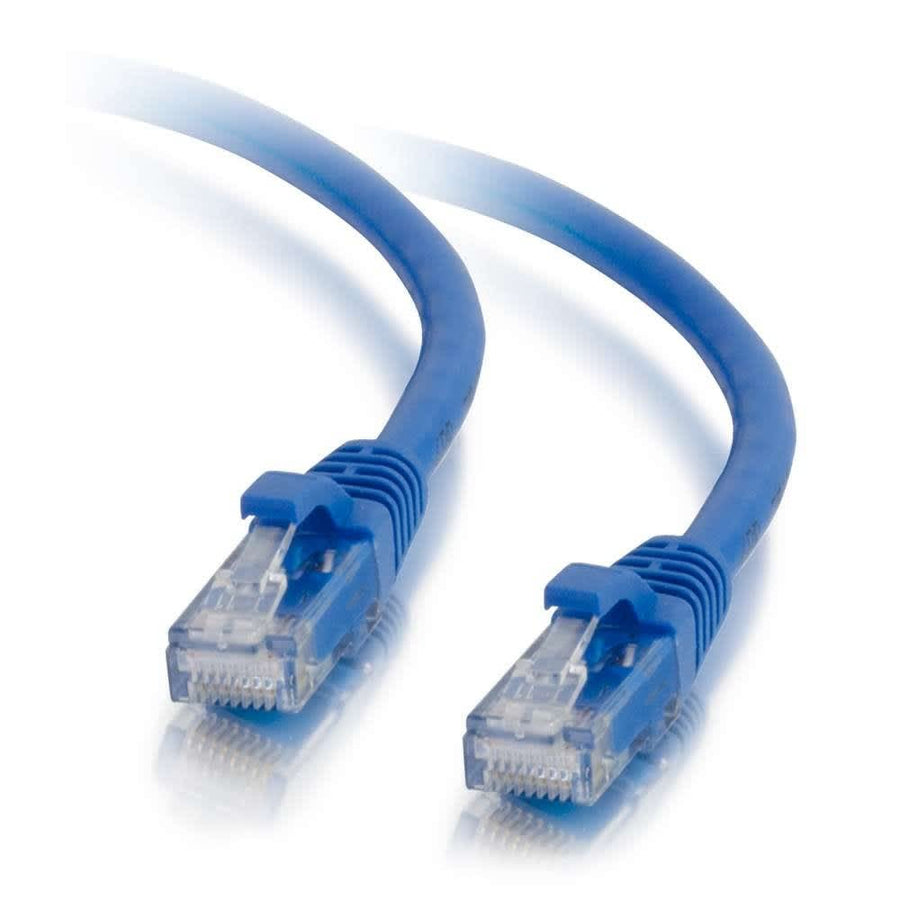

3ft (0.9m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
Blue Cat5e snagless patch cable, 3ft (0.9m) length, unshielded UTP construction with RJ-45 male connectors
The C2G CG15178 is a 3ft (0.9m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable in Blue, designed for high-speed network environments. This cable is engineered for bandwidth-intensive applications requiring voice, data, or video distribution. It is constructed with high-quality stranded copper conductors and maintains a 350 mHz bandwidth. The design includes individual pair bonding to preserve twist-spacing through to the termination point, which helps minimize Near-End Crosstalk (NEXT) levels. This specific SKU features a snagless, booted connector design made of PVC, which protects the clips during installation and provides extra strain relief. This unshielded (UTP) cable uses a T568B wiring scheme and is rated for standard, non-rated jacket applications. It is compliant with NDAA 889, RoHS, REACH, TSCA, and CE standards, and is covered by a lifetime warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 350 mHz |
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 3 ft (0.9 m) |
| Shield Type | UTP |
| Shipping Weight | 0.09 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
All other specifications 15
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120151784 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
3ft (0.9m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - Black
CG15180$4.99
6-Port Network Interface Module
AC1000$54.99
Trio Combo Module with Cat5e Data
CO1156$109.99
Cat5e Quick Connect RJ45 Keystone Insert in Brown
WP3475BR$3.99
Cat5e RJ45 Keystone Connector in Gray
WP3450GY$4.49
8 Port Cat5e Network Interface Module
AC1058$54.99
Cat5e Quick Connect RJ45 Keystone Insert in Green
WP3475GN$3.99
6-Port Cat5e Network Interface Module
AC1012$59.99
Cat5e Keyed RJ45 Keystone Connector in Black
WP3458BK$6.49
Cat5e RJ45 Keystone Connector in Orange
WP3450OR$4.49
Cat5e RJ45 Keystone Connector in Black
WP3450BK$4.49
Cat5e RJ45 Keystone Connector in Blue
WP3450BE$4.49
Questions about this part
Will this C2G CG15178 cable work with my network hardware?
Yes, this Cat5e patch cable uses standard RJ-45 male connectors and is designed for high-speed Ethernet networks requiring voice, data, or video distribution.
What is the difference between this and the CG15180 SKU?
The CG15178 is the blue version, while the CG15180 is the black version of the same 3ft (0.9m) Cat5e snagless patch cable.
Is this cable suitable for high-density patch panels?
Yes, this cable is compatible with various modules such as the AC1000 6-Port Network Interface Module and the AC1058 8-Port Cat5e Network Interface Module.
What electrical performance can I expect from this Cat5e cable?
This cable features a 350 mHz bandwidth, a conductor DC resistance of 89 Ohm/km maximum, and an insulation resistance of 100 Ohm/km minimum.
Is this patch cable compliant with environmental and security standards?
The CG15178 is compliant with NDAA 889, RoHS, REACH, and TSCA, and carries CE certification.
