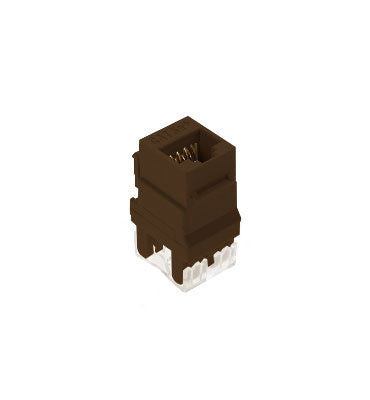

Cat5e RJ45 Keystone Connector in Brown
Cat5e RJ45 keystone connector in brown, featuring a vertical design for easy punchdown termination in multimedia wall plates
The On-Q WP3450BR is a brown Cat5e RJ45 keystone connector designed for use in all standard Keystone multimedia wall plates. This high-quality insert utilizes a vertical design to facilitate easier punchdown termination during installation. The jack housing is constructed from high-impact, flame-resistant UL 94V-0 plastic to ensure durability. For secure wire termination, the component features rear retention caps and spring wire made of a phosphor bronze alloy, which is plated with 50 micro-inch of gold over 100 micro-inches of nickel. The connector is rated for a minimum insertion and extraction life of 750 cycles and meets Category 5e standards as described in TIA/EIA-568-B.2.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Package Count | 1 |
| Cable Type | Cat5e |
| Color | Brown |
Resources
You'll need these with it
24-Port Blank Keystone/Multimedia Patch Panel
CG03859$43.99
12-Port Blank Keystone/Multimedia Patch Panel
CG03857$25.99
2-Port Decorator Outlet Strap in White
WP3412WH$1.79
Surface Mount Box 1-Port in White
WP3501WH$1.99
1-Gang 2-Port Wall Plate in White
WP3402WH$1.79
Surface Mount Box 2-Port in White
WP3502WH$2.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
Cable Management Strap - 12 Piece
TW12$25.20
3ft (0.9m) Cat5e Snagless Shielded STP Ethernet Network Patch Cable - Black
CG28690$12.99
10ft (3m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - Gray
CG15199$8.99
Questions about this part
What wiring standards does the WP3450BR support?
This keystone includes both T658A and T568B wiring labels to assist with standard termination.
What do I need to complete the installation of this keystone?
You will need standard punchdown tools for termination. This SKU is the individual insert only.
Will this connector fit my wall plate?
Yes, this is a standard keystone insert designed for use in any Keystone multimedia wall plate.
What is the difference between this and the contractor pack?
The WP3450BR is a single unit; a contractor pack of 50 is available under part number WP3450-WH-50.
Is this Cat5e keystone rated for durability?
Yes, the connector has a minimum insertion and extraction life of 750 cycles.
