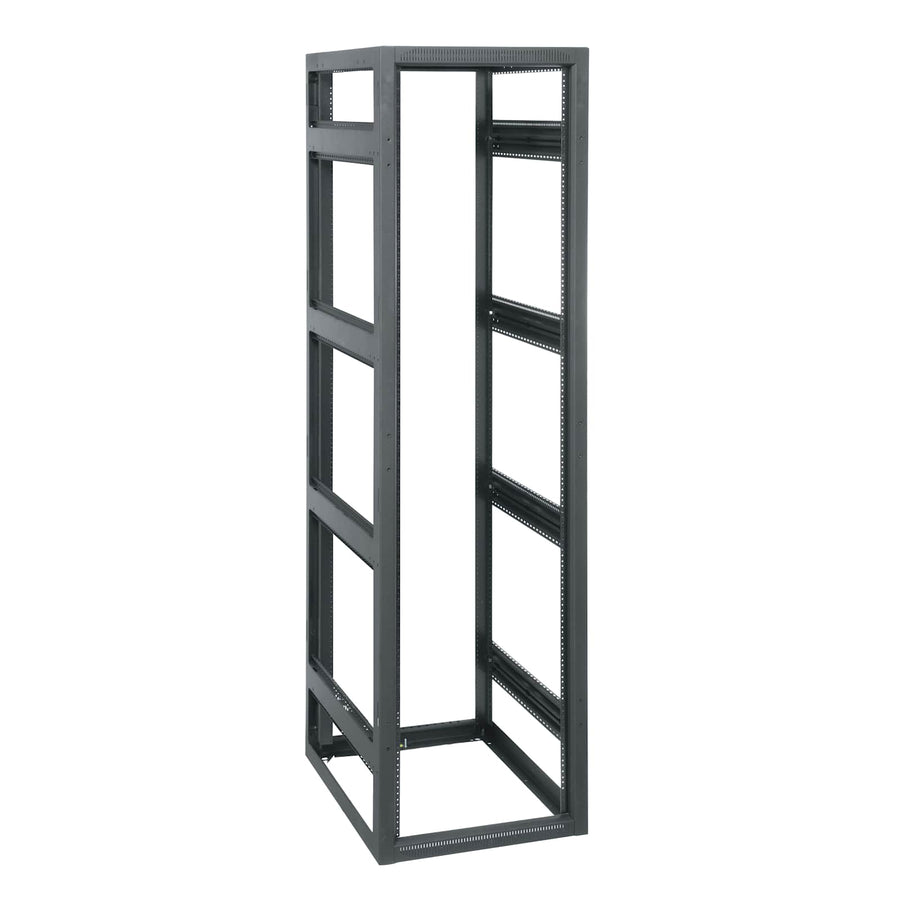

38 RU BGR Series Rack, 32 Inches Deep without Rear Door
38 RU floor-standing AV rack, 32 inches deep, seismic rated with Forward and Lever Lock™ compatibility
The Middle Atlantic BGR-3832LRD is a 38 RU floor-standing rack designed for high-density professional AV installations. This frame-only configuration features a 32 in (81.3 cm) depth and a usable depth of 29.4 in (74.7 cm). Built with a steel construction and finished in Black Wrinkle Powder Coat, it provides a high rack strength with a UL load capacity of 3000 lbs (1,360.8 kg). As a Forward Compatible rack, it supports the Lever Lock™ system for tool-free cable management accessories, which significantly increases installation speed. The 23 in (58.4 cm) width provides extra space for front-to-back cable management or mounting small devices using the Lever Lock™ system. This seismic-rated rack (1175 lbs (533 kg) seismic load capacity) is TAA compliant and UL listed. It features standard front and rear adjustable Forward Rackrail with numbered spaces and includes 25mm x 150mm swing handles.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 32 in (81.3 cm) |
| Height | 70.63 in (179.4 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 38 RU |
| Shipping Weight | 128 lbs (58.1 kg) |
| UL Load Capacity | 3000 lbs (1,360.8 kg) |
| Usable Depth | 29.4 in (74.7 cm) |
| Usable Height | 66.63 in (169.2 cm) |
All other specifications 18
| Width | 23 in (58.4 cm) |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Gangable | Yes |
| Handles | 25mm x 150mm Swing Handle |
| Material | Steel |
| Product Configuration | Frame Only |
| Rack Rail Type | Forward Rackrail |
| Rear Door | No |
| Seismic Rated | Yes |
| TAA Compliant | YesYes |
| UPC | 656747140242 |
| Certifications | ASCEHCAI (formerly OSHPD)TAAUL Listed |
| OSHPD Number | OPM-0444-13 |
| Patents | www.legrandav.com/patents |
| Seismic Load Capacity | 1175 lbs (533 kg) |
Resources
You'll need these with it
Caster Base for BGR Series
CBS-BGR$285.30
1 RU Mounting Rackshelf
UTR1$58.50
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Lace Bar L-Shaped - 10 Pieces
LBP-1A$63.00
1 RU BlowerPanel, 100 CFM, 32dB
QBP-2$581.40
276 CFM Fan Top, with Controller for BGR Series
BGR-276FT-FC$801.00
2 RU Utility Rackshelf, 15.4 Inches Deep, Vented
U2V$96.30
1 RU Rack Vent Panel, Perforated with 64% Open Area
VT1$27.90

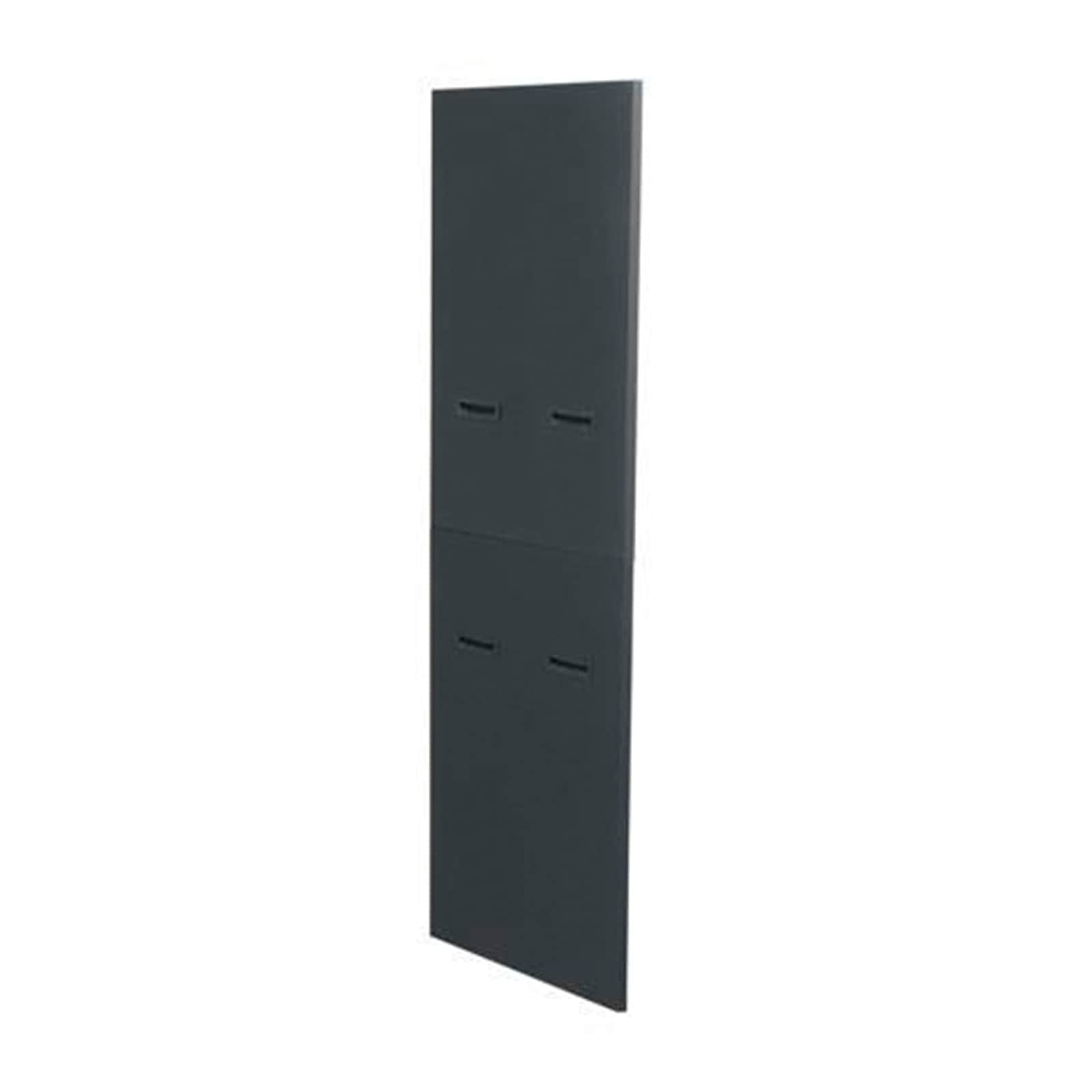

38 RU Side Panels for 32 Inch Deep BGR Racks
BSPN-38-32$930.60
9 RU Top Panel BGR Series
BGR-STP9$73.80
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Questions about this part
Will the BGR-3832LRD fit my equipment requirements?
This rack provides 38 RU of vertical space with a usable height of 66.63 in (169.2 cm) and a usable depth of 29.4 in (74.7 cm).
What accessories are compatible with the BGR-3832LRD?
You can add a CBS-BGR Caster Base, BGR-38-32 Side Panels, or various BGR Series fan and power modules to customize the setup.
Is this rack suitable for seismic or high-load environments?
Yes, it is a seismic-rated rack with a seismic load capacity of 1175 lbs (533 kg) and a UL load capacity of 3000 lbs (1,360.8 kg).
How do I manage cabling inside this BGR series rack?
The design accepts Lever Lock™ tool-free cable management accessories and provides side lacing on the Forward rear rackrail for internal cabling flexibility.
Does this rack require a rear door for operation?
This specific SKU (BGR-3832LRD) is a frame-only configuration and does not include a rear door.
