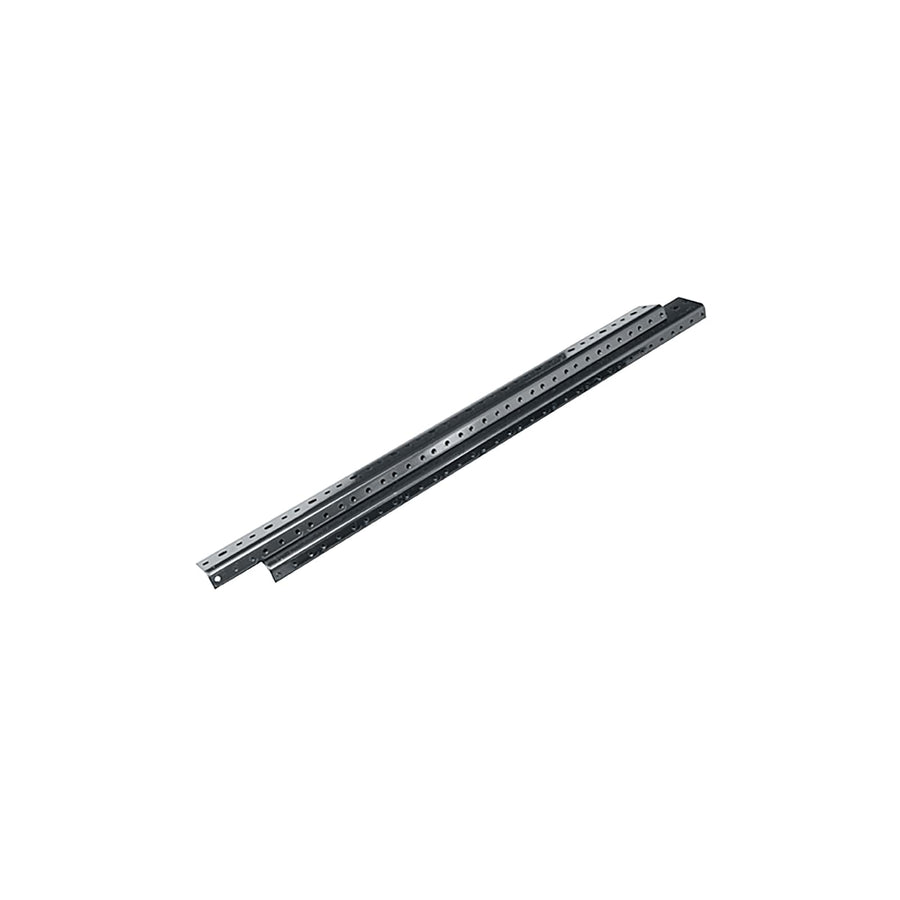

37 RU Rackrail 10-32 for Slim 5 Series
Extra rack rail for 37 RU Slim 5 Racks, providing 30 RU of additional mounting space
The Middle Atlantic 5AR37 is an extra rack rail designed specifically for use with 37 RU Slim 5 Series Racks. This steel rail provides 30 RU of additional mounting space to expand your system's capacity. The rail features an adjustable, split design, which allows for both mid-hanging and rear-hanging support depending on your specific installation requirements. This 62.44 in (158.6 cm) tall rail has a 20 in (50.8 cm) depth and a 0.68 in (1.7 cm) width, finished in a Black E-Coat. It is compatible with all Slim 5 series side panels. Please note that if you are using this with ganged racks, a cable chase kit is required for proper management.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
| Depth | 20 in (50.8 cm) |
| Height | 62.44 in (158.6 cm) |
| Rack Units | 30 RU |
| Shipping Weight | 14 lbs (6.4 kg) |
| Usable Height | 64.75 in (164.5 cm) |
| Width | 0.68 in (1.7 cm) |
| Base Series | Slim 5 |
| Finish | Black E-Coat |
| Material | Steel |
| Rack Rail Type | 10-32 |
| UPC | 656747001239 |
You'll need these with it
1 RU Brush Grommet Panel
BR1$86.40
1 RU Select Series UPS Backup Power, 1000VA
UPS-S1000R$1,377.00
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection - 9 ft Cord
PD-915R$223.20
NEXSYS™ 9 Outlet, 15 Amp Rackmount Power with Series Surge Protection
PDX-915R-SP$907.20
NEXSYS™ 9 Outlet, 20 Amp Rackmount Power with Series Surge Protection
PDX-920R-SP$1,108.80
NEXSYS™ 2 Outlet, 15 Amp Compact Power with Multi-Stage Surge Protection
PDX-215C$262.80
Select Series PDU with RackLink™, 9 Outlet
RLNK-915R$715.50
Compact Premium+ PDU With RackLink™, 4 Outlet 15A & 2-Stage Surge
RLNK-P415$1,360.80
2 RU Select Series UPS Backup Power, 2200VA
UPS-S2200R$1,935.00
Questions about this part
Will the 5AR37 fit in my Slim 5 Series rack?
The 5AR37 is designed specifically for use with 37 RU Slim 5 Series Racks to provide an additional 30 RU of mounting space.
What is the mounting type for this rack rail?
This is a 10-32 rack rail type that utilizes an adjustable, split design to facilitate either mid-hanging or rear-hanging support.
Do I need extra accessories when using ganged racks with this rail?
Yes, a cable chase kit is required when this rail is used in a ganged rack configuration.
What is the difference between this and the other Slim 5 series rails?
The 5AR37 is a specific 30 RU capacity rail designed for the 37 RU rack version within the Slim 5 Series.
Is this product TAA compliant?
Yes, the 5AR37 is TAA compliant.
