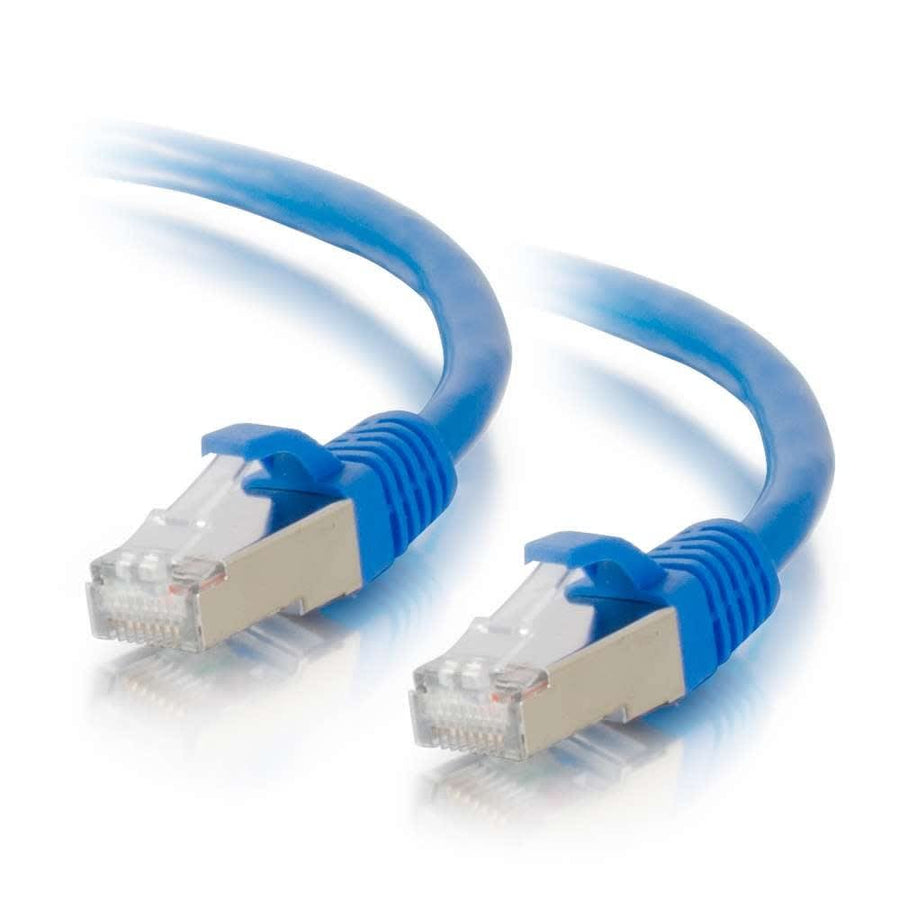

35ft (10.7m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Blue
35ft (10.7m) Cat6a Snagless Shielded STP Ethernet Patch Cable in Blue for 10GBase-T network applications
The C2G CG00688 is a 35ft (10.7m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable designed for high-speed 10GBase-T applications. This blue patch cable is engineered to protect sensitive network equipment, including hubs, switches, routers, and DSL/cable modems, from electromagnetic interference and noise. Each cable is constructed with 26AWG bare copper stranded conductors and utilizes FMPE (Foam Polyethylene) insulation to maintain performance. To reduce Near-End Crosstalk (NEXT), the individual wire pairs are bonded together, helping to maintain precise twist-spacing from the connector through the entire 35ft (10.7m) length. This cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements, ensuring it handles bandwidth-intensive voice, data, and video distribution. The assembly features snagless, booted RJ-45 male connectors with PVC hoods for added durability. For ease of deployment in organized environments, each cable includes an individual length label.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 35 ft (10.7 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.93 lbs (0.4 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 26 |
| Cable Shielding | Shielded STP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120006886 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
35ft (10.7m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Black
CG00722$58.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
Will the C2G CG00688 work with 10Gbase-T equipment?
Yes, this Cat6a patch cable is designed for use with 10GBase-T ports and high-bandwidth equipment like network adapters and switches.
What is the difference between the CG00688 and the CG00722?
The CG00688 is the blue version, whereas the CG00722 is the same 35ft (10.7m) Cat6a Snagless Shielded STP cable in black.
Is this cable rated for high-interference environments?
Yes, the shielded STP (SSTP) construction and bonded pairs are designed to reduce impedance and electromagnetic interference in high-speed networks.
What testing standards does this cable meet?
The C2G CG00688 is fully tested to comply with ANSI/TIA 568 C.2 Cat6a component requirements.
What is the operating temperature range for this patch cable?
The cable is rated for operation in temperatures ranging from -4°F (-20°C) to 176°F (80°C).
