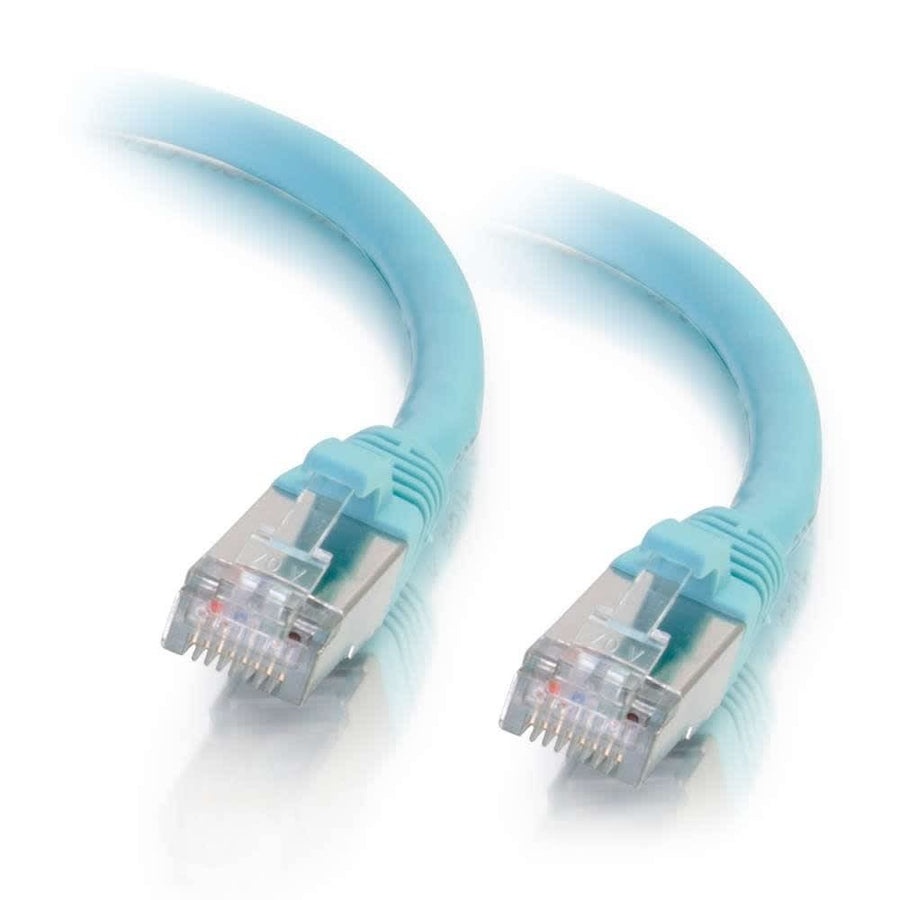

35ft (10.7m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Aqua
35ft (10.7m) Cat6a Snagless Shielded STP Ethernet Patch Cable, Aqua finish, 26AWG stranded copper conductor
The C2G CG00756 is a 35ft (10.7m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable in Aqua, engineered to support bandwidth-intensive 10GBase-T applications. This cable is designed for use with high-speed networking equipment, including switches, routers, hubs, network adapters, patch panels, and DSL/cable modems. By utilizing Shielded STP (SSTP) construction, it protects high-speed 10 Gigabit network connections from electromagnetic interference (EMI) and external noise. Built with 26AWG stranded copper conductors and FMPE (Foam Polyethylene) insulation, this cable minimizes Near-End Crosstalk (NEXT) and reduces both impedance and structural return loss (SRL). Each individual pair is bonded together to maintain consistent twist-spacing through to the termination point. The cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements, ensuring reliable performance in professional installations. Featuring snagless, booted RJ-45 male connectors, this Aqua cable is an ideal solution for color-coded network management in complex environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 35 ft (10.7 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.93 lbs (0.4 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 26 |
| Cable Shielding | Shielded STP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
| Color | Aqua |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120007562 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
35ft (10.7m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Black
CG00722$58.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
What applications is the C2G CG00756 suitable for?
This Cat6a patch cable is designed for bandwidth-intensive 10GBase-T applications, including connections for switches, routers, hubs, and network adapters.
Does this cable provide protection against interference?
Yes, the Shielded STP (SSTP) design helps protect 10 Gigabit network connections from electromagnetic interference and noise.
What is the wiring scheme for this patch cable?
The CG00756 utilizes a 568B wiring scheme for its RJ-45 terminations.
What is the maximum operating temperature for this cable?
This cable is rated for operating temperatures between -4°F (-20°C) and 176°F (80°C).
Is the C2G CG00756 tested to industry standards?
Yes, this cable is fully tested to meet the ANSI/TIA 568 C.2 Cat6a component requirements.
