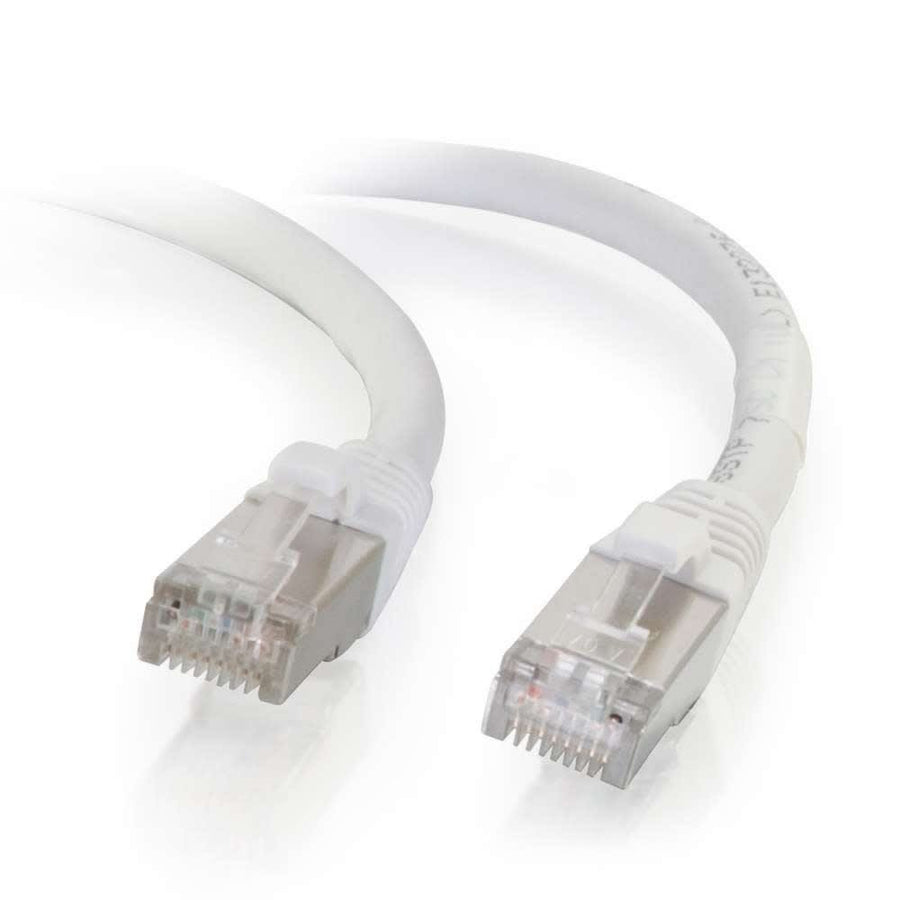

35ft (10.7m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - White
35ft (10.7m) shielded Cat6 patch cable, White, featuring snagless boots and T568B wiring
The CG00930 is a 35 ft (10.7 m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable in white. This cable is designed to protect high-speed networks from electromagnetic interference (EMI) and noise through its shielded STP construction. It is specifically built for voice, data, and video distribution, capable of handling bandwidth-intensive applications by reducing impedance and structural return loss (SRL). Each individual pair is bonded together to maintain consistent twist-spacing up to the termination point, a design that helps minimize Near-End Crosstalk (NEXT) levels. The cable utilizes 26AWG bare copper stranded conductors and is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements. It features snagless, booted RJ-45 male connectors with PVC hoods for added protection. For installation and identification, each cable is marked with an individual length label.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 35 ft (10.7 m) |
| Shield Type | STP |
| Shipping Weight | 1.01 lbs (0.5 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120009306 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
35ft (10.7m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Black
CG00824$45.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
What is the maximum performance rating for the CG00930?
This cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements for high-speed data applications.
Will this cable work in environments with high electromagnetic interference?
Yes, the shielded STP (Screened Twisted Pair) design is engineered to reduce noise and electromagnetic interference (EMI) for stable data distribution.
Is this cable suitable for high-bandwidth video and voice applications?
The CG00930 is designed for voice, data, and video distribution, specifically helping to reduce structural return loss (SRL) and impedance.
What is the difference between this and the black version?
The CG00930 is the white version of this cable; for a black variant, see SKU CG00824.
What wiring standard is used in this patch cable?
This patch cable follows the T568B wiring scheme for standardized network connectivity.
