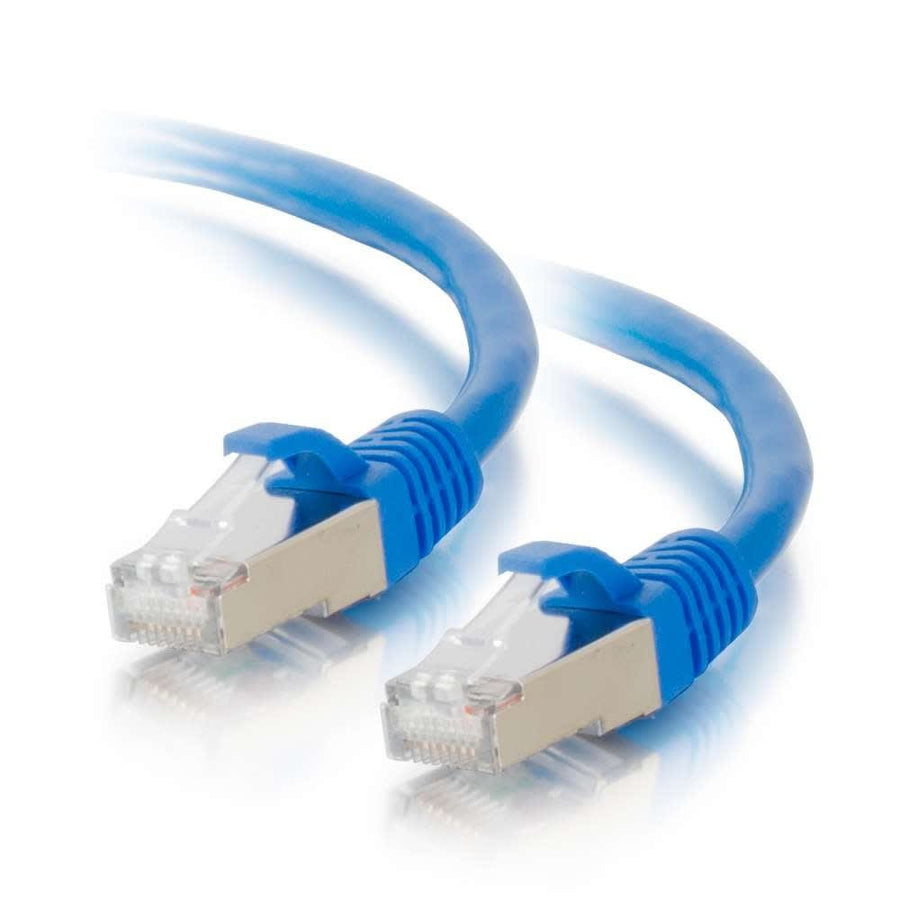

35ft (10.7m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Blue
35ft (10.7m) Cat6 STP snagless shielded patch cable in blue, featuring stranded copper conductors and T568B wiring.
The C2G CG00807 is a 35ft (10.7m) Cat6 shielded STP Ethernet network patch cable designed to protect high-speed data transmissions from electromagnetic interference and noise. This blue cable is ideal for voice, data, and video distribution where bandwidth-intensive applications require high performance. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements, ensuring reliable connectivity for professional installations. The construction features 26AWG bare copper stranded conductors with FM-PE insulation to maintain structural integrity. By bonding individual pairs together, the cable helps maintain consistent twist-spacing through the termination point, which effectively minimizes Near-End Crosstalk (NEXT) levels and reduces both impedance and structural return loss (SRL). Each cable includes a snagless, booted RJ-45 male connector to prevent accidental disconnects and is color-coded blue for easy identification within a network rack or deployment. This SKU is part of a larger series, with a black version available as SKU CG00824.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 35 ft (10.7 m) |
| Shield Type | STP |
| Shipping Weight | 1.02 lbs (0.5 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120008071 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
35ft (10.7m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Black
CG00824$45.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
Yes, the C2G CG00807 is designed for bandwidth-intensive applications and is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements.
Yes, the C2G CG00807 is designed for bandwidth-intensive applications and is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements.
What is the difference between the CG00807 and the CG00824?
The CG00807 is the blue version of this 35ft shielded cable, while the CG00824 is the same specification in a black finish.
What shielding and construction does this patch cable use?
This is a Stranded SSTP cable using 26AWG (7/0.16) bare copper conductors and FM-PE insulation to minimize Near-End Crosstalk (NEXT).
Does this cable include snagless protection?
Yes, this model features a snagless, booted RJ-45 male connector to protect the termination and prevent accidental disconnection.
Is this cable TAA compliant?
No, this specific SKU is not listed as TAA compliant, though it is RoHS and REACH compliant.
