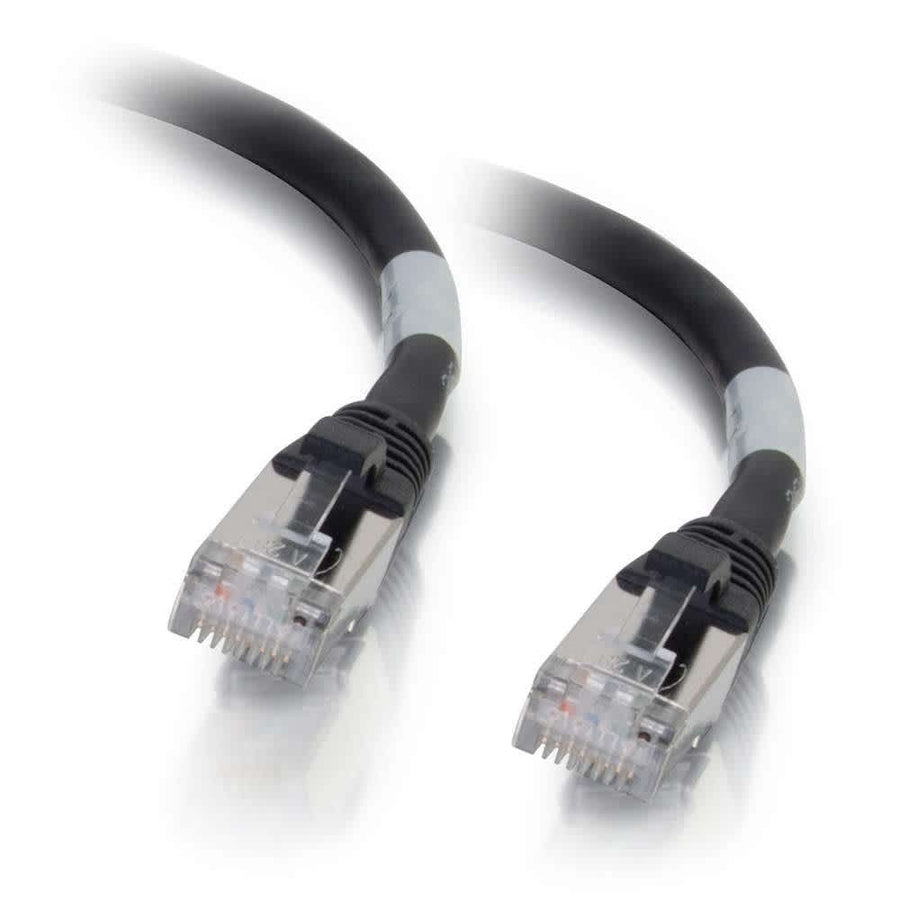

30ft (9.1m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Black
Shielded Cat6a patch cable, 30 ft (9.1 m) length, featuring snagless boots and 26AWG stranded copper conductors
The C2G CG00721 is a 30ft (9.1m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable designed for high-speed 10GBase-T environments. This black patch cable is built to protect network connections from electromagnetic interference and noise, making it suitable for use with 10 Gigabit equipment including network adapters, switches, routers, hubs, and patch panels. It utilizes stranded copper conductors with 26AWG (7/0.16) sizing to handle bandwidth-intensive applications while reducing impedance and structural return loss (SRL). This cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements, ensuring reliable performance for voice, data, and video distribution. To minimize Near-End Crosstalk (NEXT) levels, each individual pair is bonded together to maintain consistent twist-spacing throughout the line up to the termination point. The construction includes PVC jacket material and FMPE (Foam Polyethylene) insulation, with a 1.95 in (49.6 mm) bend radius. This SKU features a snagless, booted connector type for ease of installation in dense environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 30 ft (9.1 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 943.36 lbs (427.9 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 26 |
| Cable Shielding | Shielded STP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120007210 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
30ft (9.1m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Blue
CG00687$43.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
Will this Cat6a cable support 10 Gigabit speeds?
Yes, this cable is designed for 10GBase-T ports and equipment, providing the necessary bandwidth for high-speed 10 Gigabit network connections.
What is the difference between the CG00721 and the CG00687?
The CG00721 is the black version of this 30ft Cat6a snagless shielded cable, while the CG00687 is the blue variant.
Can I use this cable in high-interference environments?
Yes, the shielded STP (SSTP) design is specifically built to protect your network from electromagnetic interference and noise in high-speed environments.
What tools are required for installation?
This is a patch cable with pre-terminated RJ-45 male connectors, requiring no specialized installation tools for connection to existing ports.
What is the minimum bend radius for this cable?
The cable has a minimum bend radius of 1.95 in (49.6 mm) to maintain signal integrity and prevent damage to the internal pairs.
