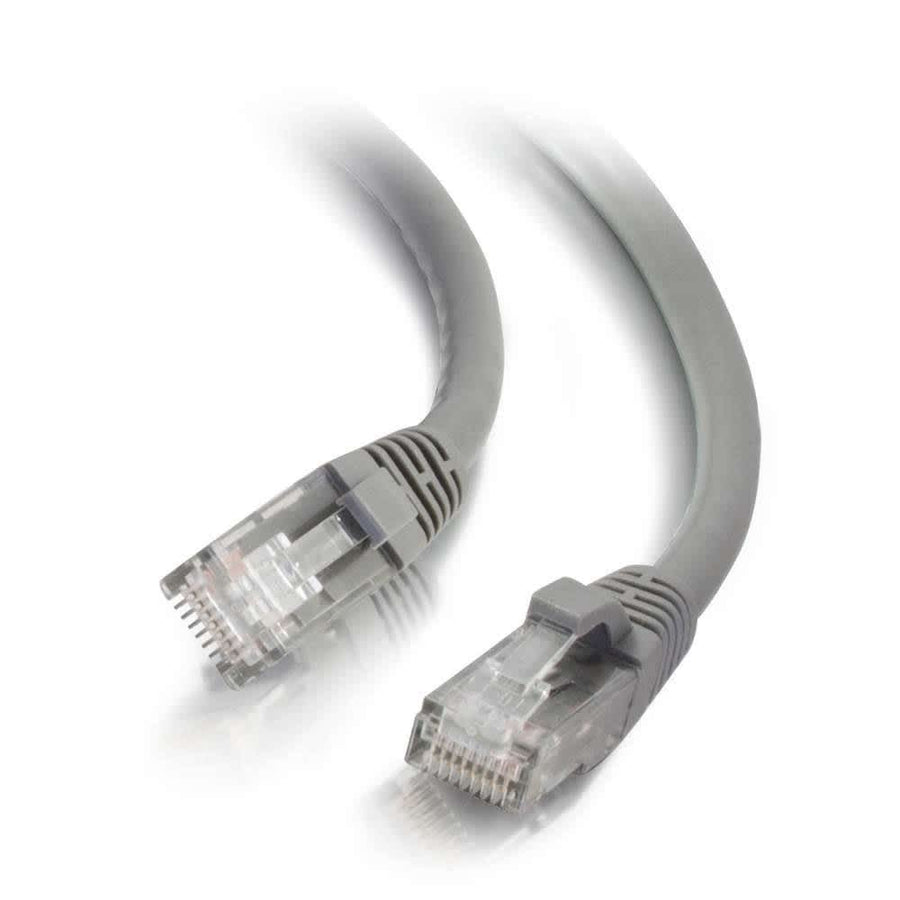

30ft (9.1m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Gray
30ft Cat6 snagless patch cable, unshielded UTP, gray, featuring copper stranded conductors for high-bandwidth networking
The C2G CG03972 is a 30ft (9.1m) Cat6 snagless unshielded UTP Ethernet network patch cable designed for bandwidth-intensive voice, data, or video distribution. This gray cable is built for fast Ethernet and Gigabit computer networks, meeting all Cat6 TIA/EIA standards. Each individual pair is bonded together to maintain twist-spacing right up to the termination point, which drastically reduces impedance and structural return loss (SRL). The copper stranded conductors are used to minimize Near-End Crosstalk (NEXT) levels. To protect the hardware during installation and frequent movement, the cable features a molded snagless boot made of PVC that prevents the RJ-45 clips from snagging. This cable utilizes a T568B wiring scheme and features two RJ-45 male connectors. This specific SKU is part of the Cat6 Snagless Patch Cable series, which is available in a variety of colors to facilitate network color-coding.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 30 ft (9.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.82 lbs (0.4 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120039723 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
