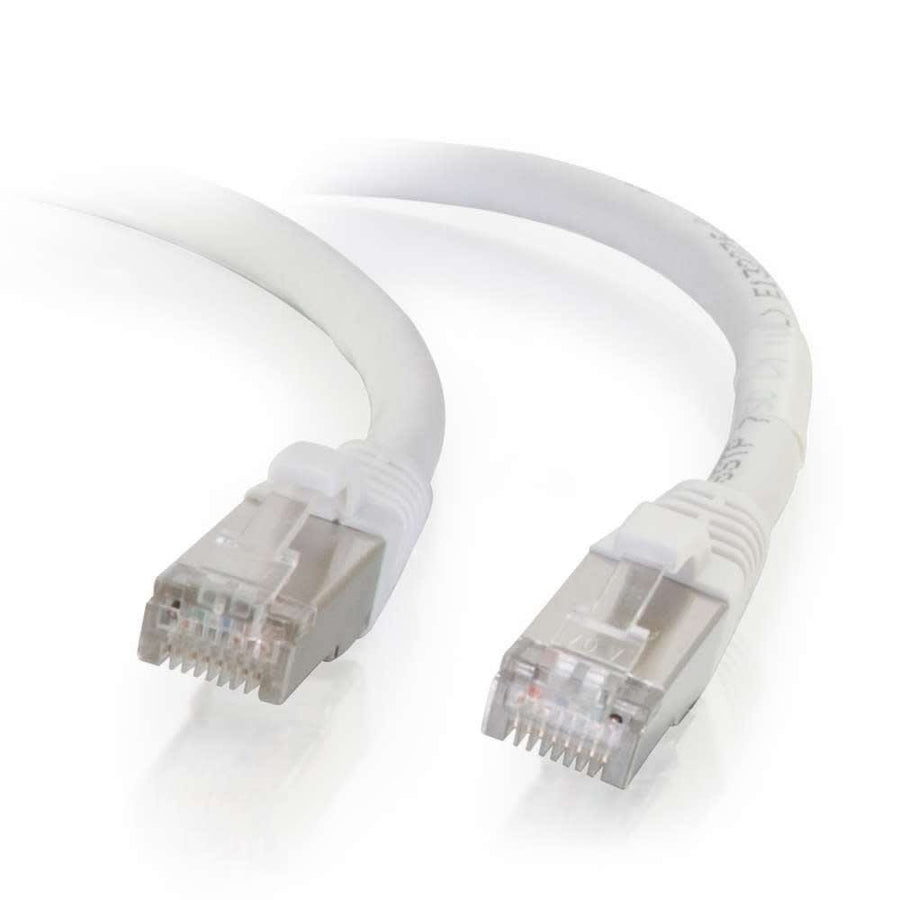

30ft (9.1m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - White
30ft (9.1m) Cat6 shielded STP Ethernet patch cable with snagless boots and white PVC jacket
The C2G CG00929 is a 30ft (9.1m) Cat6 shielded STP Ethernet network patch cable designed to protect high-speed networks from noise and electromagnetic interference. This cable is engineered for bandwidth-intensive voice, data, and video distribution applications, significantly reducing impedance and structural return loss (SRL). Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements. The construction features 26AWG bare copper stranded conductors with FM-PE insulation. To minimize Near-End Crosstalk (NEXT), each individual pair is bonded together, maintaining consistent twist-spacing through to the termination point. This specific SKU features a white PVC jacket and snagless, booted RJ-45 male connectors on both ends. It utilizes a T568B wiring scheme and is rated for temperatures up to 75°C. For easy identification in complex installations, each cable includes an individual length label.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 30 ft (9.1 m) |
| Shield Type | STP |
| Shipping Weight | 0.87 lbs (0.4 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120009290 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
30ft (9.1m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Black
CG00823$41.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
Is the C2G CG00929 TAA compliant?
No, this specific SKU is not TAA compliant.
What wiring scheme does this Cat6 cable use?
The CG00929 uses the T568B wiring scheme for all connections.
Can I find this cable in a different color?
Yes, a black version is available under SKU CG00823.
What is the maximum operating temperature for this cable?
This cable is rated for operation in temperatures up to 75°C.
Which testing standards is this patch cable compliant with?
This cable is ANSI/TIA 568 C.2 Cat6 component tested.
