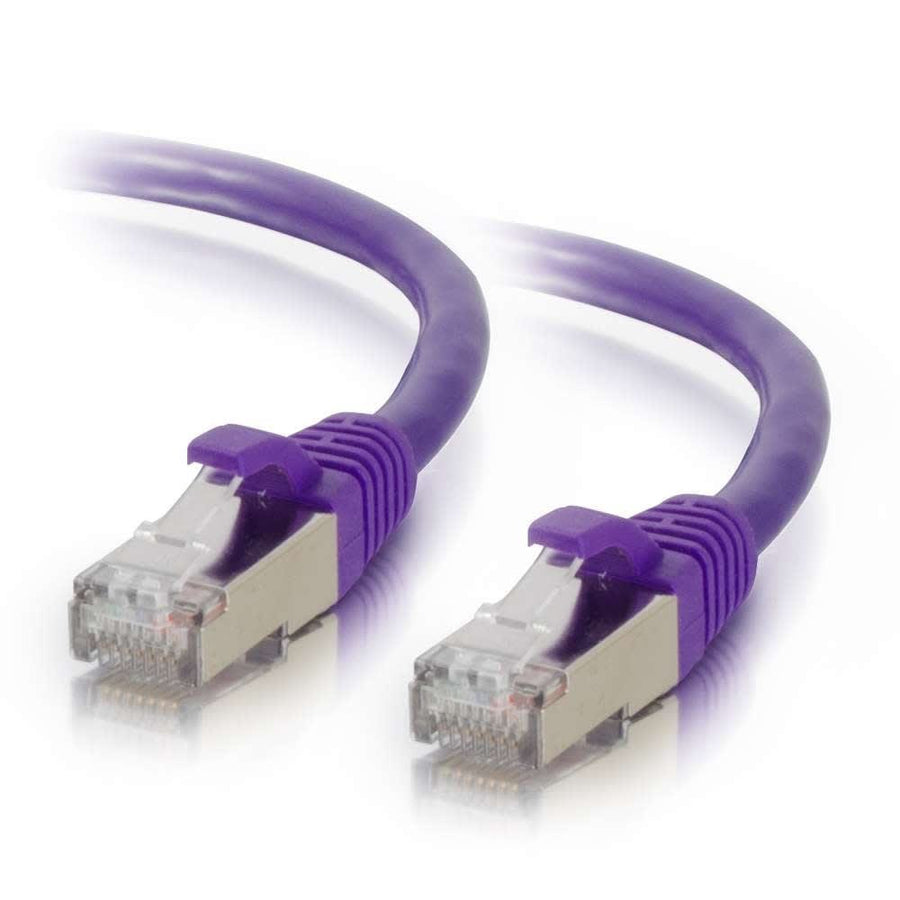

30ft (9.1m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Purple
30ft (9.1m) Cat6 shielded STP patch cable in purple, featuring snagless boots and stranded copper conductors
The C2G CG00912 is a 30ft (9.1m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable designed to protect high-speed networks from electromagnetic interference and noise. This purple patch cable utilizes stranded copper conductors with a 26AWG (7/0.16) gauge and FM-PE insulation to support bandwidth-intensive voice, data, and video distribution. By binding individual pairs together, the design maintains twist-spacing through the termination point to minimize Near-End Crosstalk (NEXT) levels, while reducing impedance and structural return loss (SRL). Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements. The cable features a T568B wiring scheme and is housed in a PVC jacket with a 0.24 in (6.2 mm) diameter. For easy identification in complex installations, this cable includes an individual length label. The hooded, snagless RJ-45 male connectors are designed for reliable connectivity in dense environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 30 ft (9.1 m) |
| Shield Type | STP |
| Shipping Weight | 0.87 lbs (0.4 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120009122 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
30ft (9.1m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Black
CG00823$41.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
What is the wiring scheme for the C2G CG00912?
This Cat6 patch cable follows the T568B wiring scheme.
Is this cable suitable for high-interference environments?
Yes, the STP (Shielded Twisted Pair) construction helps protect your network from noise and electromagnetic interference.
What is the diameter of the CG00912 cable?
The cable has a diameter of 0.24 in (6.2 mm).
Are there other colors available for this Cat6 series?
Yes, this series includes other colors such as Black (SKU: CG00823) to assist with network color-coding.
What testing certifications does this patch cable meet?
Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements.
