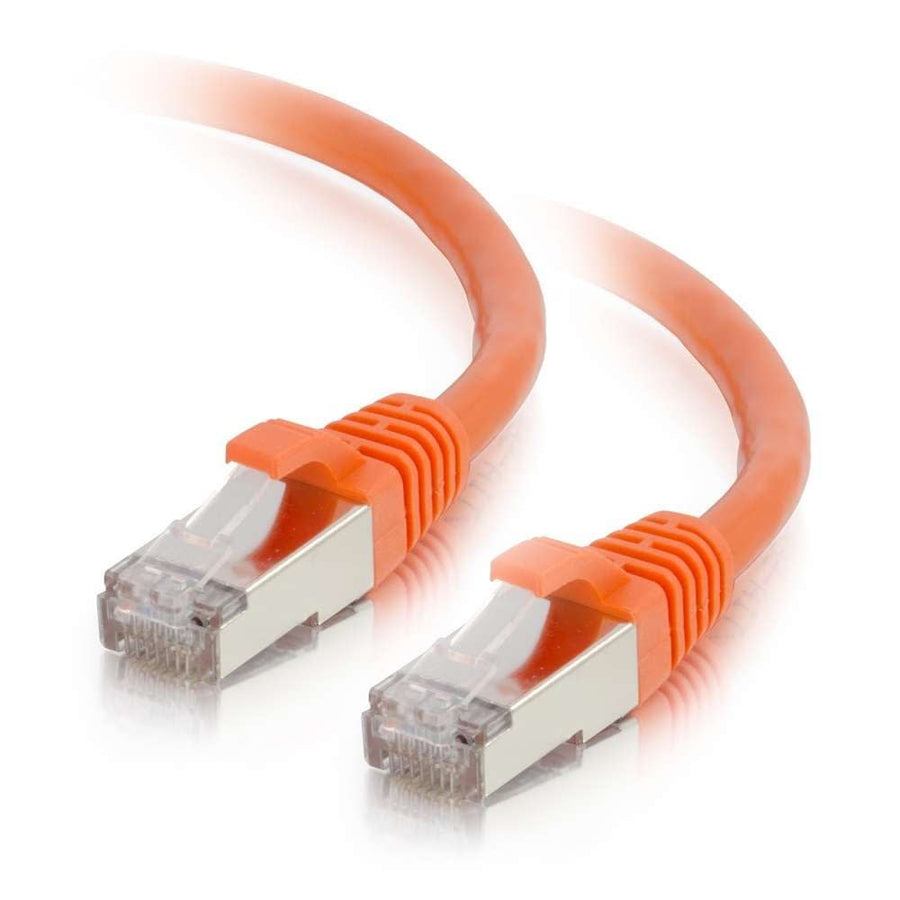

30ft (9.1m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Orange
30ft (9.1m) Cat6 shielded STP patch cable, orange, with snagless boots and T568B wiring
The C2G CG00895 is a 30 ft (9.1 m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable designed for high-speed data distribution. This orange cable is engineered to protect networks from noise and electromagnetic interference by utilizing a shielded (STP) design. It is constructed with 26AWG bare copper stranded conductors and FM-PE insulation to handle bandwidth-intensive voice, data, and video applications. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements, helping to reduce impedance and structural return loss (SRL). To minimize Near-End Crosstalk (NEXT), individual pairs are bonded together to maintain twist-spacing up to the termination point. This cable features PVC jacket material and PVC connector hoods with snagless, booted RJ-45 male connectors. For easier network management, each cable includes an individual length label. This SKU is part of a larger series available in various colors and lengths, including the black version SKU CG00823.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 30 ft (9.1 m) |
| Shield Type | STP |
| Shipping Weight | 0.83 lbs (0.4 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120008958 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
30ft (9.1m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Black
CG00823$41.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
What is the wiring scheme for the C2G CG00895?
This 30 ft (9.1 m) patch cable uses the T568B wiring scheme.
Is this Cat6 cable suitable for high-interference environments?
Yes, the shielded (STP) design and bonded individual pairs help protect high-speed networks from noise and electromagnetic interference.
What is the difference between CG00895 and CG00823?
The CG00895 is the orange version of this 30 ft shielded Cat6 cable, while the CG00823 is the black version.
What tools are required for installation?
No specialized installation tools are required as these are pre-terminated patch cables with RJ-45 male connectors.
Does this cable meet specific industry standards?
Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements.
