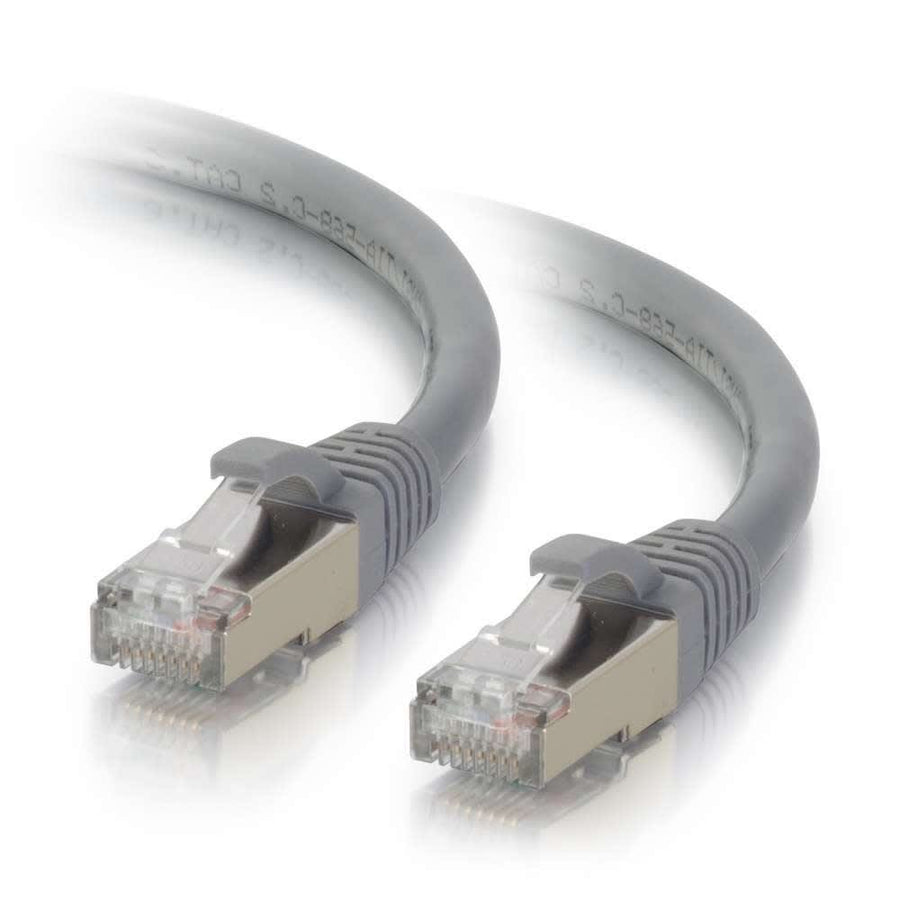

30ft (9.1m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Gray
30ft Cat6 shielded STP patch cable, gray, with snagless boots and T568B wiring for high-speed, noise-resistant network connections
The C2G CG00789 is a 30ft (9.1m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable designed for high-speed data, voice, and video distribution. This cable is specifically engineered to protect high-speed networks from electromagnetic interference and noise. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements, ensuring reliable performance for bandwidth-intensive applications. The design minimizes Near-End Crosstalk (NEXT) levels by using high-quality conductors and plugs. To maintain signal integrity, individual pairs are bonded together, which helps preserve the required twist-spacing throughout the entire line up to the termination point. This gray patch cable features 26AWG stranded bare copper conductors and a PVC jacket with a 0.24 in (6.2 mm) diameter. It uses a T568B wiring scheme and is equipped with snagless, booted RJ-45 male connectors for secure, easy-to-handle connections. Each cable includes an individual length label for identification during installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 30 ft (9.1 m) |
| Shield Type | STP |
| Shipping Weight | 0.87 lbs (0.4 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120007890 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
30ft (9.1m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Blue
CG00806$41.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
What is the wiring scheme for the C2G CG00789?
This 30ft Cat6 patch cable uses the T568B wiring scheme for all terminations.
Will the CG00789 work in high-interference environments?
Yes, this is a Shielded (STP) cable designed to reduce impedance, structural return loss (SRL), and Near-End Crosstalk (NEXT) in high-speed networks.
Is this cable TAA compliant?
No, the CG00789 is not TAA compliant, but it carries CE, REACH, and RoHS certifications.
What is the conductor type and gauge for this cable?
The cable features 26AWG (7/0.16) stranded bare copper conductors.
What other C2G cables are available in different colors?
The CG00806 is the 30ft (9.1m) Snagless Shielded STP version in Blue.
