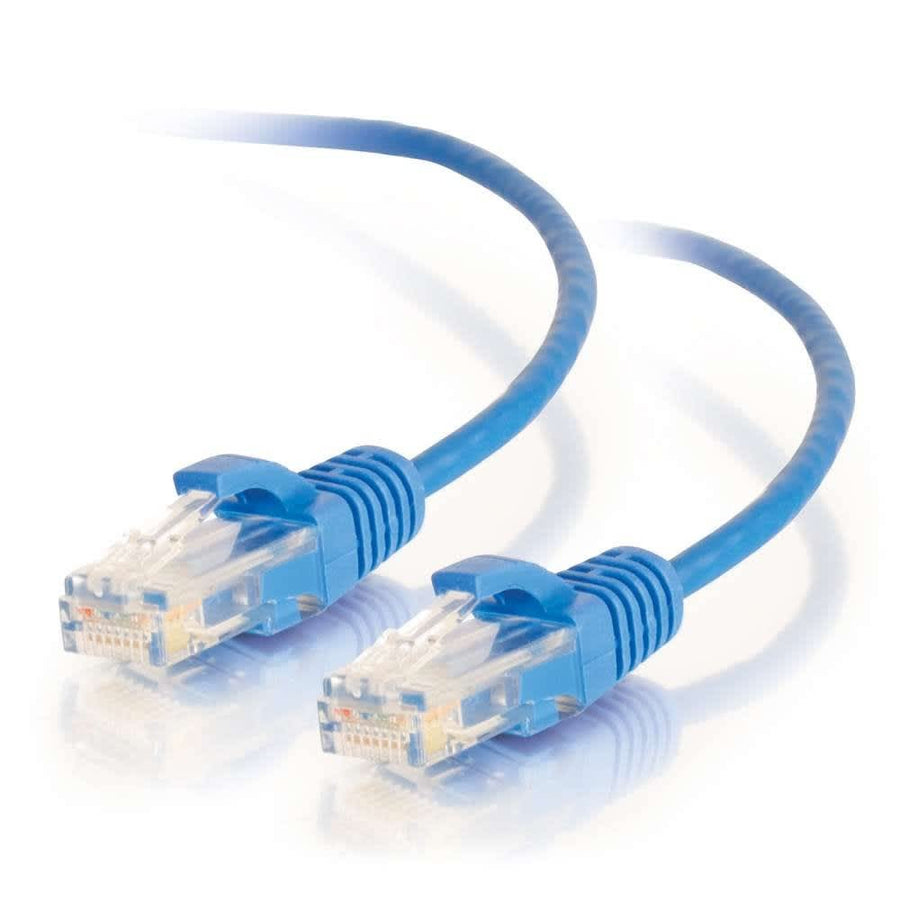

2ft (0.6m) Cat6 Snagless Unshielded UTP Slim Ethernet Network Patch Cable - Blue
Blue 2ft Cat6 slim patch cable with 28 AWG conductors for high-density environments and improved airflow
The CG01074 is a 2ft (0.6m) Blue Cat6 Snagless Unshielded UTP Slim Ethernet Network Patch Cable designed specifically for high-density datacenter applications. By utilizing 28 AWG copper conductors, this cable achieves a 36% reduction in diameter compared to standard Cat6 patch cables. This slim profile, measuring 0.15 in (3.8 mm) in diameter, minimizes the cable surface area to facilitate increased airflow within crowded racks and enclosures. The reduced bend radius allows for easier routing through high-density cable management panels. This cable is engineered for fast Ethernet networks requiring bandwidth-intensive data, voice, or video distribution, supporting a 500 mHz bandwidth. The molded, snagless PVC boot provides strain relief and protects against snags during installation. For PoE/PoE+ applications, it is recommended to limit bundles to 40 cables to manage heat dissipation. This cable uses a T568B wiring scheme and is constructed with stranded copper to minimize Near-End Crosstalk (NEXT).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Cable Diameter | 0.15 in (3.8 mm) |
| Cable Length | 2 ft (0.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.05 lbs (0 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 28 |
All other specifications 17
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120010746 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it

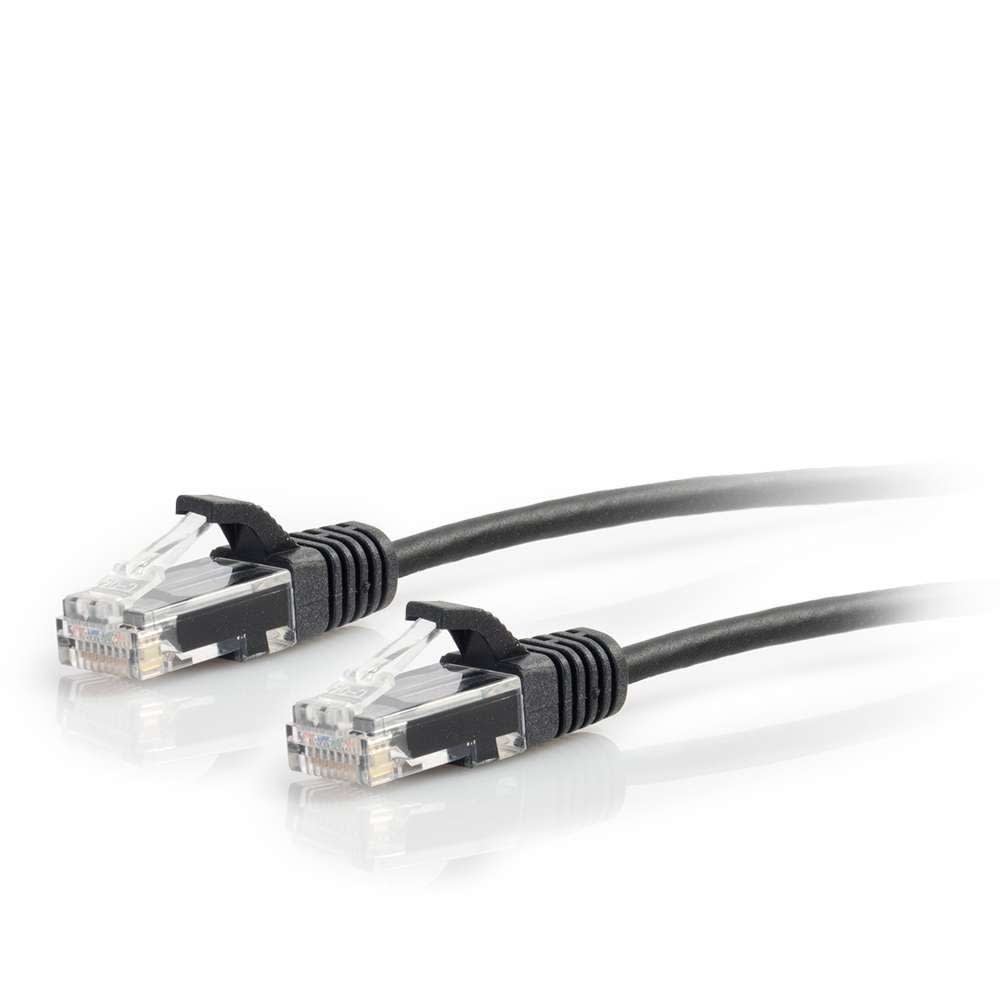

2ft (0.6m) Cat6 Snagless Unshielded UTP Slim Ethernet Network Patch Cable - Black
CG01100$7.99
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Questions about this part
Is the CG01074 suitable for PoE/PoE+ applications?
Yes, but for PoE/PoE+ applications, it is recommended to limit cable bundles to 40 units to manage the heat dissipation of the 28 AWG reduced diameter conductors.
What are the channel length limitations for this slim Cat6 cable?
For a 96 Meter Channel, you can use up to 6 meters of these slim patch cables with 90 meters of horizontal cable. For a 93 Meter Channel, you can use up to 10 meters of these cables with 83 meters of horizontal cable.
How does this cable differ from standard Cat6 patch cables?
The CG01074 uses 28 AWG conductors which provides a 36% reduction in diameter and a smaller bend radius, allowing for better airflow and easier routing in management panels.
Can I use this cable with a 48-port patch panel?
Yes, this cable is compatible with various hardware including the Cat6 48-Port Rack Mount Patch Panel (SKU 48845CC6).
Which technical standards does this cable meet?
This cable complies with the latest ANSI/TIA-568 standard and is rated for 500 mHz bandwidth.
