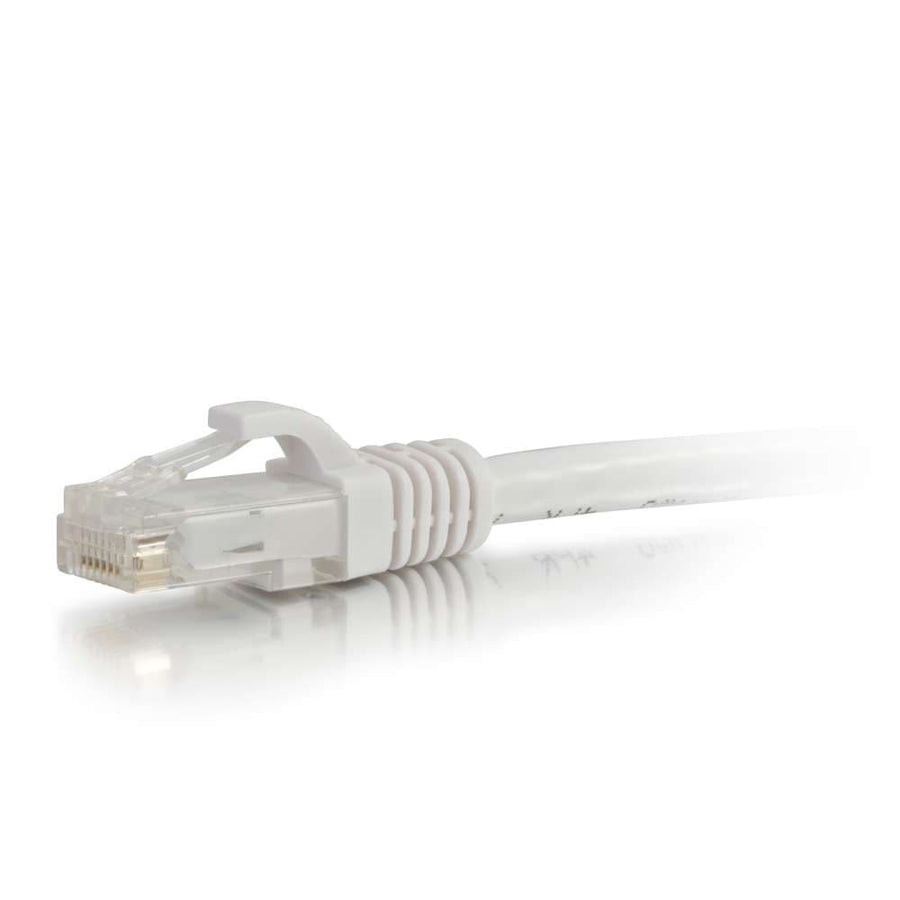

2ft (0.6m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - White
2ft White Cat6 snagless UTP patch cable for high-bandwidth Gigabit network environments
The C2G CG04034 is a 2ft (0.6m) Cat6 unshielded twisted pair (UTP) Ethernet network patch cable designed for bandwidth-intensive voice, data, or video distribution applications. This white cable utilizes high-quality stranded copper conductors and a 24 AWG wire gauge to help minimize Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to maintain twist-spacing throughout the line up to the termination point, which helps reduce impedance and structural return loss (SRL). The cable features a snagless, booted connector design with PVC hoods to protect the RJ45 clips from damage during installation and provides added strain relief. These standard RJ45 male-to-male cables are ideal for fast Ethernet and Gigabit computer networks. This SKU belongs to a series that offers various colors and lengths up to 150ft to support color-coded network organization.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 2 ft (0.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.07 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120040347 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
2ft (0.6m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Black
CG03981$5.99
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Questions about this part
What is the maximum length for this Cat6 cable series?
The Cat6 Snagless Patch Cable series is available in various lengths reaching up to 150ft.
What are the electrical characteristics for the CG04034?
This cable features a 100 ohm impedance and a conductor DC resistance of 9.38 ohms at 100m maximum.
Is the CG04034 suitable for Gigabit networks?
Yes, this Cat6 cable is designed for high-bandwidth applications including Gigabit computer networks.
What is the connector type on this patch cable?
The CG04034 is equipped with two RJ45 male connectors featuring a snagless, booted design.
Does this cable support color-coding for network organization?
Yes, this white cable is part of a series available in 10 different colors for easy identification.
