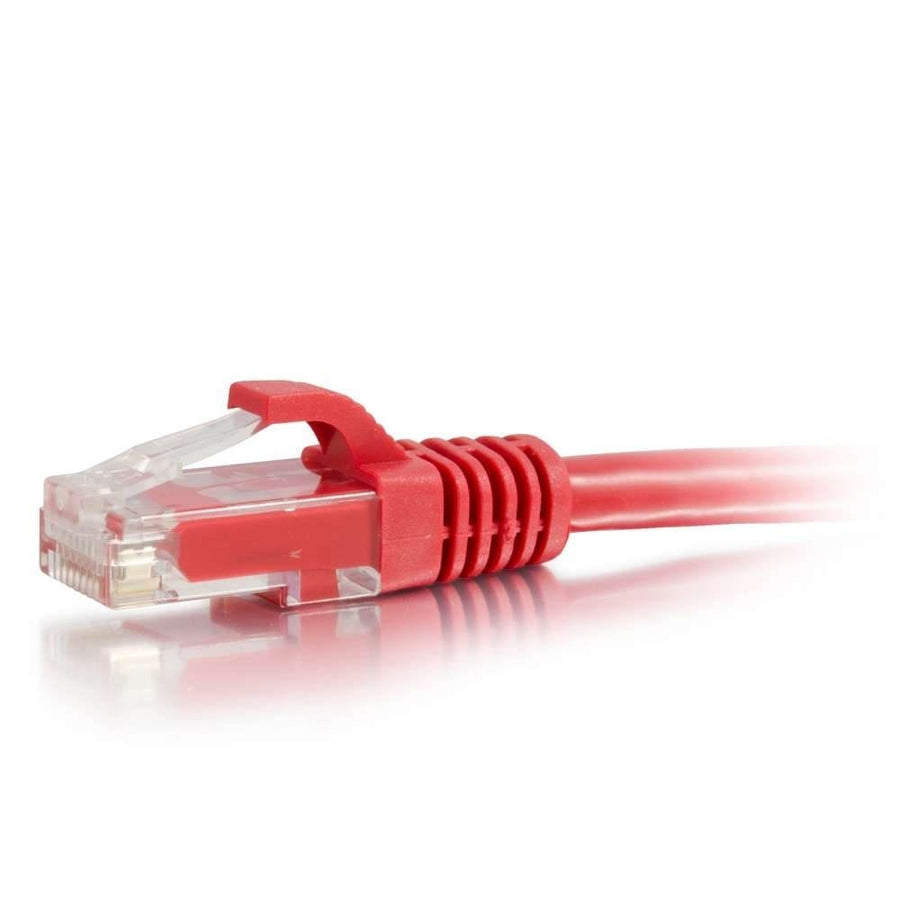

2ft (0.6m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Red
Red 2ft Cat6 Snagless Unshielded UTP Ethernet Patch Cable for high-bandwidth voice, data, or video distribution applications
The C2G CG03998 is a 2ft (0.6m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable finished in red. Designed for fast Ethernet and Gigabit computer networks, this cable is built for bandwidth-intensive voice, data, or video distribution applications. It meets all Cat6 TIA/EIA standards, significantly reducing structural return loss (SRL) and impedance. Each individual pair is bonded together to maintain consistent twist-spacing throughout the entire line, extending right up to the termination point. This construction, utilizing high-quality 24 AWG stranded copper conductors, is engineered to minimize Near-End Crosstalk (NEXT) levels. The molded, snagless boot provides extra strain relief and protects the RJ-45 clips from damage during installation or frequent plugging and unplugging. This red patch cable is part of a larger series available in various colors to assist with network color-coding.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 2 ft (0.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.08 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120039983 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
2ft (0.6m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Black
CG03981$5.99
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Questions about this part
What is the length and color of the CG03998 cable?
The CG03998 is a 2ft (0.6m) length cable with a red PVC jacket.
Does this cable support Gigabit networking?
Yes, this Cat6 cable is designed for fast Ethernet and Gigabit networks requiring high bandwidth for data or video.
How does the snagless boot work?
The molded snagless boot provides strain relief and prevents the RJ-45 clips from catching or breaking during installation.
What is the difference between this and the CG03981?
The CG03981 is the black version of this same 2ft Cat6 Snagless Unshielded UTP cable.
Which tools are required for installation?
No specialized tools are required for this patch cable, though RJ-45 compatible hardware like the 48-Port Rack Mount Patch Panel (48845CC6) is often used in similar setups.
