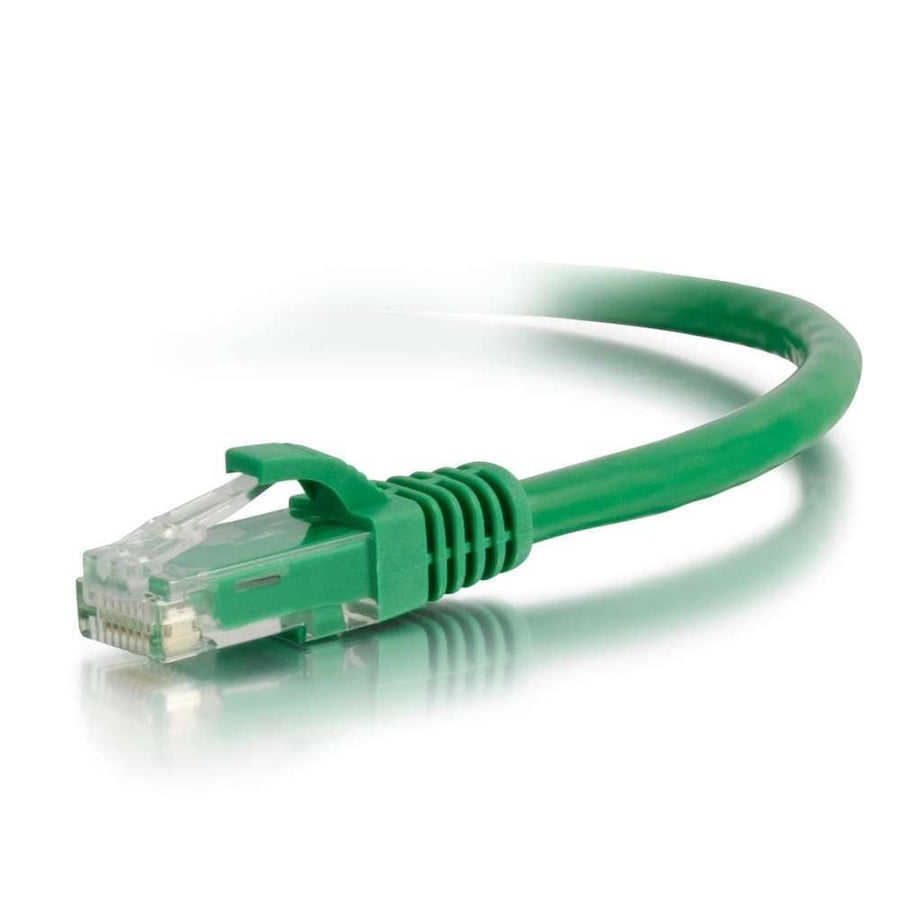

2ft (0.6m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Green
2ft green Cat6 snagless patch cable with unshielded UTP construction and RJ45 male connectors
The C2G CG03989 is a 2ft (0.6m) Cat6 snagless unshielded UTP Ethernet patch cable designed for bandwidth-intensive voice, data, or video distribution applications. This green cable is built for high-performance Gigabit computer networks, meeting all Cat6 TIA/EIA standards while reducing structural return loss (SRL) and impedance. The construction features stranded copper conductors and a 24 AWG wire gauge to minimize Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to maintain consistent twist-spacing throughout the line up to the termination point. This specific SKU features a snagless, booted connector design with PVC hoods to protect the clips during installation and provide additional strain relief. The unshielded (UTP) jacket is made of PVC and is rated as Standard / Non-Rated. This cable uses a T568B wiring scheme and is part of the C2G Cat6 Snagless Patch Cable Series, which is available in 10 colors and various lengths to support network color-coding requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 2 ft (0.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.07 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120039891 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
