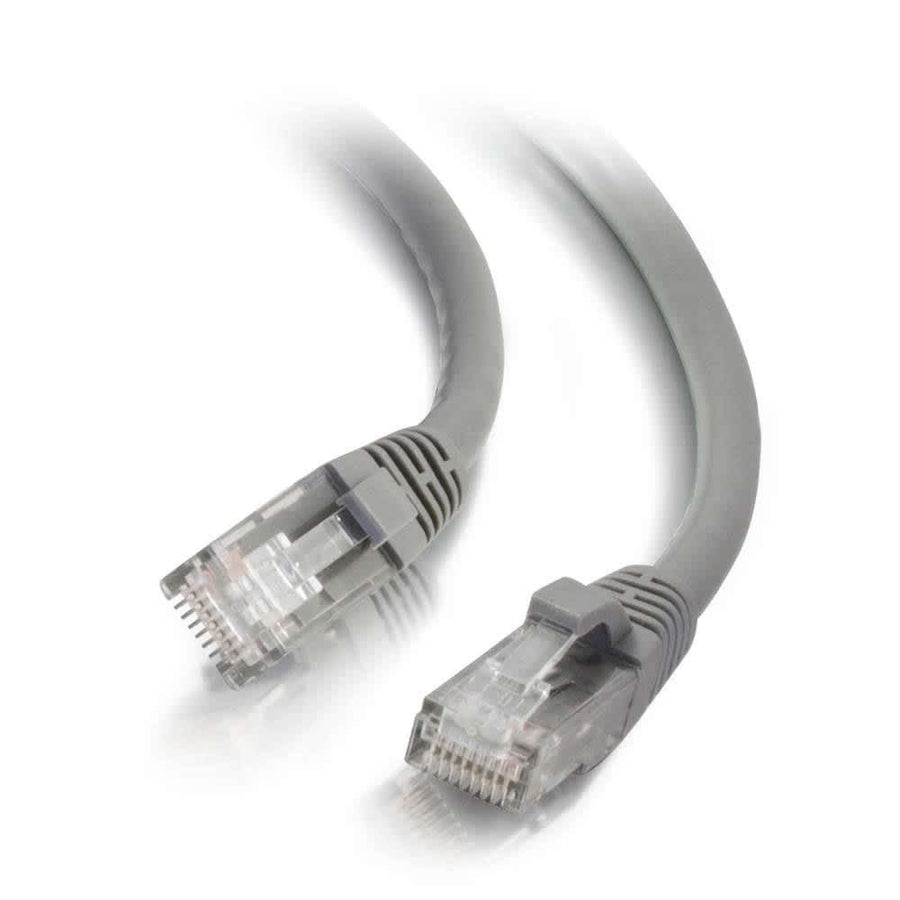

2ft (0.6m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Gray
2ft Cat6 Unshielded UTP Ethernet patch cable in Gray with snagless boots for strain relief
The C2G CG03965 is a 2ft (0.6m) Cat6 Unshielded UTP Ethernet patch cable designed for high-bandwidth applications including fast Ethernet, Gigabit computer networks, and voice, data, or video distribution. Built with high-quality copper stranded conductors, this cable minimizes Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to maintain twist-spacing through to the termination point, which reduces impedance and structural return loss (SRL) to meet all Cat6 TIA/EIA standards. This Gray cable features a 0.24 in (6.2 mm) diameter and utilizes a PVC jacket and connector hood material. The snagless, booted RJ-45 male connectors protect the clips from damage during repeated plugging and unplugging while providing necessary strain relief. It uses a T568B wiring scheme and is suitable for standard, non-rated installation environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 2 ft (0.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.07 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120039655 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
2ft (0.6m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Black
CG03981$5.99
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Questions about this part
What is the length and color of this C2G patch cable?
The CG03965 is a 2ft (0.6m) cable in a Gray finish, part of a series available in up to 150ft lengths.
Will this cable work for high-speed Gigabit networks?
Yes, this Cat6 cable meets TIA/EIA standards for bandwidth-intensive Gigabit applications and reduces structural return loss.
Does the snagless design help with installation?
Yes, the molded snagless boot protects the RJ-45 clips from being snapped off during installation and provides extra strain relief.
What is the wiring scheme for the CG03965?
This patch cable follows the T568B wiring scheme and features 24 AWG stranded copper conductors.
What other items are compatible with Cat6 installations?
This cable is suitable for use with Cat6 48-Port Rack Mount Patch Panels and Cat6 24-Port Rack Mount Patch Panels.
