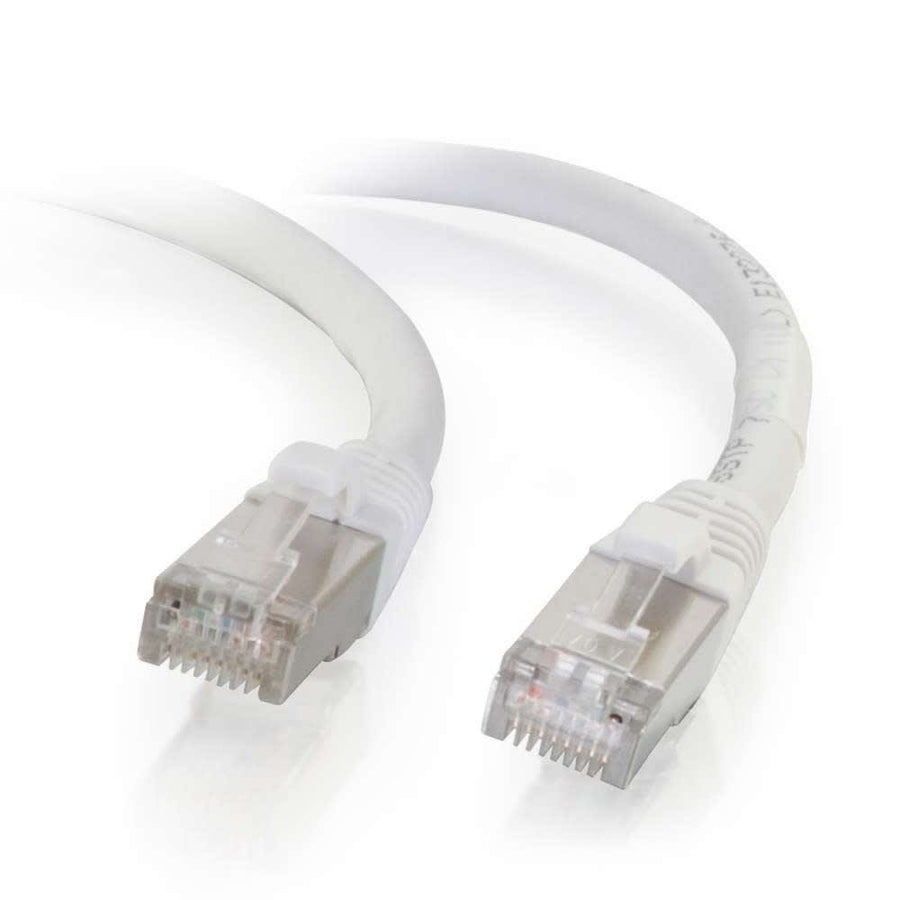

2ft (0.6m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - White
2ft Cat6 shielded STP patch cable in white with snagless boots and T568B wiring
The C2G CG00915 is a 2ft (0.6m) Cat6 shielded (STP) patch cable designed to protect high-speed networks from electromagnetic interference and noise. This white, snagless cable utilizes stranded copper conductors with a 26AWG (7/0.16) gauge and FM-PE insulation to maintain signal integrity. It is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements, making it suitable for bandwidth-intensive voice, data, and video distribution. Each individual pair is bonded together to maintain twist-spacing up to the termination point, which helps minimize Near-End Crosstalk (NEXT) levels and reduces impedance and structural return loss (SRL). The cable features a 0.24 in (6.2 mm) diameter and is constructed with a PVC jacket and PVC connector hoods. For easy identification in complex installations, each cable includes an individual length label. This SKU is part of a series that offers various colors, such as the CG00809 in black.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 2 ft (0.6 m) |
| Shield Type | STP |
| Shipping Weight | 0.04 lbs (0 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120009153 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
2ft (0.6m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Black
CG00809$9.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
The CG00915 is an ANSI/TIA 568 C.2 Cat6 component tested cable that minimizes Near-End Crosstalk (NEXT) and structural return loss (SRL) for high-speed distribution.
The CG00915 is an ANSI/TIA 568 C.2 Cat6 component tested cable that minimizes Near-End Crosstalk (NEXT) and structural return loss (SRL) for high-speed distribution.
What is the difference between this and the black version?
This SKU is the white version; the CG00809 is the black color option in the same series.
Does this cable include the necessary connectors?
Yes, this cable comes with two RJ-45 male connectors that feature snagless, booted PVC hoods.
What is the wiring configuration for this patch cable?
This 2ft (0.6m) cable uses the T568B wiring scheme and features 4-pair stranded copper conductors.
What certifications does this cable hold?
This product carries CE, REACH, and RoHS certifications and is NDAA 889 compliant.
