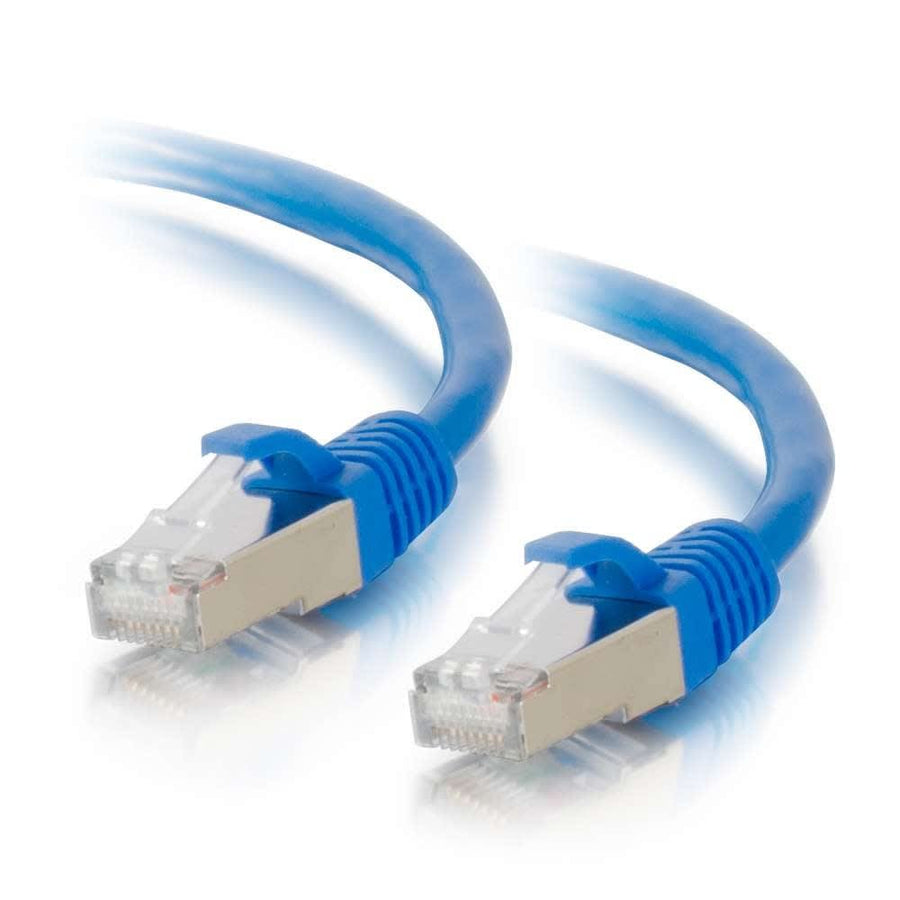

25ft (7.6m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Blue
25ft Blue Cat6a Snagless Shielded STP Ethernet Patch Cable for 10GBase-T high-speed network connections
The C2G CG00686 is a 25ft (7.6m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable designed to protect high-speed 10GBase-T network connections from electromagnetic interference and noise. This blue cable is ideal for use with network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements. To minimize Near-End Crosstalk (NEXT), the individual pairs are bonded together to maintain twist-spacing from the termination point to the end of the line. The cable features 26AWG stranded bare copper conductors with FMPE (Foam Polyethylene) insulation. The construction includes snagless, booted RJ-45 male connectors with PVC hoods to protect the release tabs. This SSTP cable supports bandwidth-intensive voice, data, and video distribution by reducing impedance and structural return loss (SRL). Each cable features an individual length label for easy identification during installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 25 ft (7.6 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.67 lbs (0.3 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 26 |
| Cable Shielding | Shielded STP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120006862 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
25ft (7.6m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Black
CG00720$39.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
What is the maximum operating temperature for the CG00686?
This cable is rated for operating temperatures between -4°F (-20°C) and 176°F (80°C).
Is this Cat6a cable suitable for 10 Gigabit networks?
Yes, it is designed for 10GBase-T ports and equipment to protect high-speed connections from noise.
What is the difference between this cable and the CG00720?
The CG00720 is the same 25ft Cat6a Snagless Shielded STP cable but in a black finish.
Does this cable meet TIA standards?
Yes, every cable is fully tested to meet the ANSI/TIA 568 C.2 Cat6a component requirements.
What is the cable diameter and bend radius?
The cable has a 0.24 in (6.2 mm) diameter and a minimum bend radius of 1.95 in (49.6 mm).
