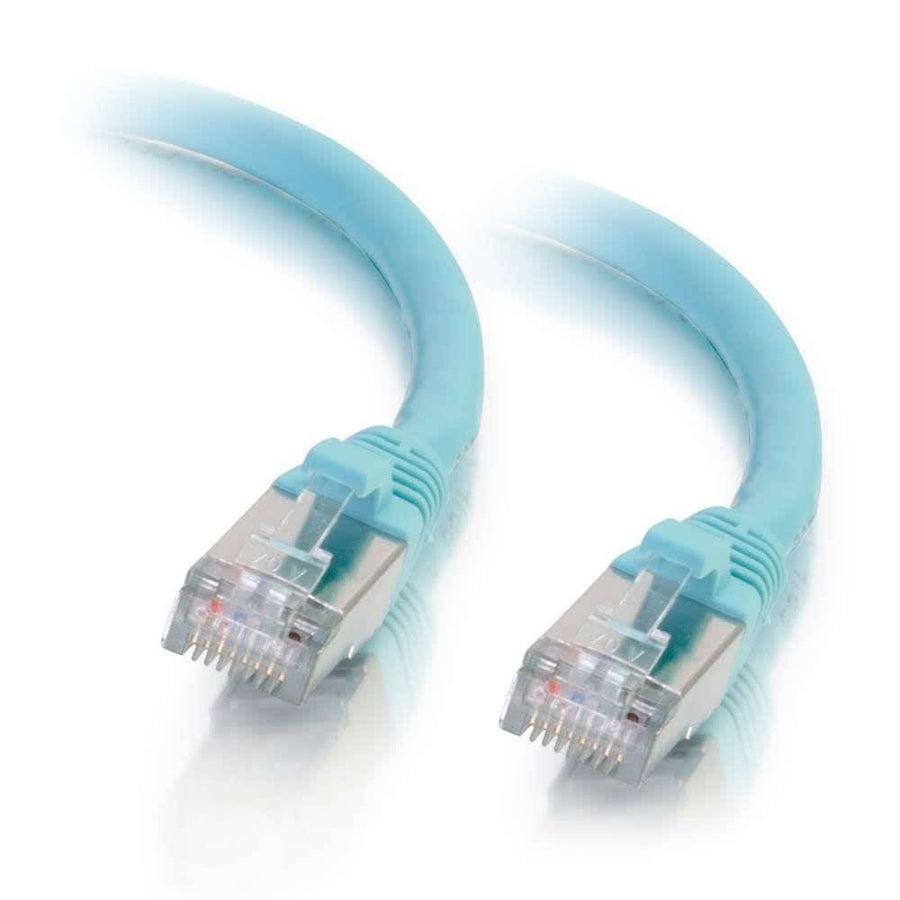

25ft (7.6m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Aqua
25ft Cat6a Snagless Shielded STP Ethernet Patch Cable in Aqua, designed for 10GBase-T high-speed network connections
The C2G CG00754 is a 25ft (7.6m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable in Aqua, engineered to support high-bandwidth 10GBase-T ports and equipment. This cable is designed for use with network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. It provides protection for high-speed 10 Gigabit network connections by shielding against noise and electromagnetic interference. The cable features a stranded copper conductor with a 26AWG (7/0.16) configuration and FMPE (Foam Polyethylene) insulation. To minimize Near-End Crosstalk (NEXT) levels, each of the individual pairs is bonded together, helping maintain twist-spacing through the termination point. This Cat6a patch cable is fully tested to meet ANSI/TIA 568 C.2 component requirements. The construction includes a PVC jacket and PVC connector hoods with a snagless, booted design for easy installation. This cable is an ideal choice for voice, data, and video distribution in environments requiring reduced impedance and structural return loss (SRL). Each cable includes an individual length label for rapid identification during installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 25 ft (7.6 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.67 lbs (0.3 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 26 |
| Cable Shielding | Shielded STP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
| Color | Aqua |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120007548 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
25ft (7.6m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Black
CG00720$39.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
What network equipment is the CG00754 compatible with?
This cable is designed for use with 10GBase-T equipment including network adapters, hubs, switches, routers, DSL/cable modems, and patch panels.
What is the maximum operating temperature for this Cat6a cable?
The operating temperature range for this cable is -4° to 176°F (-20° to 80°C).
Does this cable provide shielding against interference?
Yes, the CG00754 is a Shielded STP (SSTP) cable that protects high-speed 10 Gigabit connections from noise and electromagnetic interference.
What is the wiring scheme used for this patch cable?
This Cat6a patch cable utilizes the 568B wiring scheme.
Is there a warranty for the C2G CG00754?
This product comes with a Lifetime warranty.
