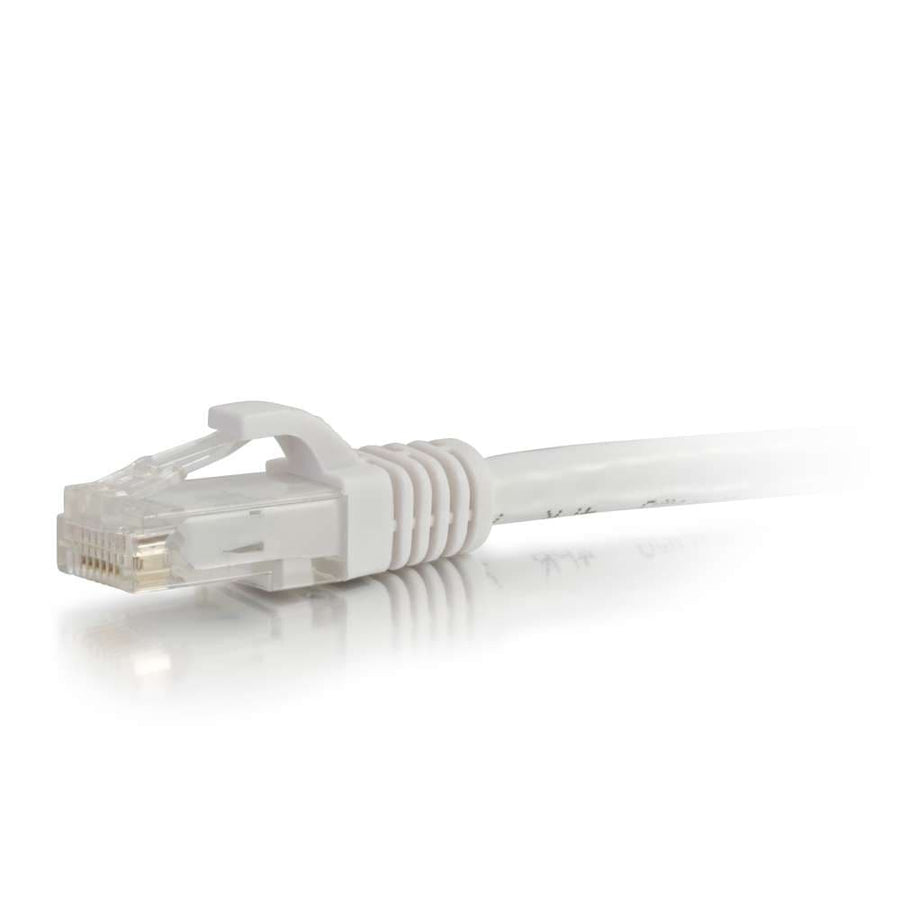

25ft (7.6m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - White
25ft white Cat6 snagless UTP Ethernet patch cable with stranded copper conductors for high-bandwidth network applications
The CG27165 is a 25ft (7.6 m) Cat6 snagless unshielded UTP Ethernet network patch cable designed for bandwidth-intensive voice, data, or video distribution applications. This cable meets all Cat6 TIA/EIA standards and is engineered to drastically reduce both impedance and structural return loss (SRL). Utilizing high-quality stranded copper conductors, the design effectively minimizes Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to maintain twist-spacing throughout the entire line, ensuring signal integrity right up to the termination point. This white cable features a snagless, booted RJ-45 connector design to protect the clips from damage during installation and provides added strain relief. With a 0.24 in (6.2 mm) diameter and T568B wiring scheme, it is suitable for high-speed Gigabit computer networks. The snagless boot prevents unwanted snags when plugging or unplugging the cable from hardware.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 25 ft (7.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.69 lbs (0.3 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120271659 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
25ft (7.6m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Black
CG27155$19.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
Questions about this part
Will this CG27165 cable work for Gigabit Ethernet networks?
Yes, this Cat6 cable is designed for Gigabit computer networks requiring bandwidth-intensive voice, data, or video distribution.
What is the difference between this and the CG27155 SKU?
The CG27165 is the white version, whereas the CG27155 is the black variant of this same 25ft Cat6 cable.
What does the snagless design provide for installers?
The snagless boot protects the RJ-45 connector clips from damage during plugging and unplugging and offers extra strain relief.
Is this cable TIA/EIA compliant?
Yes, this cable meets all Cat6 TIA/EIA standards for performance and reliability.
Can I use this cable for a rack mount installation?
Yes, it is compatible with accessories like the Cat6 48-Port Rack Mount Patch Panel (48845CC6) or 24-Port Rack Mount Patch Panel (24845CC6).
