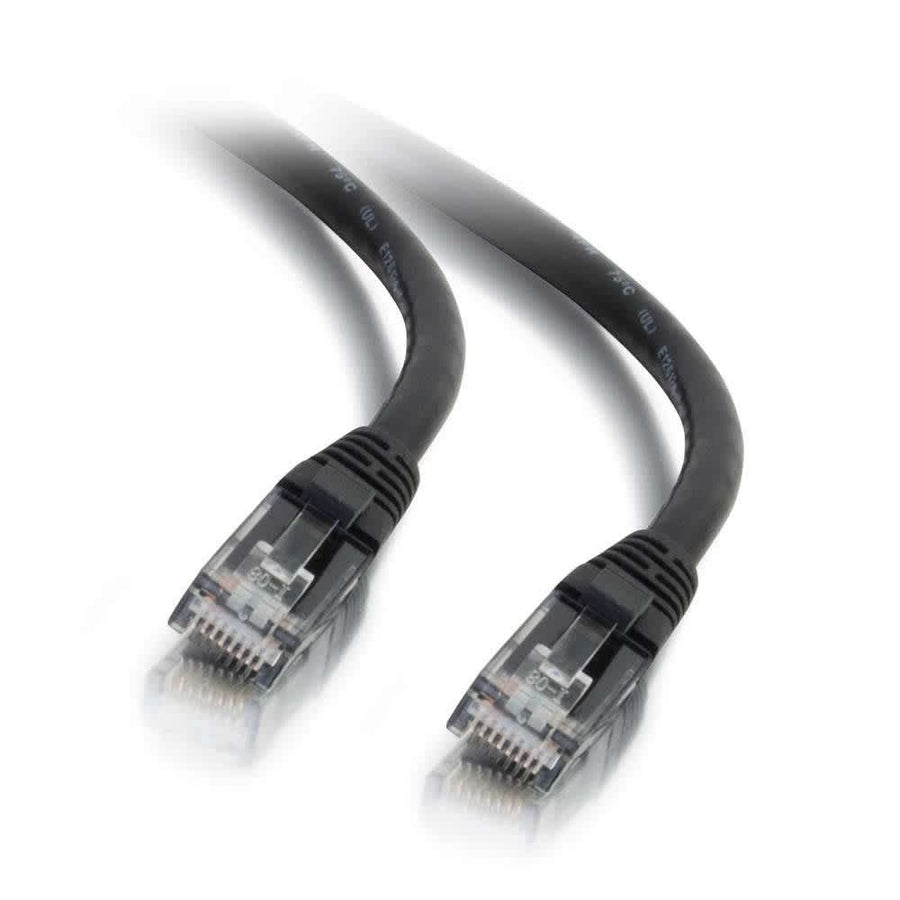

25ft (7.6m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Black
25ft Cat6 Snagless Unshielded UTP Ethernet Patch Cable in Black for high-bandwidth voice, data, or video distribution
The C2G CG27155 is a 25ft (7.6m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable designed for bandwidth-intensive voice, data, or video distribution applications in fast Ethernet and Gigabit computer networks. This cable meets all Cat6 TIA/EIA standards, working to reduce impedance and structural return loss (SRL). To maintain twist-spacing throughout the entire line up to the termination point, each individual pair is bonded together. This construction uses high quality stranded copper conductors to help minimize Near-End Crosstalk (NEXT) levels. The cable features an RJ-45 Male to RJ-45 Male connector configuration with a PVC connector hood and a molded snagless boot. This snagless design is intended to protect the clips from damage during the plugging and unplugging process while providing extra strain relief. This black cable is part of a larger series that includes 10 different colors and lengths up to 150ft to support color-coded network installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 25 ft (7.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.71 lbs (0.3 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120271550 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
Will this Cat6 cable work with my patch panel?
Yes, this cable is compatible with various rack mount components, such as the C2G 48-Port Rack Mount Patch Panel (48845CC6) or the 24-Port Rack Mount Patch Panel (24845CC6).
What is the maximum length available in this series?
While this specific SKU is 25ft (7.6m), the Cat6 Snagless Patch Cable series is available in lengths up to 150ft.
Is this cable suitable for high-speed data networks?
Yes, this Cat6 cable is designed for fast Ethernet and Gigabit networks requiring bandwidth-intensive distribution for voice, data, or video.
Does this cable feature a snagless design?
Yes, the CG27155 includes a molded snagless boot that protects the RJ-45 connector clips from being damaged during installation.
What is the wiring standard for this patch cable?
This 25ft patch cable utilizes the T568B wiring scheme for its RJ-45 Male to RJ-45 Male connections.
