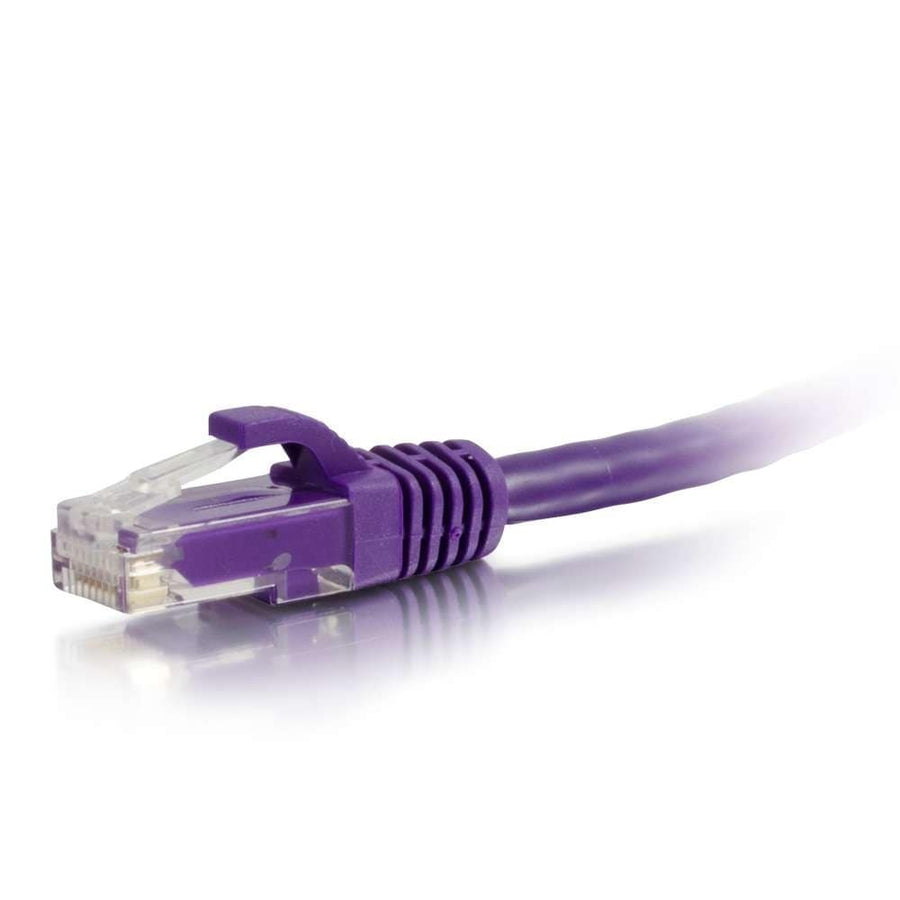

25ft (7.6m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Purple
25ft Cat6 snagless unshielded UTP Ethernet patch cable in purple, featuring stranded copper conductors and T568B wiring
The C2G CG27805 is a 25ft (7.6m) Cat6 snagless unshielded UTP Ethernet network patch cable designed for high-bandwidth applications, including voice, data, and video distribution. This cable meets all Cat6 TIA/EIA standards and is engineered to reduce impedance and structural return loss (SRL). Each individual pair is bonded together to maintain twist-spacing through to the termination point, which helps minimize Near-End Crosstalk (NEXT) levels. The cable utilizes 24 AWG stranded copper conductors for reliable connectivity in Gigabit Ethernet and fast Ethernet environments. For ease of installation, the molded snagless boots protect the RJ-45 clips from damage during plugging and unplugging while providing extra strain relief. This purple cable is part of a larger series that includes 10 different colors and various lengths up to 150ft, allowing for efficient color-coded network management.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 25 ft (7.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.7 lbs (0.3 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120278054 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
25ft (7.6m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Black
CG27155$19.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
Questions about this part
Will this CG27805 cable work for Gigabit Ethernet networks?
Yes, this Cat6 cable is designed for fast Ethernet and Gigabit computer networks requiring high-bandwidth distribution.
What is the wiring scheme for the C2G CG27805?
This patch cable uses the T568B wiring scheme and features RJ-45 male connectors on both ends.
Is this patch cable compatible with rack mount patch panels?
This cable can be used with various accessories, including the Cat6 48-Port Rack Mount Patch Panel (SKU 48845CC6).
Does the snagless design protect the connector clips?
Yes, the molded snagless boot is designed to protect the clips from snapping during installation and provides added strain relief.
What certifications does this C2G cable carry?
The CG27805 is compliant with REACH, RoHS, and is an NDAA 889 compliant product.
