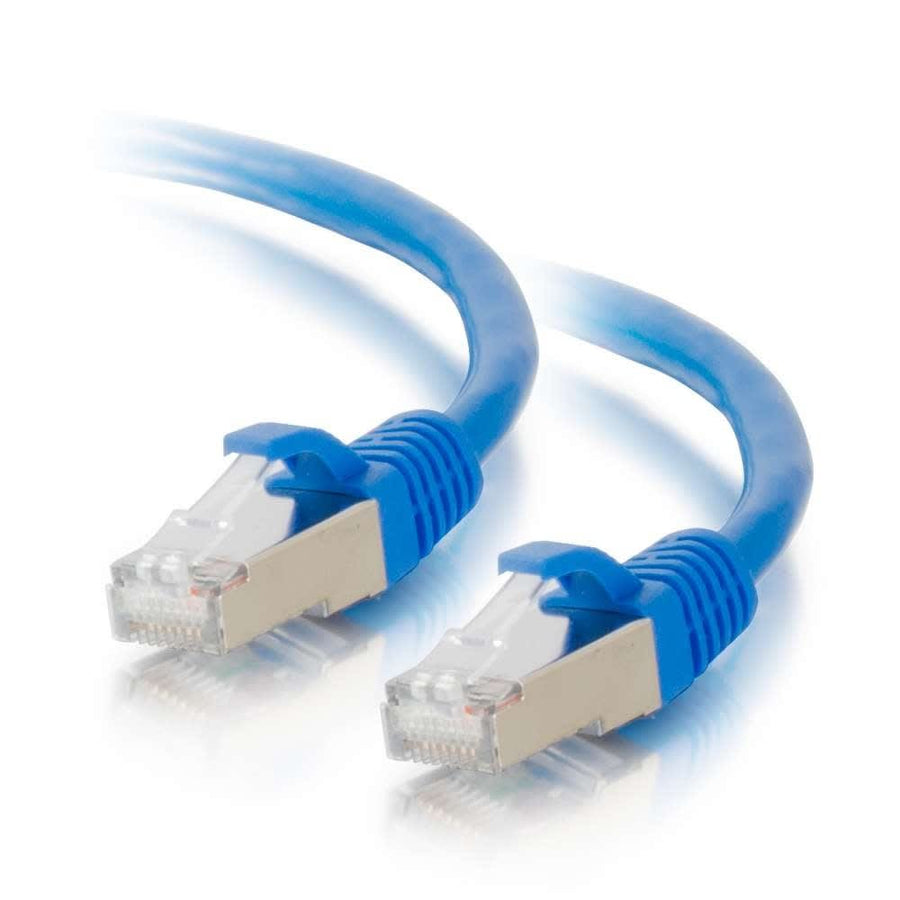

25ft (7.6m) Cat5e Snagless Shielded STP Ethernet Network Patch Cable - Blue
25ft shielded Cat5e STP patch cable in blue with snagless boots and 24 AWG stranded copper conductors
The C2G CG27266 is a 25 ft (7.6 m) Cat5e shielded STP Ethernet network patch cable designed for use in noisy environments prone to EMI/RFI interference. This F/UTP cable features an overall cable shield with a drain wire to provide protection against electromagnetic noise, ensuring the connection meets or exceeds industry standards for NEXT and return loss. The cable is constructed with 24 AWG stranded copper conductors and is terminated with 50 micron gold-plated RJ-45 male connectors. Each end features a molded, snagless PVC boot to provide extra strain relief and increased durability during installation and handling. This blue cable is part of a larger series of Cat5e Shielded Patch Cables available in various lengths and colors to facilitate easy network color-coding. For complete end-to-end protection in high-interference zones, this cable should be used in conjunction with a Cat5e shielded patch panel and Cat5e shielded keystone jacks.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 25 ft (7.6 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.64 lbs (0.3 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 24 |
All other specifications 17
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120272663 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
Questions about this part
Is the C2G CG27266 suitable for high-interference environments?
Yes, this Cat5e STP cable uses F/UTP shielding and a drain wire to protect against EMI/RFI noise.
What components are needed for full end-to-end shielded protection?
For maximum protection, use this cable with a Cat5e shielded patch panel and Cat5e shielded keystone jacks.
What is the wiring standard for this patch cable?
The CG27266 is wired to the TSB 568B (AT+T 258A) standard.
What is the difference between this and the other colors in the series?
This SKU is the blue version of the series; other colors like Black, Gray, and Red are also available.
What tools are required for installation?
This is a pre-terminated patch cable and does not require specific installation tools for field termination.
