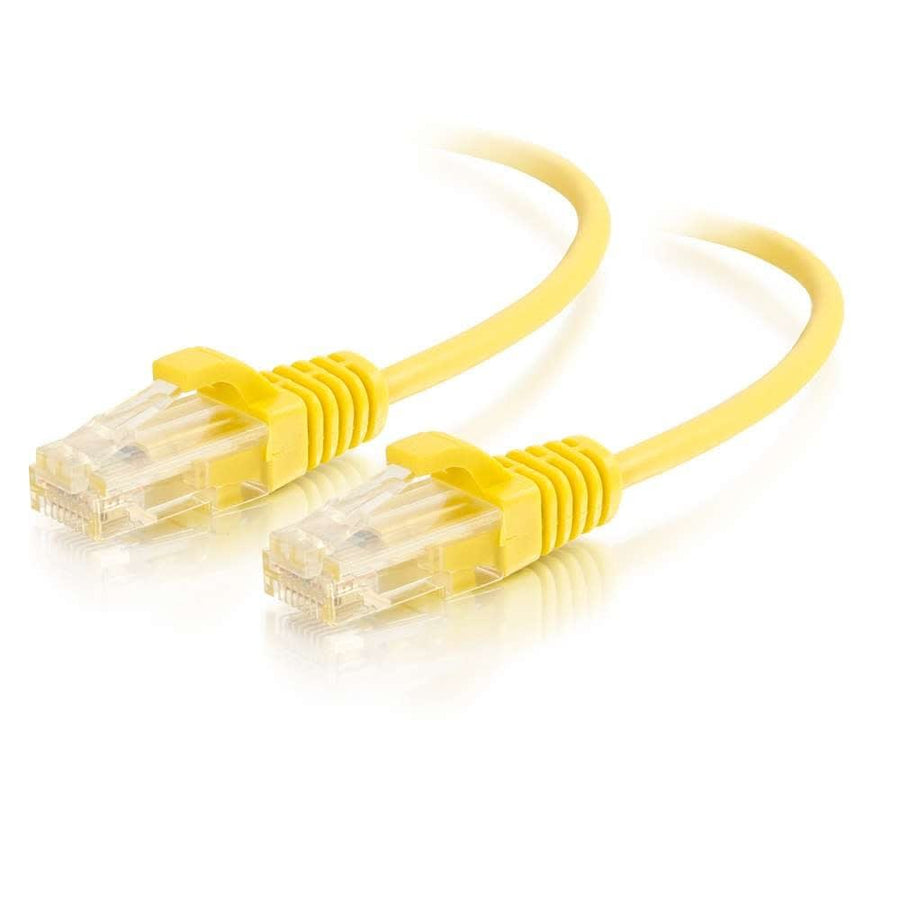

25ft (7.62m) Cat6 Snagless Unshielded UTP Slim Ethernet Network Patch Cable - Yellow
Yellow Cat6 slim patch cable, 25 ft length, 28 AWG for high-density airflow and tight bend radius routing
The C2G02246 is a 25 ft (7.6 m) Cat6 Snagless Unshielded UTP Slim Ethernet Network Patch Cable in yellow. Engineered for high-density datacenter applications, this cable utilizes 28 AWG stranded copper conductors, providing a 36% reduction in diameter compared to standard Cat6 patch cables. This slim profile significantly reduces the cable surface area, which promotes improved airflow within crowded server racks and enclosures. The 28 AWG construction also enables a much tighter bend radius of 0.6 in (15.2 mm), allowing for easier routing through compact cable management panels. This cable is designed for fast Ethernet networks supporting bandwidth-intensive voice, data, or video distribution. Each connector features a molded snagless boot made of PVC to prevent snags and provide strain relief. While suitable for high-speed data, please note that for PoE/PoE+ applications, bundles should be limited to 40 cables to manage heat dissipation. This cable is compliant with the ANSI/TIA-568 standard and TIA/EIA-568-C.2.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Bend Radius | 0.6 in (15.2 mm) |
| Cable Diameter | 0.15 in (3.8 mm) |
| Cable Length | 25 ft (7.6 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 10% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Operating Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 29
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Shield Type | UTP |
| Shipping Weight | 0.31 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Voltage | 30 V |
| Wire Gauge | 28 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | Slim |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Application | Standard Non-Rated |
| Jacket Rating | Standard / Non-Rated |
| Plating Specification | 50 µ in Gold |
| Product Type | Cable |
| Special Features | TIA/EIA-568-C.2 |
| UPC | 757120022466 |
| Certifications | CEProp 65REACHRoHS |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
Questions about this part
Will this C2G02246 cable work in my high-density data center rack?
Yes, the 28 AWG slim construction reduces diameter by 36% and allows for a 0.6 in (15.2 mm) bend radius, which is ideal for dense cable management.
Is the C2G02246 suitable for PoE or PoE+ applications?
It can be used for PoE/PoE+ applications, but it is recommended to limit cable bundles to 40 units to prevent heat buildup due to the reduced diameter.
What is the maximum channel length for this slim Cat6 cable?
For a 96 Meter Channel, you can use up to 6 meters of this slim network patch cable. For a 93 Meter Channel, you can use up to 10 meters.
What type of connectors does the C2G02246 have?
This cable features two RJ-45 Male slim connectors with 50 µ in gold plating and PVC snagless boots for strain relief.
Can I use this cable for 10Gbps networking?
Yes, this Cat6 cable is rated for data transfer rates of 10 GBPS and a bandwidth of 500 mHz.
