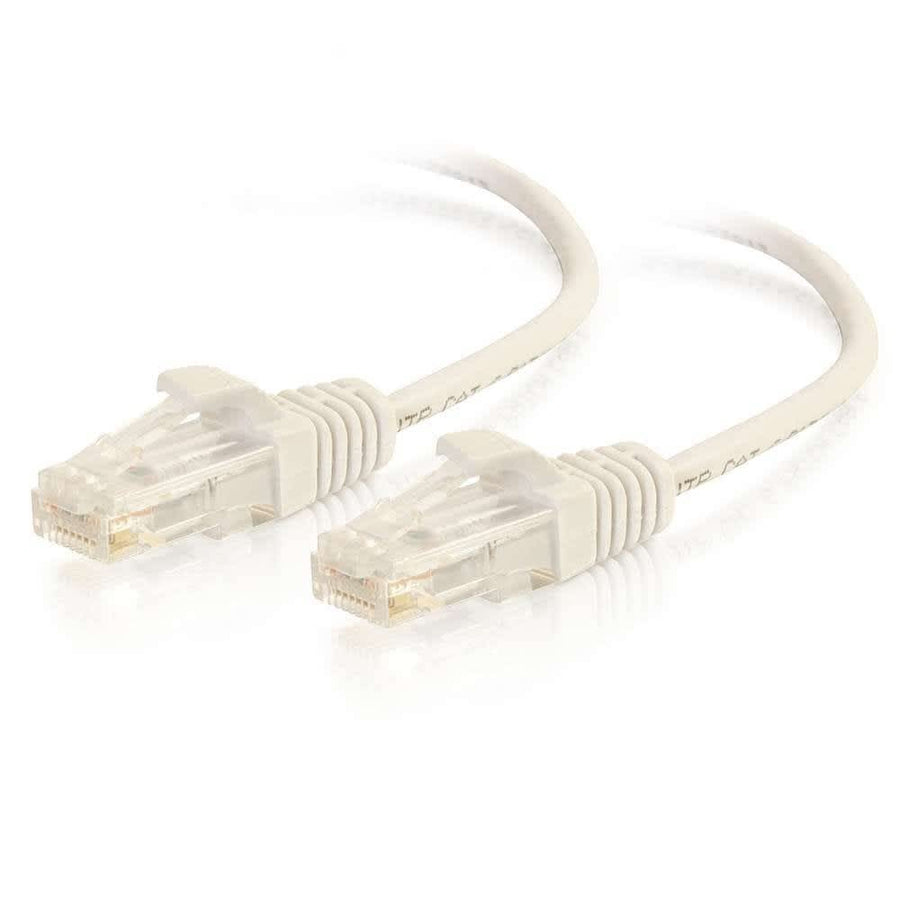

25ft (7.62m) Cat6 Snagless Unshielded UTP Slim Ethernet Network Patch Cable - White
25ft Cat6 Slim Snagless UTP patch cable in white, featuring 28 AWG conductors for high-density airflow management
The C2G02240 is a 25 ft (7.6 m) Cat6 Snagless Unshielded (UTP) Slim Ethernet Network Patch Cable in white, engineered specifically for high-density datacenter environments. By utilizing 28 AWG stranded copper conductors, this cable achieves a 36% reduction in diameter compared to standard Cat6 patch cables. This slim profile, measuring 0.15 in (3.8 mm) in diameter, significantly increases airflow within crowded racks and allows for a much tighter bend radius of just 0.6 in (15.2 mm). This makes the cable ideal for routing through tight cable management panels and high-density hardware. The T568B wiring scheme and 50 µ in gold plating ensure reliable connectivity for bandwidth-intensive voice, data, or video distribution. Each cable features a molded snagless boot made of PVC to provide strain relief and prevent accidental disconnection during installation. This Cat6 cable supports data transfer rates of up to 10 GBPS and operates in temperatures ranging from -4°F to 176°F.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Bend Radius | 0.6 in (15.2 mm) |
| Cable Diameter | 0.15 in (3.8 mm) |
| Cable Length | 25 ft (7.6 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 10% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Operating Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 29
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Shield Type | UTP |
| Shipping Weight | 0.31 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Voltage | 30 V |
| Wire Gauge | 28 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | Slim |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Application | Standard Non-Rated |
| Jacket Rating | Standard / Non-Rated |
| Plating Specification | 50 µ in Gold |
| Product Type | Cable |
| Special Features | TIA/EIA-568-C.2 |
| UPC | 757120022404 |
| Certifications | CEProp 65REACHRoHS |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
Questions about this part
Will this Cat6 slim cable work in my datacenter high-density rack?
Yes, the 28 AWG conductors allow for a smaller 0.15 in (3.8 mm) diameter, which increases airflow and makes routing through dense management panels easier.
What is the maximum channel length when using these slim patch cables?
For a 96 Meter Channel, you can use 90 meters of horizontal cable with up to 6 meters of these slim network patch cables.
Can I use this white patch cable for PoE/PoE+ applications?
For PoE/PoE+ applications, it is recommended to limit cable bundles to 40 units to manage heat dissipation effectively.
What do I need for a professional submittal regarding testing?
You can refer to the Cat6 Slim Expansion Test Data PDF for technical expansion details and performance specifications.
What is the difference between this and a standard Cat6 cable?
This C2G02240 model features a 28 AWG slim design with a 0.6 in (15.2 mm) bend radius, whereas standard cables have a larger diameter and require more space for routing.
