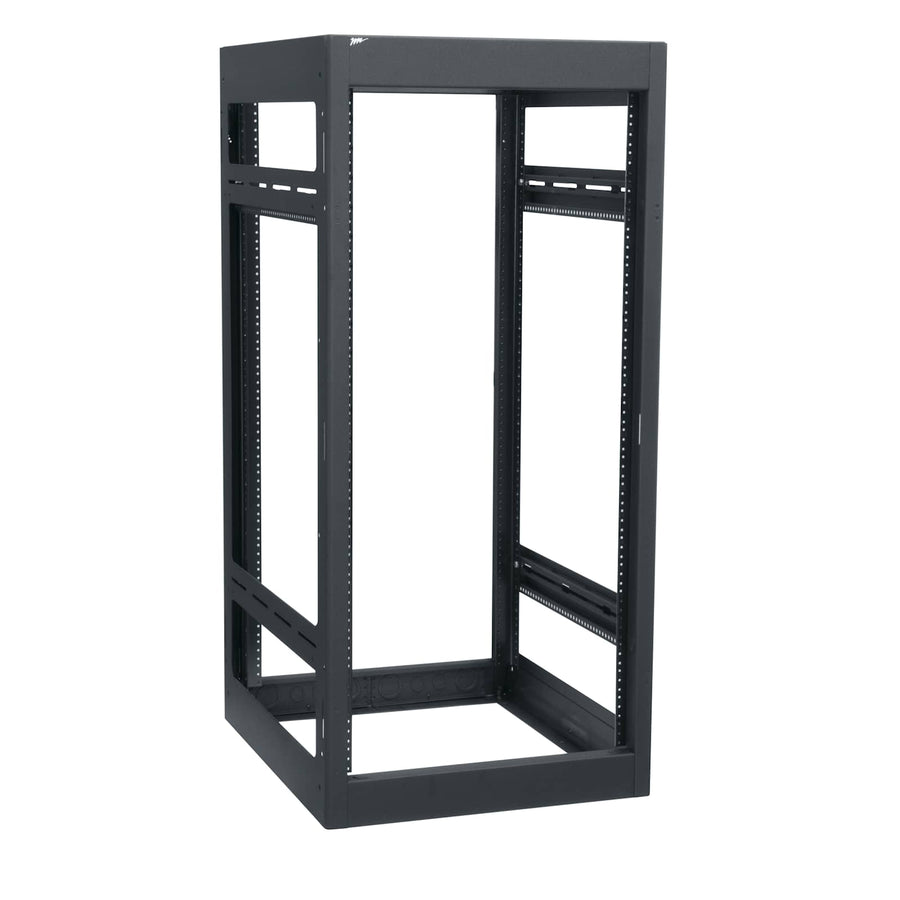

24 RU MRK Series 22 Inch Wide Rack, 26 Inches Deep without Rear Door
24 RU floor-standing rack, 22" wide by 26" deep, with a 2500 lbs UL load capacity and seismic rating
The Middle Atlantic MRK-2426LRD is a 24 RU floor-standing rack designed for high-performance environments that require a rugged, space-saving enclosure. This specific model features a 22-inch width and a 26-inch depth, providing a usable depth of 24 inches for equipment mounting. As a frame-only configuration, this SKU does not include side panels or a rear door, allowing installers to customize the enclosure with specific venting or access requirements. It is built with fully welded construction to ensure maximum strength, supporting a UL load capacity of 2500 lbs (1,134 kg) and a seismic load capacity of 1050 lbs (476.3 kg). The 10-32 threaded rack rails are front and rear adjustable to accommodate various component depths. This TAA compliant rack is also seismic rated and ASCE 7-10 compliant, making it suitable for large-scale multi-bay installations where stability is critical.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 26 in (66 cm) |
| Height | 48.13 in (122.3 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 24 RU |
| Shipping Weight | 94 lbs (42.6 kg) |
| UL Load Capacity | 2500 lbs (1,134 kg) |
| Usable Depth | 24 in (61 cm) |
| Usable Height | 42.13 in (107 cm) |
All other specifications 13
| Width | 22 in (55.9 cm) |
| Federal Ops Country of Origin | USA |
| Gangable | Yes |
| Product Configuration | Frame Only |
| Rack Rail Type | 10-32 |
| Rear Door | No |
| Seismic Rated | Yes |
| Side Panel | No |
| TAA Compliant | Yes |
| UPC | 656747010835 |
| ASCE Number | 7-10 |
| Certifications | ASCETAAUL Listed |
| Seismic Load Capacity | 1050 lbs (476.3 kg) |
Resources
You'll need these with it
1 RU Mounting Rackshelf
UTR1$58.50
PDT Low Profile Vertical Power Strip, 16 Outlet, 20A
PDT-1620C-NS$351.90
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Lace Bar L-Shaped - 10 Pieces
LBP-1A$63.00
Dual LED Work Light with Interconnect Cable
LT-CABUTL-DUAL$333.00
24 RU Vented Front Door for DWR, SR, WRK and MRK Racks, 64% Open
LVFD-24$549.00
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection - 20 ft Cord
PD-915RC-20$264.60
100 CFM Fan Panel, Anodized
QFP-2$252.90
Single LED Work Light
LT-CABUTL-SINGLE$261.00
24 RU Vented Front Door for DWR, SR, WRK and MRK Racks
VFD-24$486.90
Vented Top
MW-VT$98.10
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
Questions about this part
Will the MRK-2426LRD fit my equipment depth?
The MRK-2426LRD has a total depth of 26 inches (66 cm) with a usable depth of 24 inches (61 cm) for mounting hardware.
What is included with this MRK series rack SKU?
This is a frame-only configuration. You will need to purchase compatible accessories like side panels, doors, or shelves separately.
Can I add doors or side panels to the MRK-2426LRD?
Yes, this rack is designed for customization. You can add items such as the VFD-24 vented front door or various side panels to complete the enclosure.
Is this rack suitable for seismic-protected installations?
Yes, this rack is seismic rated with an ASCE 7-10 rating and a seismic load capacity of 1050 lbs (476.3 kg).
What documentation is available for submittals?
Detailed technical data is available in the MRK Series 19" Gangable Enclosure A&E Specification Sheet and various CAD/Revit models.
