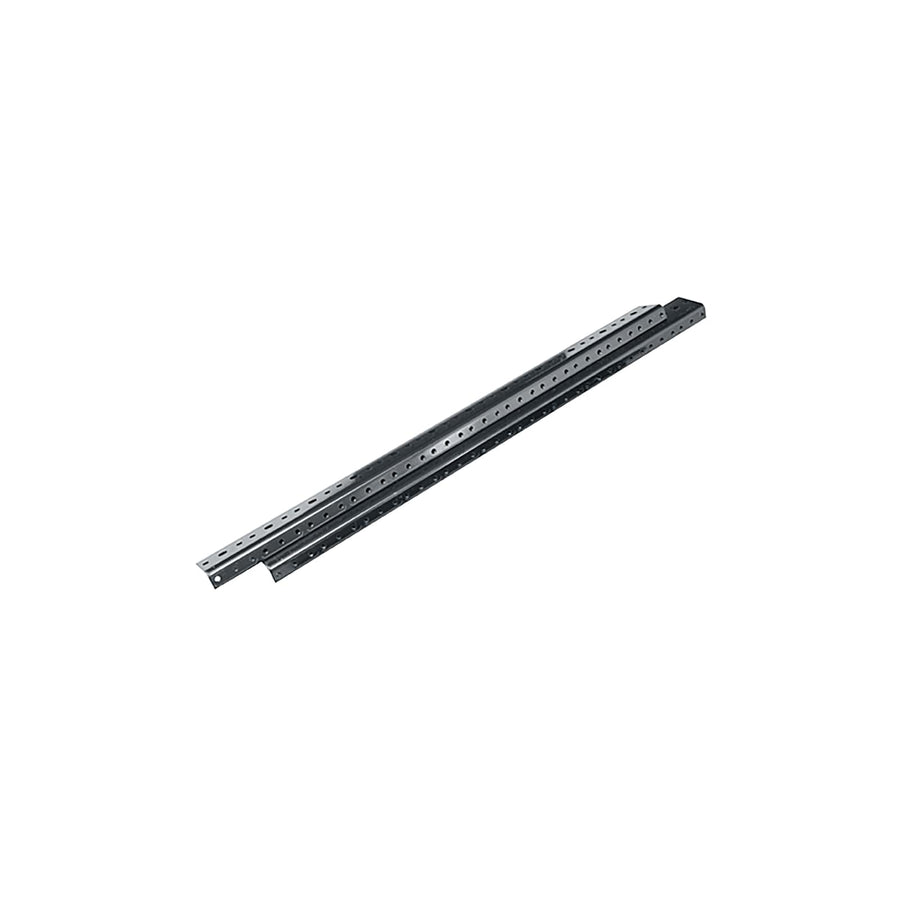

21 RU Rackrail 10-32 for Slim 5 Series
Extra rack rail for 21 RU Slim 5 Racks, providing 17 RU of additional mounting in a split, adjustable design
The Middle Atlantic 5AR21 is an extra rack rail designed specifically for use with 21 RU Slim 5 Racks. This steel rail provides 17 RU of additional mounting space to expand the capacity of your existing enclosure. It features a split, adjustable design that allows for both mid- and rear-hanging support during installation. The rail has a height of 34.44 in (87.5 cm) and a depth of 20 in (50.8 cm), with a usable height of 36.75 in (93.3 cm). This 10-32 rack rail type comes in a Black E-Coat finish and is compatible with all Slim 5 series side panels. This part is TAA compliant.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
| Depth | 20 in (50.8 cm) |
| Height | 34.44 in (87.5 cm) |
| Rack Units | 17 RU |
| Usable Height | 36.75 in (93.3 cm) |
| Width | 0.68 in (1.7 cm) |
| Base Series | Slim 5 |
| Finish | Black E-Coat |
| Material | Steel |
| Rack Rail Type | 10-32 |
| UPC | 656747001192 |
You'll need these with it
1 RU Brush Grommet Panel
BR1$86.40
1 RU Select Series UPS Backup Power, 1000VA
UPS-S1000R$1,377.00
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection - 9 ft Cord
PD-915R$223.20
NEXSYS™ 9 Outlet, 15 Amp Rackmount Power with Series Surge Protection
PDX-915R-SP$907.20
NEXSYS™ 9 Outlet, 20 Amp Rackmount Power with Series Surge Protection
PDX-920R-SP$1,108.80
NEXSYS™ 2 Outlet, 15 Amp Compact Power with Multi-Stage Surge Protection
PDX-215C$262.80
Select Series PDU with RackLink™, 9 Outlet
RLNK-915R$715.50
Compact Premium+ PDU With RackLink™, 4 Outlet 15A & 2-Stage Surge
RLNK-P415$1,360.80
2 RU Select Series UPS Backup Power, 2200VA
UPS-S2200R$1,935.00
Questions about this part
Will the 5AR21 fit in my Slim 5 Series rack?
The 5AR21 is designed for use with 21 RU Slim 5 Racks to provide 17 RU of extra mounting space.
What is required when using this with ganged racks?
A cable chase kit is required when this rail is used with ganged rack configurations.
Does this rail work with all Slim 5 side panels?
Yes, this extra rack rail is compatible with all Slim 5 series side panels.
What is the difference between this and other Slim 5 rails?
This SKU is the 17 RU version of the Slim 5 Series Extra Rack Rail; other versions in this series offer different rack unit capacities.
Is this product TAA compliant?
Yes, the 5AR21 is TAA compliant.
