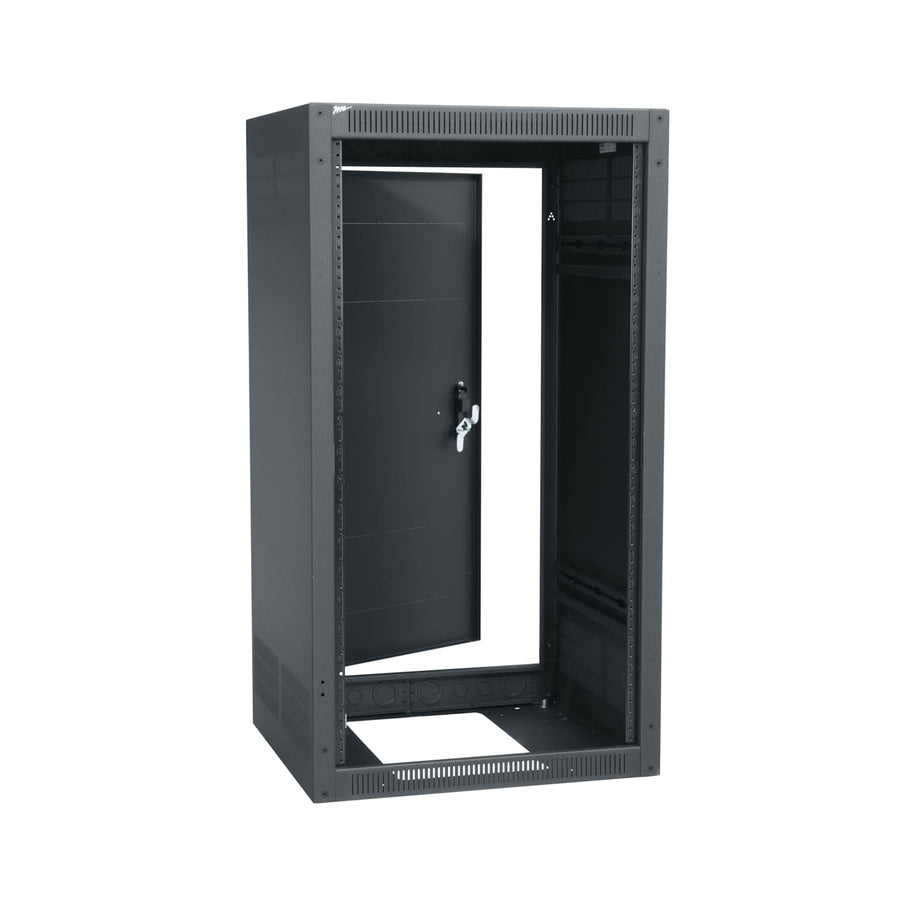

21 RU ERK Series Rack, 28 Inches Deep
21 RU floor-standing rack, 28" deep, featuring fully welded steel construction and a 2,500 lbs. UL-listed load capacity
The Middle Atlantic ERK-2128 is a 21 RU standalone floor-standing rack designed for professional AV environments requiring high structural integrity. This 28" deep (71.1 cm) frame is constructed from fully welded steel with a black wrinkle powder coat finish. It features standard front adjustable 10-32 threaded rackrails with numbered spaces to simplify component mounting, alongside convenient lacing points and slotted rackrail brackets to assist with cable management. For thermal management, the rack sides include both top and bottom venting. Security is enhanced by a key-locked standard rear door. This specific model is seismic rated with a seismic load capacity of 680 lbs (308.4 kg) when installed with ERK-Z4 brackets. It is UL Listed in the US and Canada with a weight capacity of 2,500 lbs (1,134 kg). This TAA compliant, USA-made rack can be ganged with other ERK Series enclosures to create partitioned multi-bay installations for improved security and controlled thermal management.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 28 in (71.1 cm) |
| Height | 40.88 in (103.8 cm) |
| Panel Width | 19 in (48.3 cm) |
| Product Weight | 80.1 lbs (36.3 kg) |
| Rack Units | 21 RU |
| Shipping Weight | 112 lbs (50.8 kg) |
| UL Load Capacity | 2500 lbs (1,134 kg) |
| Usable Depth | 26.47 in (67.2 cm) |
All other specifications 15
| Usable Height | 36.88 in (93.7 cm) |
| Width | 22 in (55.9 cm) |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Material | Steel |
| Product Configuration | Frame Only |
| Rack Rail Type | 10-32 |
| Rear Door | Yes |
| Seismic Rated | Yes |
| Ships Flat | No |
| TAA Compliant | YesYes |
| UPC | 656747213557 |
| Certifications | ASCETAAUL Listed |
| Seismic Load Capacity | 680 lbs (308.4 kg) |
Resources
You'll need these with it
KO Series Rear Door Fan Kit, 190 CFM
KO-AWFP2$252.90
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
115V Fan 4 1/2 Inch, 50 CFM at 30dBA
QFAN$136.80
Leveling Feet
LF$40.50
Leveling Feet Isolating
LF-ISO$55.80

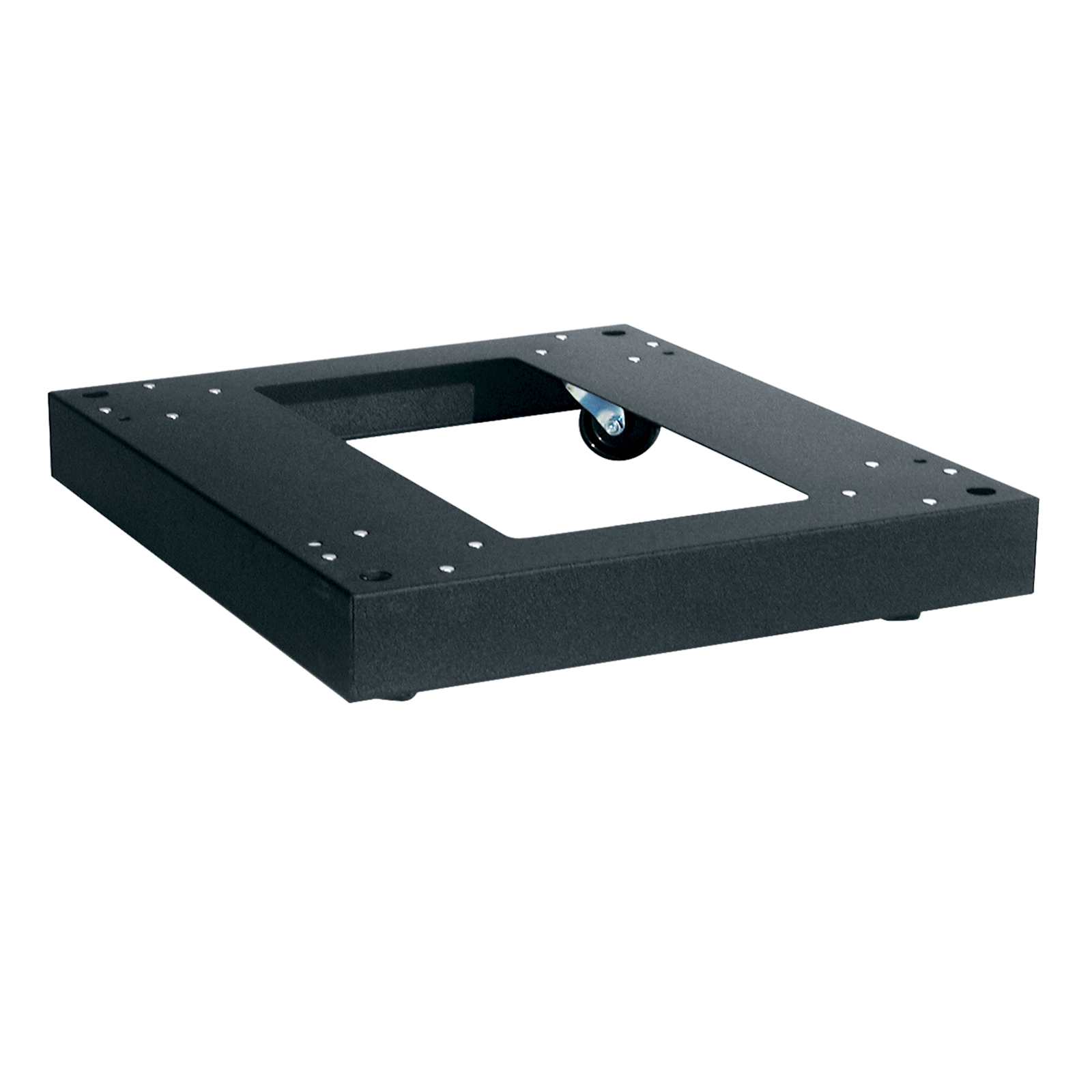

Caster Base for 28 Inch Deep ERK Series - 1,300 pounds
CBS-ERK-28$343.80
Caster Base for 28 Inch Deep ERK Series - 700 pounds
CBS-ERK-28R$388.80
21 RU Vented Front Door for DWR and EWR Racks, 64% Open
LVFD-21$522.90
21 RU Rackrail 10-32 for ERK Series
ERK-RR21$93.60
21 RU Vented Front Door for DWR and EWR Racks
VFD-21$462.60

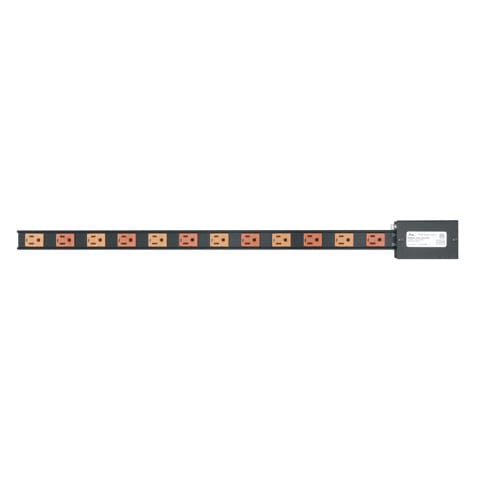

Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 12 Outlet, 15A Hardwired
PDT-2X615S$330.30
101mm DC Fan Kit with (1) Fan, 69CFM for the European Union
FAN-69-K-EU$130.50
Questions about this part
Will the ERK-2128 fit my equipment depth requirements?
This rack has a total depth of 28" (71.1 cm) and provides a usable depth of 26.47" (67.2 cm) for your equipment.
What do I need to make this rack seismic rated?
To achieve seismic certification for this frame, you must install it using ERK-Z4 brackets.
Can I add cooling or power accessories to the ERK-2128?
Yes, you can integrate accessories such as the KO-AWFP2 rear door fan kit, various fan panels like the UQFP-4, or a Select Series PDU like the RLNK-215.
How much weight can this 21 RU rack support?
The ERK-2128 is UL Listed with a total weight capacity of 2,500 lbs (1,134 kg).
Does this rack come with a front door?
The ERK-2128 is a frame-only configuration; however, you can add a 21 RU vented front door (part number VFD-21) or a 64% open vented door (part number LVFD-21).
