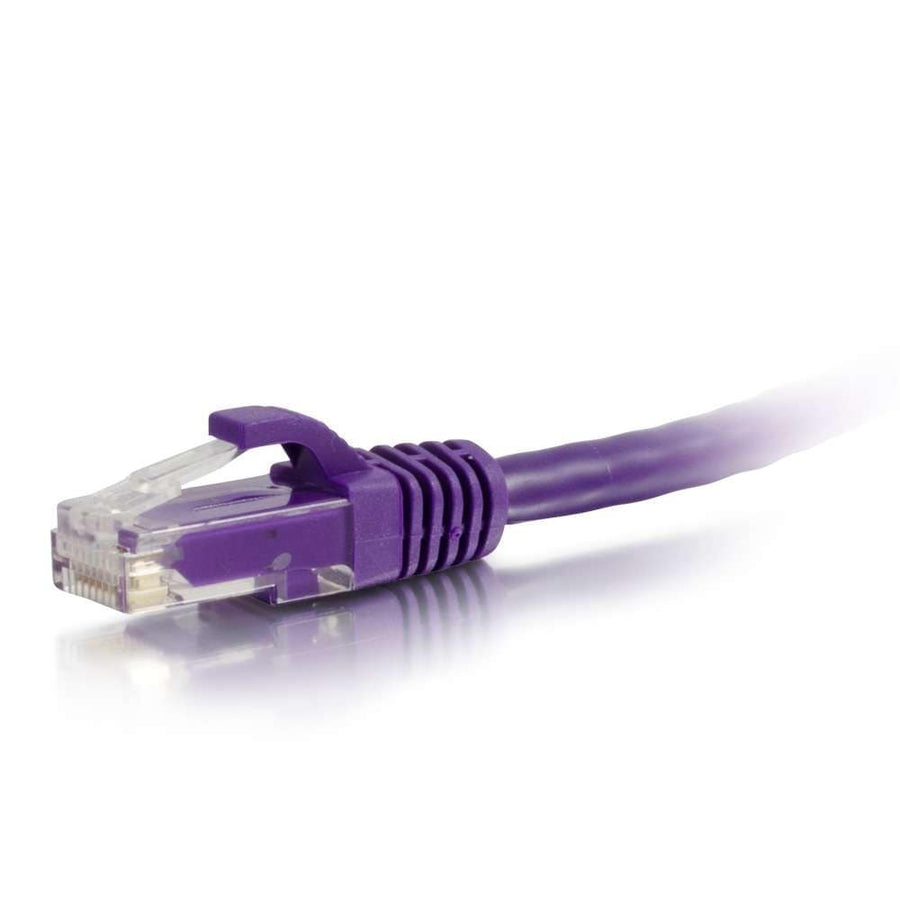

20ft (6.1m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Purple
20ft Cat6 Unshielded UTP Ethernet patch cable in purple with snagless boots and stranded copper conductors
The C2G CG04032 is a 20ft (6.1m) Cat6 Unshielded UTP Ethernet network patch cable designed for high-bandwidth applications including voice, data, and video distribution. This cable is built to meet all Cat6 TIA/EIA standards, which helps to significantly reduce structural return loss (SRL) and impedance. Utilizing high-quality copper stranded conductors, the design is engineered to minimize Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to maintain consistent twist-spacing through to the termination point. This SKU features a purple jacket for easy color-coding within complex network environments. The molded snagless boots protect the RJ-45 clips from damage during installation and provide additional strain relief for the connections. This unshielded twisted pair (UTP) cable uses a T568B wiring scheme and is rated for standard non-rated environments. The 0.24 in (6.2 mm) diameter cable is constructed with a PVC jacket and PVC connector hoods, providing a reliable connection for Gigabit computer networks.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 20 ft (6.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.56 lbs (0.3 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120040323 |
| Certifications | CECENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
20ft (6.1m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Black
CG03987$16.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Questions about this part
What is the length and color of this C2G patch cable?
The CG04032 is a 20ft (6.1m) cable with a purple color finish.
Will this cable work with my Cat6 patch panel?
Yes, this cable is compatible with components like the 24-port Cat6 Rack Mount Patch Panel (SKU 24845CC6) or the 48-port Cat6 Rack Mount Patch Panel (SKU 48845CC6).
What is the construction of the CG04032 conductor?
This cable uses stranded copper conductors and features a UTP (unshielded twisted pair) design to minimize crosstalk.
Does this cable have snagless boots?
Yes, the CG04032 features molded snagless boots that protect the connector clips and provide extra strain relief.
What are the electrical characteristics of this Cat6 cable?
This cable is designed for a 100 ohm impedance and can be used for distances up to 100m (maximum) with a conductor DC resistance of 9.38.
