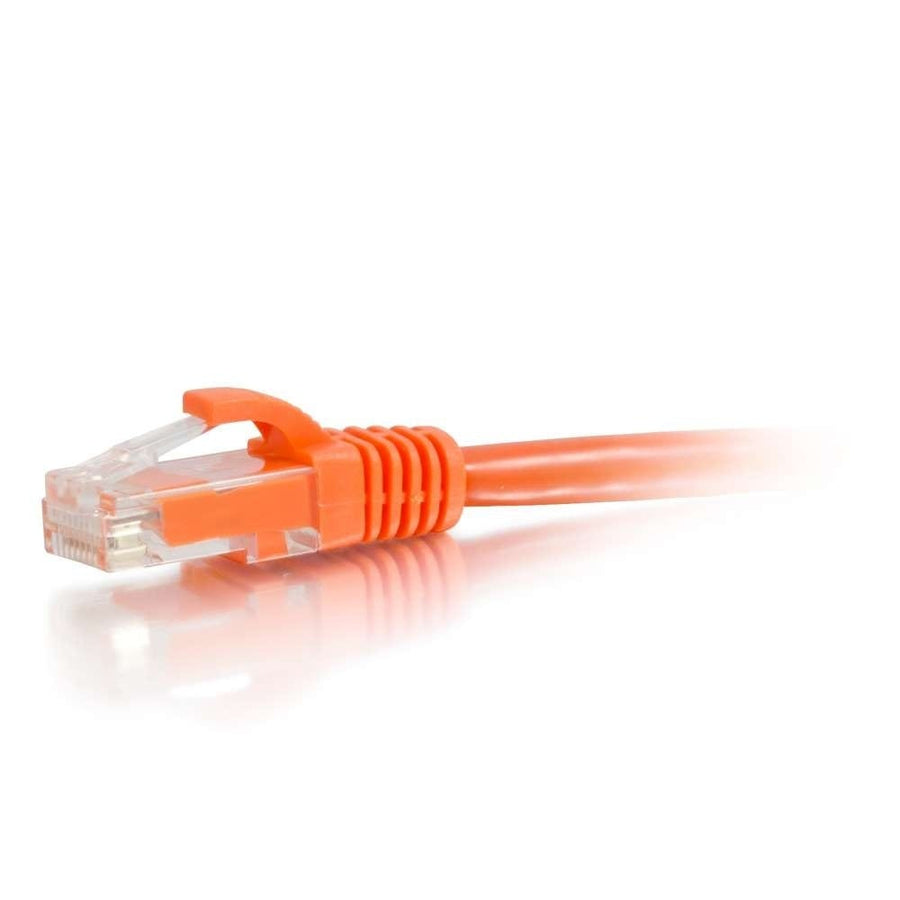

20ft (6.1m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Orange
20ft orange Cat6 snagless UTP patch cable with stranded copper conductors and RJ-45 male connectors
The C2G CG04023 is a 20ft (6.1m) Cat6 snagless UTP Ethernet network patch cable designed for bandwidth-intensive voice, data, or video distribution applications in fast Ethernet and Gigabit computer networks. This unshielded twisted pair (UTP) cable features 24 AWG stranded copper conductors to minimize Near-End Crosstalk (NEXT) levels. To ensure high performance, each individual pair is bonded together to maintain twist-spacing right up to the termination point, which drastically reduces impedance and structural return loss (SRL). This SKU features a snagless, booted connector design to protect the clips during installation and provide additional strain relief. This orange cable is part of the Cat6 Snagless Patch Cable series and is ideal for color-coding network environments. This 0.24 in (6.2 mm) diameter cable utilizes PVC jacket material and is compliant with NDAA 889, RoHS, REACH, and CE standards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 20 ft (6.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.53 lbs (0.2 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120040231 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
20ft (6.1m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Black
CG03987$16.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Questions about this part
What is the maximum length for this Cat6 cable series?
While this specific SKU is 20 ft (6.1 m), the series is available in lengths up to 150 ft.
What do I need to complete my installation?
This is a patch cable and does not include mounting hardware. It is compatible with items like the CG03833 2-Port Keystone Jack Surface Mount Box or the 48845CC6 Cat6 48-Port Rack Mount Patch Panel.
Will this cable work for Gigabit network applications?
Yes, this Cat6 cable is designed for high-bandwidth voice, data, or video distribution in Gigabit computer networks.
Is this cable snagless?
Yes, the CG04023 features a snagless, booted design that protects the RJ-45 clips and provides extra strain relief.
What is the wiring scheme for this patch cable?
This cable follows the T568B wiring scheme.
