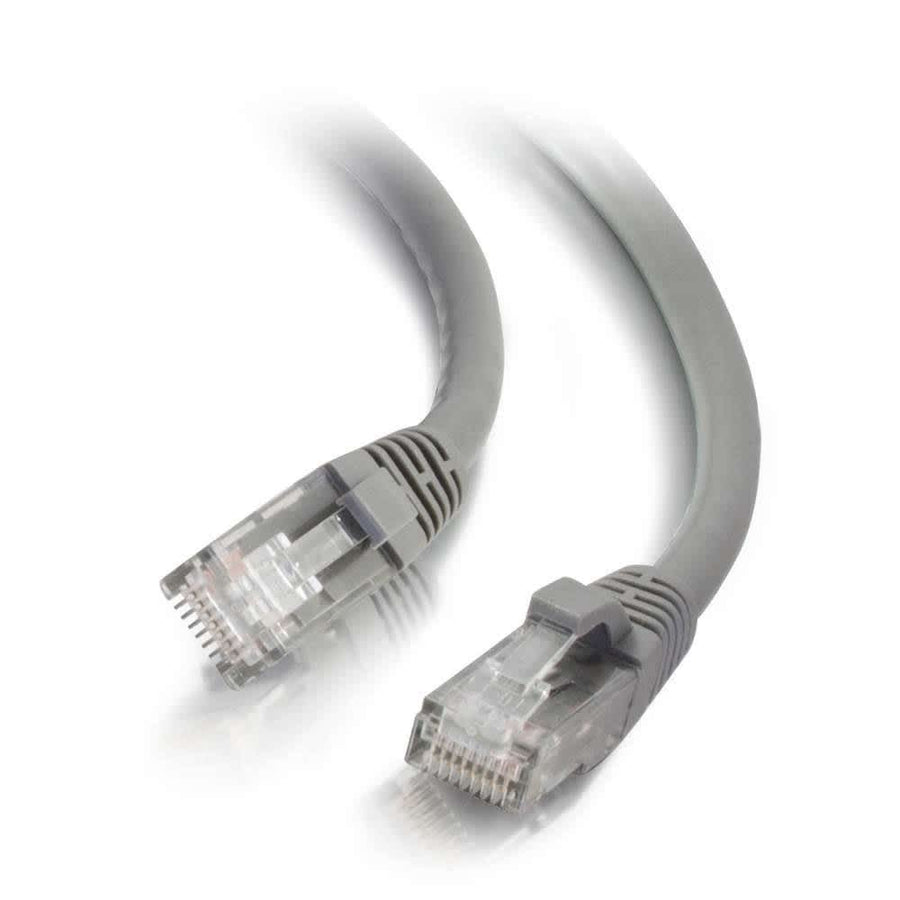

20ft (6.1m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Gray
20ft Cat6 snagless patch cable in gray, featuring unshielded UTP construction and copper conductors for high-bandwidth networking
The C2G CG03971 is a 20ft (6.1m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable designed for high-bandwidth environments requiring reliable voice, data, or video distribution. This gray cable is built with stranded copper conductors and a 24 AWG wire gauge to minimize Near-End Crosstalk (NEXT) levels. To maintain high performance, each individual pair is bonded together, which helps preserve twist-spacing from the termination point to the end of the line. This design effectively reduces impedance and structural return loss (SRL) to meet all Cat6 TIA/EIA standards. The cable features a PVC jacket and PVC connector hoods. For ease of installation, the snagless, booted RJ-45 male connectors protect the clips from damage during plugging and unplugging, while providing additional strain relief. This series is part of a larger family, including a black version (CG03987) and various other colors for network color-coding.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 20 ft (6.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.56 lbs (0.3 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120039716 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
20ft (6.1m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Black
CG03987$16.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Questions about this part
Will this Cat6 cable work for high-bandwidth video or data applications?
Yes, this Cat6 cable is designed for bandwidth-intensive applications, including voice, data, and video distribution, meeting all TIA/EIA standards.
What is the difference between this and the black version of the same cable?
The CG03971 is the gray version; the black version of this same 20ft Cat6 snagless cable is SKU CG03987.
What is the maximum length available in this Cat6 snagless series?
This series of Cat6 snagless patch cables is available in lengths up to 150ft.
What hardware is compatible with this Cat6 cable?
This cable is compatible with various components, including the 48-Port Rack Mount Patch Panel (48845CC6) and various Cat6 Network Interface Modules.
Does this cable include snagless boots for protection?
Yes, the CG03971 features a snagless, booted design that protects the RJ-45 clips and provides extra strain relief.
