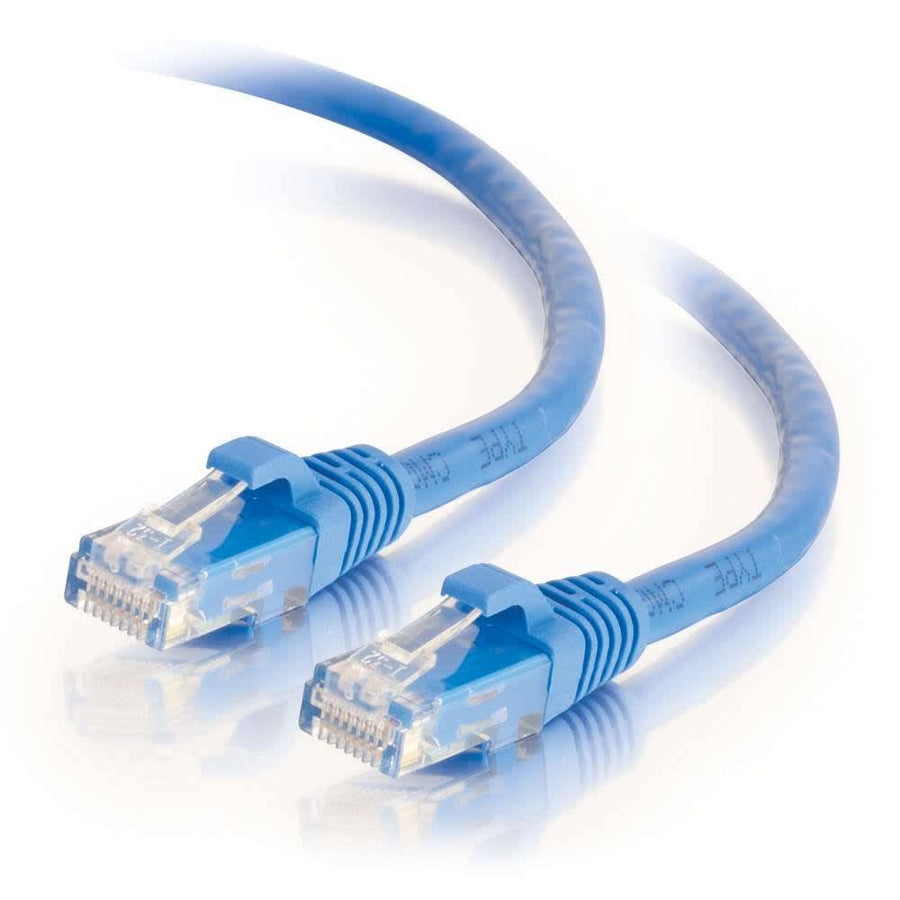

20ft (6.1m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
20ft Cat6 snagless unshielded UTP Ethernet patch cable in blue for bandwidth-intensive data and video distribution
The C2G CG03979 is a 20ft (6.1m) Cat6 snagless unshielded UTP Ethernet network patch cable designed for high-bandwidth environments. It is engineered for voice, data, and video distribution applications within fast Ethernet and Gigabit computer networks. This cable meets all Cat6 TIA/EIA standards, which helps to drastically reduce impedance and structural return loss (SRL). To minimize Near-End Crosstalk (NEXT) levels, the design utilizes high-quality copper stranded conductors. Each individual pair is bonded together to maintain twist-spacing throughout the entire line, up to the termination point. The molded, snagless boot protects the RJ-45 clips from damage during frequent plugging and unplugging while providing additional strain relief. This blue cable is part of a larger series, which is available in 10 different colors and lengths up to 150ft to facilitate network color-coding.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 20 ft (6.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.51 lbs (0.2 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120039792 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
20ft (6.1m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Black
CG03987$16.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Questions about this part
Will this CG03979 cable work for Gigabit Ethernet networks?
Yes, the CG03979 is a Cat6 rated cable designed for bandwidth-intensive Gigabit computer networks.
What is the difference between this and the CG03987 SKU?
The CG03987 is the same 20ft Cat6 snagless unshielded UTP cable but features a black finish instead of blue.
What is the maximum length available in this Cat6 snagless series?
While this SKU is 20ft (6.1m), the series is available in various lengths up to 150ft.
Is this cable suitable for high-density patching?
Yes, the snagless boot protects the clips from damage when plugging and unplugging in high-density environments.
Does this cable meet industry standards for performance?
This cable meets all Cat6 TIA/EIA standards for data and video distribution.
