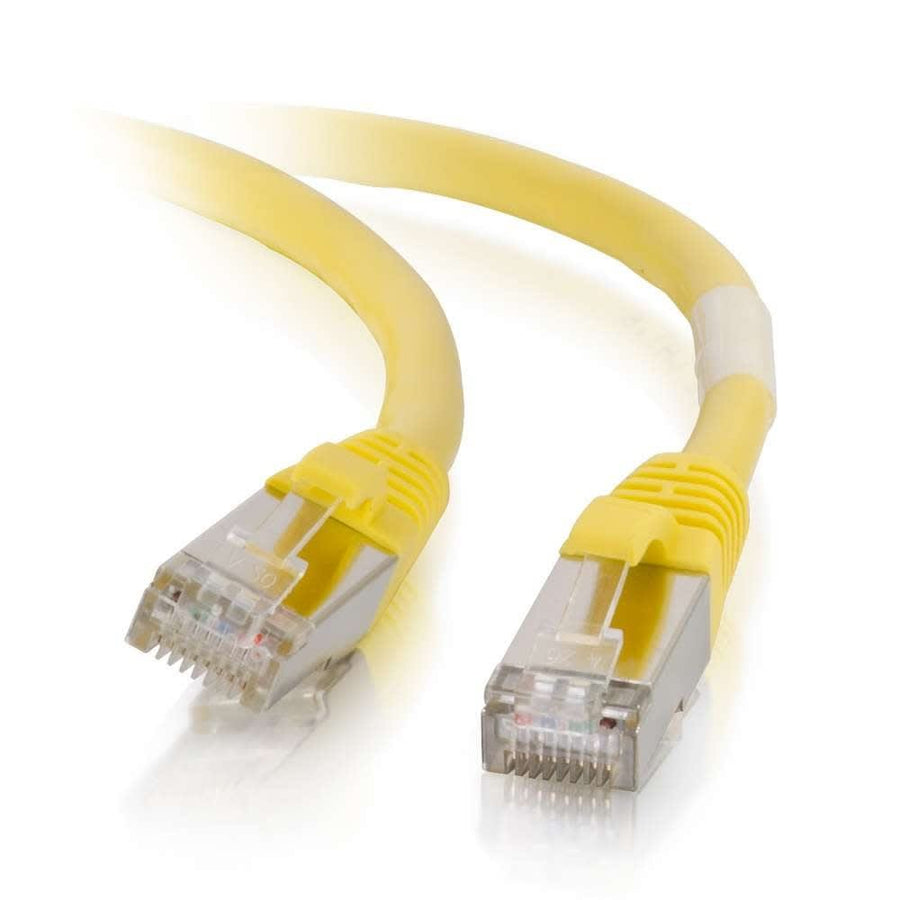

20ft (6.1m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Yellow
20ft (6.1m) Cat6 STP shielded snagless patch cable, yellow, featuring 26AWG stranded copper conductors
The C2G CG00872 is a 20ft (6.1m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable in yellow, engineered to protect high-speed networks from electromagnetic interference and noise. This cable is specifically designed for bandwidth-intensive voice, data, and video distribution by drastically reducing impedance and structural return loss (SRL). Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements. To minimize Near-End Crosstalk (NEXT), the individual pairs are bonded together, maintaining consistent twist-spacing from the cable through to the termination point. This Cat6 patch cable features 26AWG bare copper stranded conductors and a PVC jacket with a temperature rating of up to 75°C. The snagless, booted RJ-45 male connectors include PVC hoods to protect the connection during installation. This yellow cable is ideal for color-coding network environments to simplify management and troubleshooting.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 20 ft (6.1 m) |
| Shield Type | STP |
| Shipping Weight | 0.6 lbs (0.3 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120008729 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
20ft (6.1m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Black
CG00821$27.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
Is the C2G CG00872 TAA compliant?
No, this specific SKU is not TAA compliant.
What is the wiring scheme for this Cat6 patch cable?
The CG00872 follows the T568B wiring scheme and utilizes 26AWG stranded copper conductors.
Will this cable work in high-interference environments?
Yes, the STP (Shielded Twisted Pair) construction helps protect your network from noise and electromagnetic interference.
What color is the CG00872 cable?
This specific part number is Yellow and includes an individual length label on each cable for easy identification.
Can I use this for high-bandwidth video or voice distribution?
Yes, the design is optimized for bandwidth-intensive applications by reducing impedance and structural return loss (SRL).
