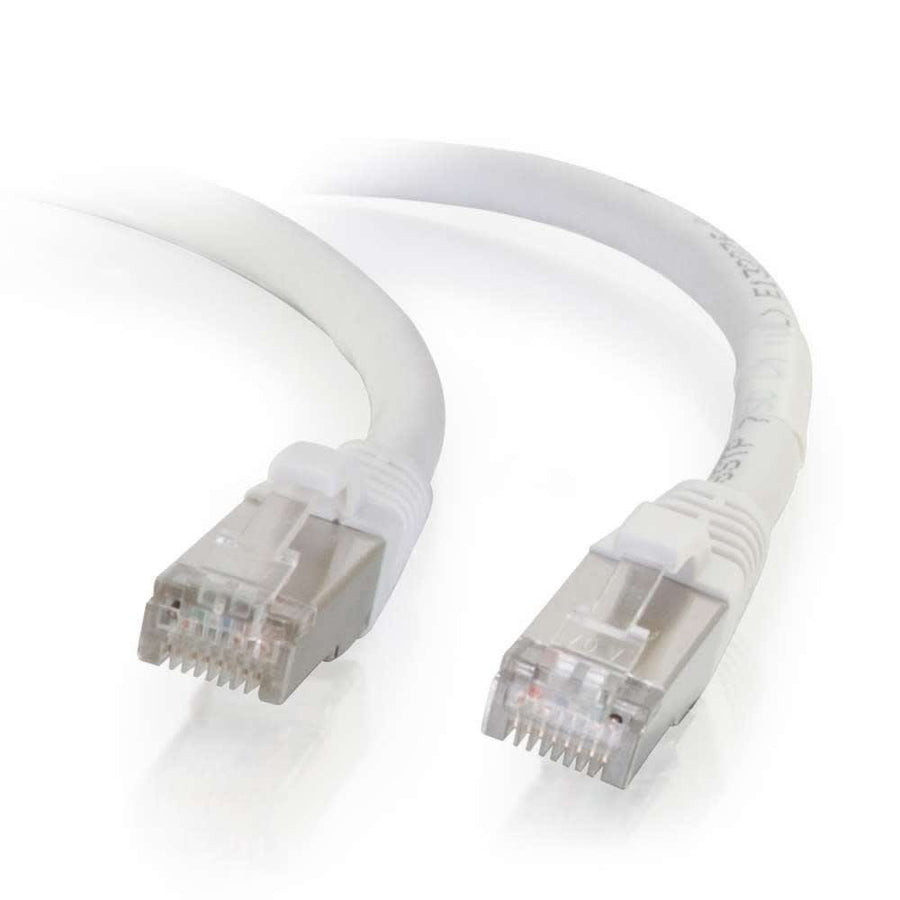

20ft (6.1m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - White
20 ft (6.1 m) Cat6 shielded STP patch cable in white, featuring 26AWG stranded copper and snagless boots
The C2G CG00927 is a 20 ft (6.1 m) Cat6 shielded STP patch cable designed to maintain high-speed network performance in environments prone to electromagnetic interference. This cable utilizes a shielded (STP) construction to reduce impedance and structural return loss (SRL), making it suitable for bandwidth-intensive voice, data, and video distribution. It features 26AWG bare copper stranded conductors and is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements. Each cable is built with a PVC jacket and PVC connector hoods. To prevent accidental disconnection during installation or maintenance, the RJ-45 male connectors are equipped with snagless, booted designs. The internal wiring follows the T568B scheme, and individual pairs are bonded together to maintain twist-spacing through the termination point, which helps minimize Near-End Crosstalk (NEXT). For ease of deployment and identification within a complex rack or cabinet, each cable includes an individual length label. This white 0.24 in (6.2 mm) diameter cable is rated for temperatures up to 75°C.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 20 ft (6.1 m) |
| Shield Type | STP |
| Shipping Weight | 0.27 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120009276 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
1-Port Keystone Jack Surface Mount Box - White
CG03831$4.99
Questions about this part
Will this Cat6 cable work in a high-interference environment?
Yes, the CG00927 uses STP (Shielded Twisted Pair) construction to reduce noise and electromagnetic interference for bandwidth-intensive applications.
What is the wiring scheme for the C2G CG00927?
This patch cable uses the T568B wiring scheme for all connections.
Does this cable include snagless boots for protection?
Yes, the RJ-45 male connectors feature snagless, booted designs to protect the locking tabs and prevent accidental unplugging.
What is the maximum operating temperature for this cable?
This cable is rated for operation in temperatures up to 75°C.
Is this cable suitable for commercial network installations?
Yes, this Cat6 cable is ANSI/TIA 568 C.2 component tested and is suitable for professional voice, data, and video distribution.
