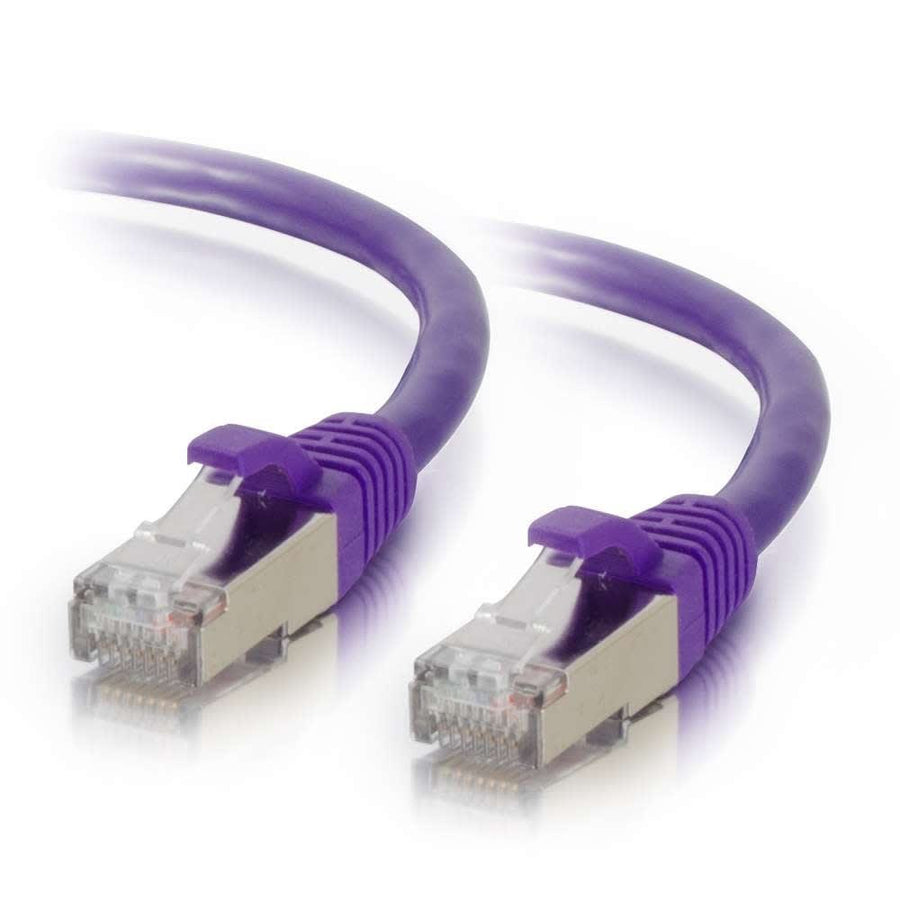

20ft (6.1m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Purple
Shielded Cat6 STP patch cable, 20 ft (6.1 m) length, purple finish, with snagless boots and T568B wiring
The CG00910 is a 20 ft (6.1 m) Cat6 Shielded STP Ethernet Network Patch Cable in purple. Designed for bandwidth-intensive applications, this cable helps protect high-speed networks from noise and electromagnetic interference. It is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements. The construction features 26AWG bare copper stranded conductors with FM-PE insulation, ensuring signal integrity for voice, data, and video distribution. To minimize Near-End Crosstalk (NEXT) levels, each individual pair is bonded together to maintain consistent twist-spacing through to the termination point. This STP cable utilizes a T568B wiring scheme and features both RJ-45 male connectors with PVC-molded snagless boots for added strain relief. The jacket is made of PVC with a standard rating and a 75°C temperature rating. This purple cable is part of a larger series available in various lengths and colors for easy color-coding during complex network installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 20 ft (6.1 m) |
| Shield Type | STP |
| Shipping Weight | 0.6 lbs (0.3 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120009108 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
20ft (6.1m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Black
CG00821$27.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
Will this Cat6 cable work with my network switch?
Yes, this 20 ft (6.1 m) shielded cable is suitable for high-speed data, voice, and video distribution, providing protection against electromagnetic interference.
What is the wiring scheme for the CG00910?
This patch cable follows the T568B wiring scheme for standard network connectivity.
Is this cable suitable for environments with high interference?
Yes, the STP (Shielded Twisted Pair) construction and bonded individual pairs are designed to reduce impedance and structural return loss (SRL).
What are the technical specifications of the conductors?
The cable uses 26AWG (7/0.16) bare copper stranded conductors with FM-PE insulation.
What other colors is this Cat6 series available in?
This series includes options such as Black, Blue, Gray, Green, Orange, Red, and White.
