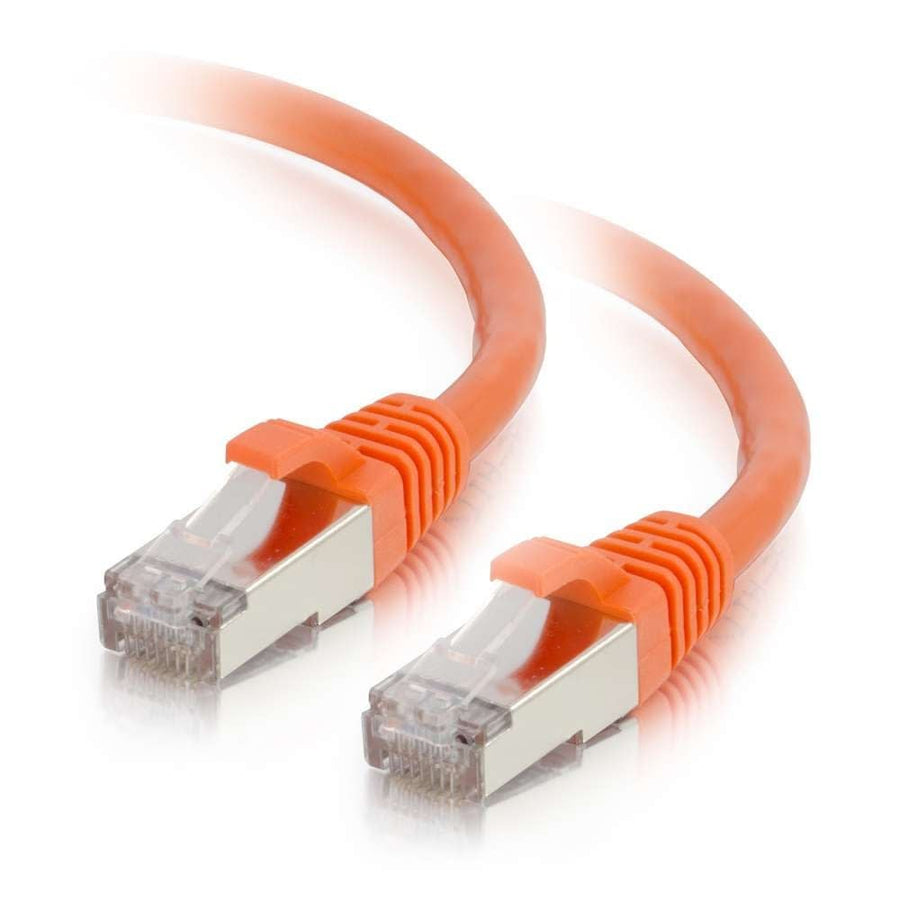

20ft (6.1m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Orange
20ft Cat6 Snagless Shielded STP Ethernet Patch Cable in orange with 26AWG stranded copper conductors
The CG00893 is a 20ft (6.1m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable designed to protect high-speed networks from noise and electromagnetic interference. This orange-jacketed cable utilizes stranded SSTP construction and 26AWG bare copper conductors to handle bandwidth-intensive applications for voice, data, and video distribution. By bonding individual pairs together, the design helps maintain twist-spacing throughout the line up to the termination point, which drastically reduces impedance, structural return loss (SRL), and Near-End Crosstalk (NEXT) levels. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements. This specific SKU features a T568B wiring scheme and a PVC jacket with a 0.24 in (6.2 mm) diameter. The connectors are hooded with PVC and include a snagless boot to protect the release tabs during installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 20 ft (6.1 m) |
| Shield Type | STP |
| Shipping Weight | 0.61 lbs (0.3 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120008934 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
20ft (6.1m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Black
CG00821$27.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
Will this CG00893 cable work with my Cat6 shielded keystones?
Yes, this shielded patch cable is designed for high-speed data environments and is compatible with components like the CG35217 90° Cat6 RJ45 UTP Shielded Keystone Jack.
What is the wiring configuration for this orange patch cable?
The CG00893 uses the T568B wiring scheme and features 26AWG (7/0.16) stranded bare copper conductors.
Does this cable provide protection against electromagnetic interference?
Yes, the SSTP shielding and bonded pair design reduce impedance, structural return loss, and Near-End Crosstalk (NEXT) in noise-heavy environments.
What is the difference between this and the black version?
The CG00893 is the orange version of this cable; the CG00821 is the same 20ft Cat6 Snagless Shielded STP cable in black.
Is this cable suitable for high-bandwidth video distribution?
Yes, it is designed for bandwidth-intensive applications in voice, data, and video distribution while maintaining ANSI/TIA 568 C.2 compliance.
