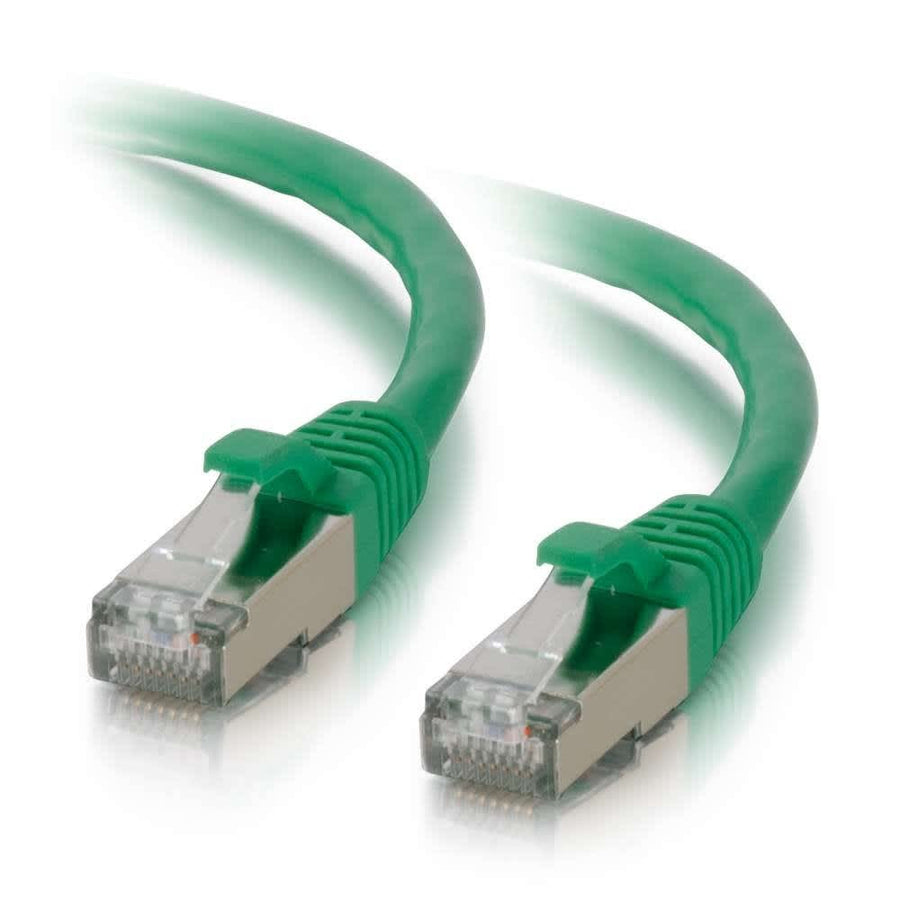

20ft (6.1m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Green
20ft green Cat6 shielded STP patch cable with snagless boots and stranded copper conductors
The CG00838 is a 20ft (6.1m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable in green. Designed to protect high-speed networks from electromagnetic interference and noise, this SSTP cable is suitable for bandwidth-intensive voice, data, and video distribution. The 26AWG bare copper conductors feature stranded construction and are paired with FM-PE insulation. Each individual pair is bonded together to maintain twist-spacing through the termination point, which helps minimize Near-End Crosstalk (NEXT) levels and reduces impedance and structural return loss (SRL). This cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements and utilizes a T568B wiring scheme. The connectors are equipped with PVC hoods and snagless, booted designs to protect the locking tabs. The jacket is made of PVC material and is rated for temperatures up to 75°C.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 20 ft (6.1 m) |
| Shield Type | STP |
| Shipping Weight | 0.63 lbs (0.3 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120008385 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
20ft (6.1m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Black
CG00821$27.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
Will the CG00838 cable work with my shielded networking equipment?
Yes, this is a shielded (STP) Cat6 cable designed to protect high-speed networks from electromagnetic interference and noise.
What is the termination standard for the CG00838?
The CG00838 is wired using the T568B scheme and is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements.
Is there a different color available for this same cable length?
Yes, the CG00821 is the 20ft (6.1m) version of this snagless shielded Cat6 STP cable in black.
What type of conductors are used in this patch cable?
This cable features 26AWG bare copper stranded conductors with FM-PE insulation to help maintain twist-spacing.
What certifications does this green patch cable carry?
The CG00838 is compliant with REACH, RoHS, and NDAA 889, and carries CE, Prop 65, and TSCA certifications.
