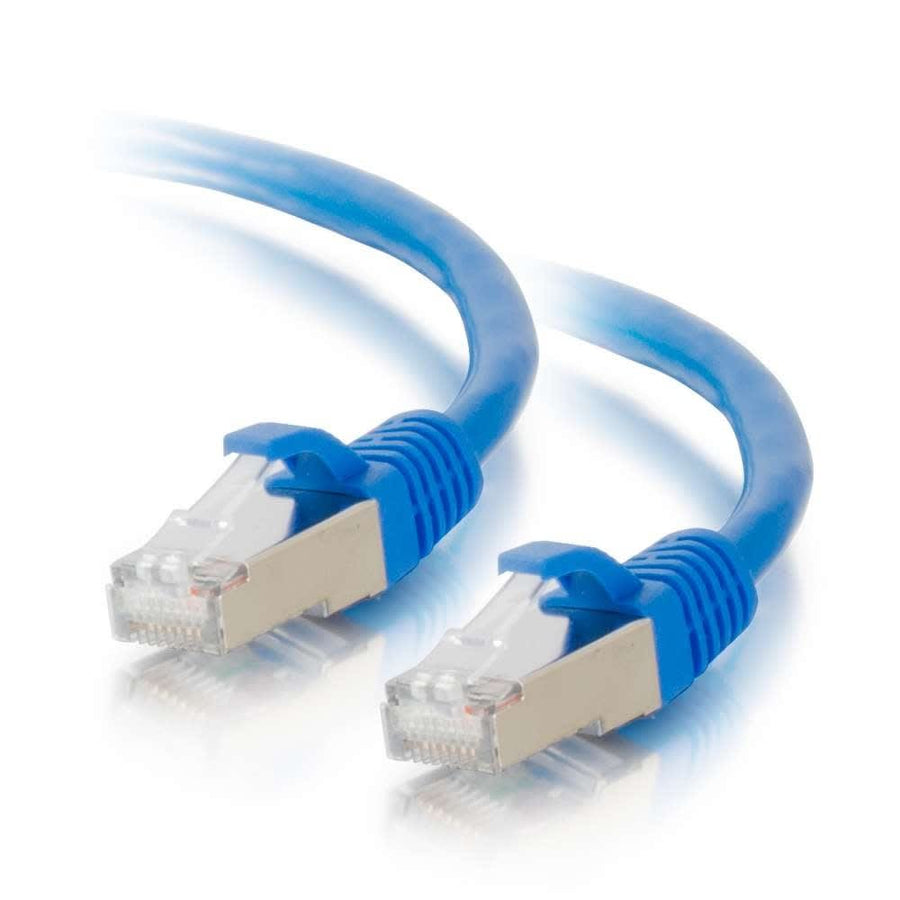

20ft (6.1m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Blue
20ft blue Cat6 STP patch cable with snagless boots and shielded twisted pair construction for noise-sensitive environments
The CG00804 is a 20ft (6.1m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable in blue. Designed for bandwidth-intensive voice, data, and video distribution, this cable protects high-speed networks from electromagnetic interference and noise through its shielded twisted pair (SSTP) construction. Each cable features 26AWG bare copper stranded conductors, providing reliable signal integrity for critical networking applications. The design minimizes Near-End Crosstalk (NEXT) levels, and each individual pair is bonded together to maintain consistent twist-spacing through to the termination point. This cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements, ensuring it meets professional performance standards. For easy deployment in complex installations, each cable includes an individual length label for quick identification. The snagless, booted RJ-45 male connectors protect the locking tabs from damage during routing and installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 20 ft (6.1 m) |
| Shield Type | STP |
| Shipping Weight | 0.58 lbs (0.3 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120008040 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
20ft (6.1m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Black
CG00821$27.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
Will this CG00804 cable work for high-speed data networks?
Yes, it is Cat6 component tested to ANSI/TIA 568 C.2 standards, making it suitable for bandwidth-intensive video and data distribution.
How does the shielding on the CG00804 prevent interference?
The SSTP design uses shielded twisted pair construction and bonded individual pairs to reduce impedance, structural return loss (SRL), and Near-End Crosstalk (NEXT).
What is the wiring standard used for this patch cable?
The CG00804 follows the T568B wiring scheme and uses 26AWG stranded copper conductors.
Are there other color options available for this series?
Yes, this series is available in various colors; for example, the CG00821 is the black version of this 20ft Cat6 cable.
What certifications does this cable carry?
This cable is CE certified and complies with RoHS, REACH, and TAA-exempt/NDAA 889 standards.
