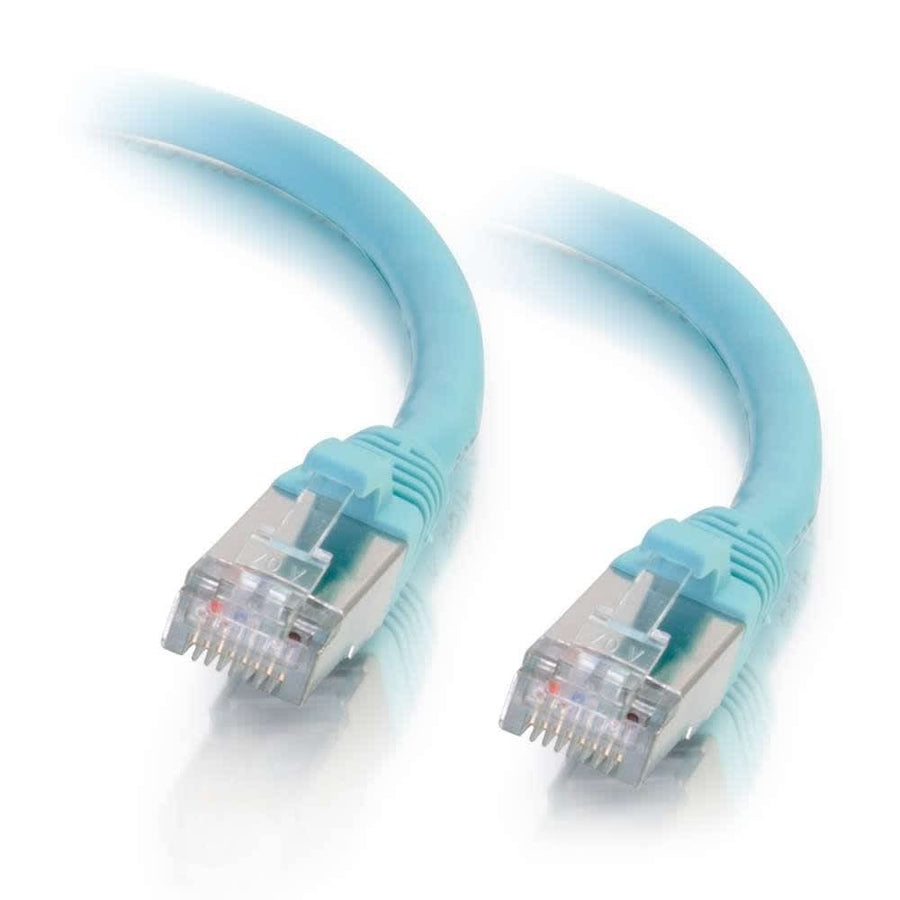

1ft (0.3m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Aqua
1ft (0.3m) Cat6a Snagless Shielded STP Ethernet patch cable in Aqua, designed for 10GBase-T high-speed network connections
The C2G CG00740 is a 1ft (0.3m) Cat6a Snagless Shielded STP Ethernet patch cable designed to support 10GBase-T equipment, including network adapters, hubs, switches, routers, and patch panels. This Aqua-colored cable protects high-speed 10 Gigabit network connections from electromagnetic interference and noise through its shielded STP construction. It features stranded copper conductors with a 26 AWG gauge and FMPE (Foam Polyethylene) insulation. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements, ensuring high performance for bandwidth-intensive applications. The design utilizes bonded individual pairs to maintain twist-spacing through the termination point, which helps minimize Near-End Crosstalk (NEXT) and reduces impedance and structural return loss (SRL). This cable is ideal for color-coding network installations, and each unit includes an individual length label for quick identification during installation and maintenance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 1 ft (0.3 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.06 lbs (0 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 26 |
| Cable Shielding | Shielded STP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
| Color | Aqua |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120007401 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
1-Port Keystone Jack Surface Mount Box - White
CG03831$4.99
Questions about this part
Will this CG00740 cable support 10GbE networking?
Yes, this Cat6a cable is designed for 10GBase-T ports and equipment, providing the necessary bandwidth for high-speed 10 Gigabit connections.
What is the wiring scheme for the C2G CG00740?
This patch cable uses the T568B wiring scheme for all connections.
What is the maximum operating temperature for this cable?
This cable is rated for operating temperatures ranging from -4°F (-20°C) to 176°F (80°C).
Does this cable include snagless boots?
Yes, the CG00740 features snagless, booted RJ-45 male connectors to protect the locking tab from damage during installation.
Is this cable suitable for high-interference environments?
Yes, the shielded STP design is specifically engineered to protect high-speed data transfers from electromagnetic interference.
