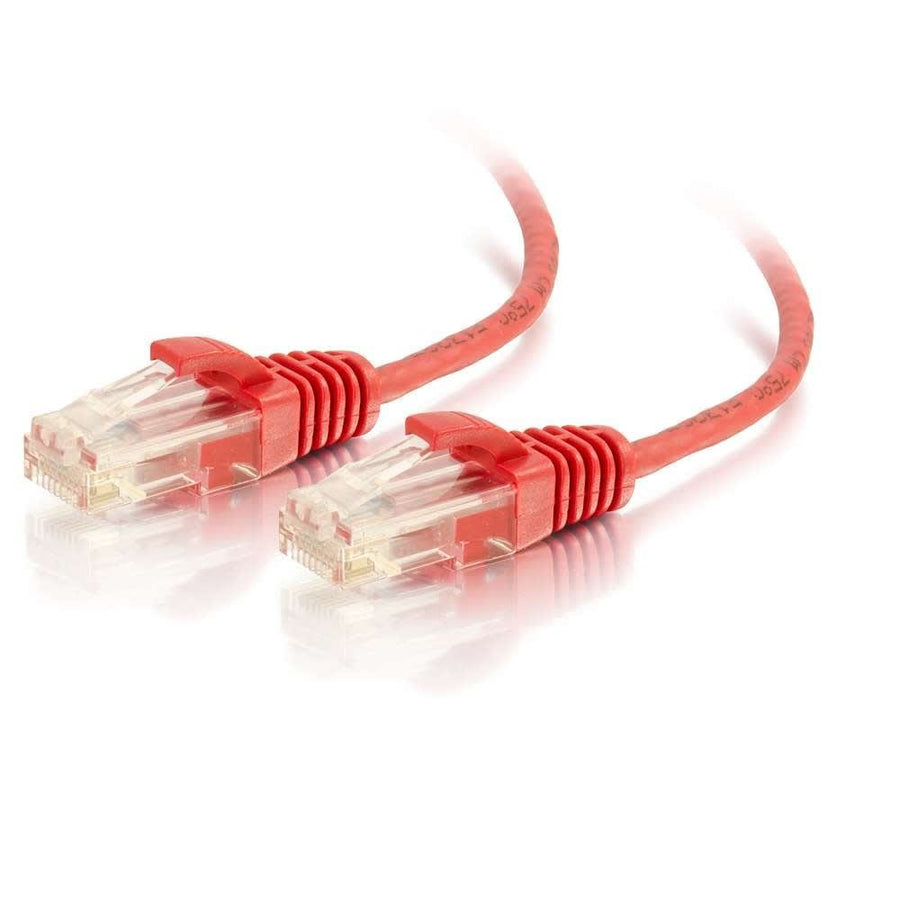

1ft (0.3m) Cat6 Snagless Unshielded UTP Slim Ethernet Network Patch Cable - Red
Red Cat6 Slim Ethernet patch cable, 1ft length, 28 AWG unshielded UTP construction for high-density airflow
The C2G CG01165 is a 1ft (0.3m) Cat6 Slim Unshielded UTP Ethernet Network Patch Cable in Red, specifically engineered for high-density datacenter environments. Utilizing 28 AWG stranded copper conductors, this slimline cable features a 0.15 in (3.8 mm) diameter, representing a 36% reduction in diameter compared to standard Cat6 patch cables. This reduced profile increases airflow within crowded enclosures and allows for a significantly smaller bend radius, making it easier to route through tight cable management panels. This cable is designed for high-bandwidth voice, data, or video distribution in fast Ethernet networks. Each connector is a booted, snagless RJ-45 male, featuring a PVC hood to provide extra strain relief and prevent snags during installation. For PoE/PoE+ applications, it is recommended to limit bundles to 40 cables to manage heat dissipation due to the reduced diameter. This product complies with the latest ANSI/TIA-568 standards and is TIA-568 compliant.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Cable Diameter | 0.15 in (3.8 mm) |
| Cable Length | 1 ft (0.3 m) |
| Shield Type | UTP |
| Shipping Weight | 0.04 lbs (0 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 28 |
All other specifications 17
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120011651 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
1ft (0.3m) Cat6 Snagless Unshielded UTP Slim Ethernet Network Patch Cable - Black
CG01098$7.99
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Questions about this part
Can I use this CG01165 cable for PoE or PoE+ applications?
Yes, but for PoE/PoE+ applications, it is recommended to limit cable bundles to 40 units to ensure proper heat dissipation due to the 28 AWG reduced diameter.
How does this slim cable compare to a standard Cat6 patch cable?
The 28 AWG slim design offers a 36% reduction in diameter compared to standard Cat6 cables, which helps increase airflow and allows for a tighter bend radius in cable management.
What is the maximum channel length when using this slim patch cable?
For a 96-meter channel, you can use up to 6 meters of slim network patch cables; for a 93-meter channel, you can use up to 10 meters.
What is required to complete a high-density patch panel installation?
This cable is compatible with various components such as the 48-Port Rack Mount Patch Panel (SKU 48845CC6) or the 24-Port Rack Mount Patch Panel (SKU 24845CC6).
Which documents are available for submittals and technical verification?
You can refer to the C2G Ethernet Patch Cable Matrix or the Cat6 Slim Data Sheet for detailed technical performance information.
