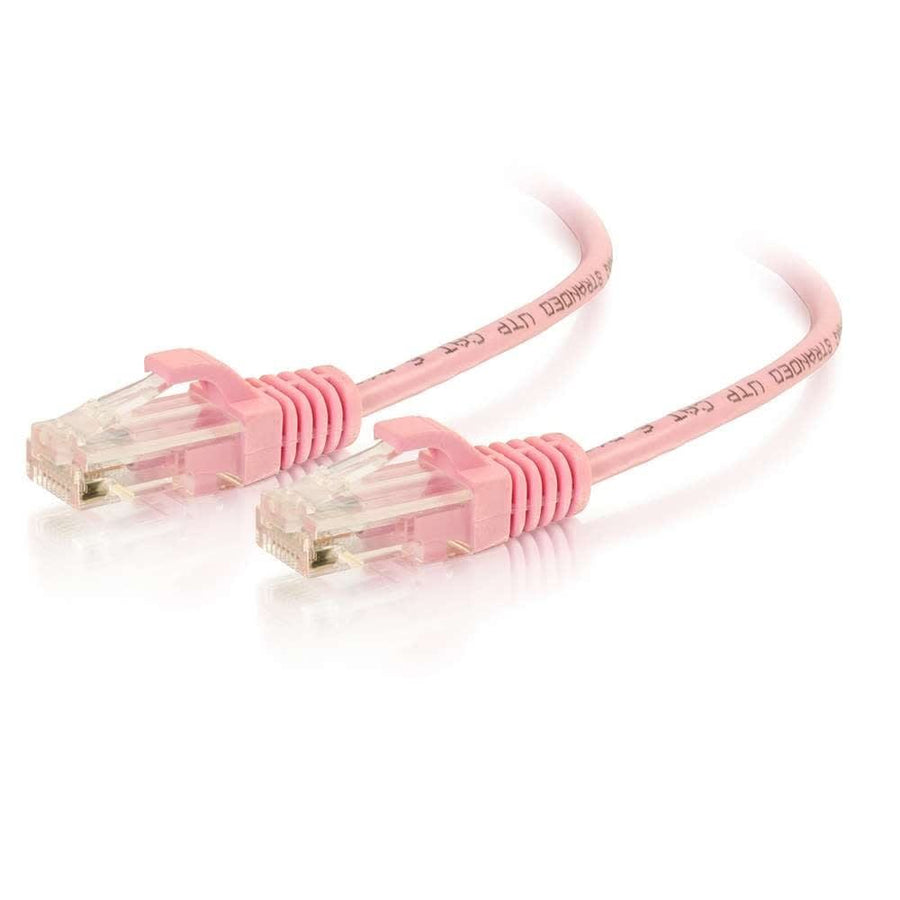

1ft (0.3m) Cat6 Snagless Unshielded UTP Slim Ethernet Network Patch Cable - Pink
1ft Pink Cat6 slim patch cable with 28 AWG stranded copper conductors, designed for high-density datacenter airflow
The CG01190 is a 1ft (0.3m) Cat6 Snagless Unshielded (UTP) Slim Network Patch Cable in Pink, specifically engineered for high-density datacenter environments. By utilizing 28 AWG stranded copper conductors, this cable achieves a 36% reduction in diameter compared to standard Cat6 network patch cables. This smaller 0.15 in (3.8 mm) diameter reduces the cable surface area, which facilitates improved airflow within crowded network enclosures. Additionally, the reduced profile allows for a smaller bend radius, making the CG01190 easier to route through tight cable management panels. This cable is designed to support fast Ethernet networks requiring bandwidth-intensive voice, data, or video distribution. The snagless, molded PVC boot provides strain relief and prevents accidental snags during installation. While suitable for many high-density needs, installers should limit bundles to 40 cables for POE/POE+ applications to manage heat dissipation from the reduced diameter.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Cable Diameter | 0.15 in (3.8 mm) |
| Cable Length | 1 ft (0.3 m) |
| Shield Type | UTP |
| Shipping Weight | 0.04 lbs (0 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 28 |
All other specifications 17
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Pink |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120011903 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
Questions about this part
What are the maximum recommended channel lengths for CG01190 slim cables?
For a 96-meter channel, you can use up to 6 meters of slim network patch cables. For a 93-meter channel, you can use up to 10 meters of slim network patch cables.
Is this cable suitable for PoE or PoE+ applications?
Yes, but due to the heat dissipation of the 28 AWG reduced diameter conductors, it is recommended to limit cable bundles to 40 cables.
Can this patch cable be used in high-density datacenter racks?
Yes, the slim 0.15 in (3.8 mm) profile and small bend radius allow for efficient routing through high-density cable management panels.
What is the wiring scheme for the CG01190?
The CG01190 uses the T568B wiring scheme and features RJ-45 male connectors on both ends.
What certifications does this Cat6 cable hold?
This cable is compliant with ANSI/TIA-568 standards and is CE, RoHS, and REACH certified.
