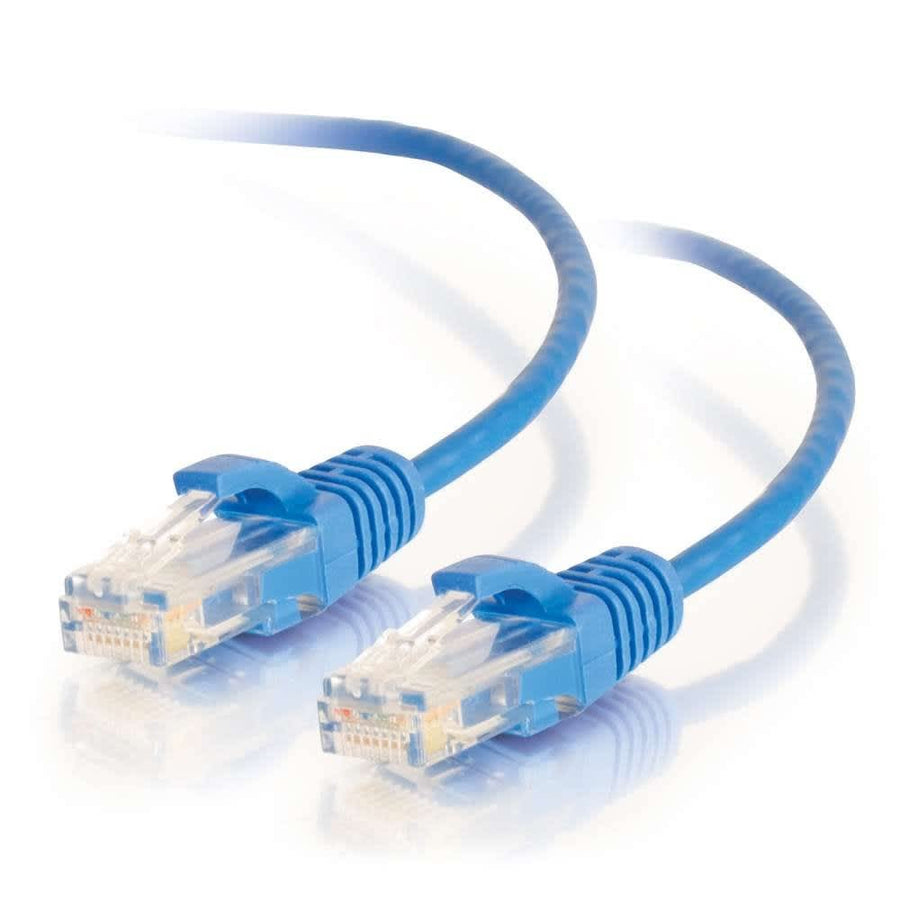

1ft (0.3m) Cat6 Snagless Unshielded UTP Slim Ethernet Network Patch Cable - Blue
1ft Blue Cat6 Slim Unshielded UTP Patch Cable, 28 AWG stranded copper for high-density applications
The C2G CG01072 is a 1ft (0.3m) Cat6 Snagless Unshielded UTP Slim Ethernet Network Patch Cable in blue. Engineered for high-density datacenter applications, this cable utilizes 28 AWG stranded copper conductors, providing a 36% reduction in diameter compared to standard Cat6 patch cables. This slim profile significantly reduces the cable surface area, which promotes increased airflow within crowded enclosures. Additionally, the reduced diameter allows for a smaller bend radius, making it easier to route through tight cable management panels. Designed for fast Ethernet networks, this cable supports bandwidth-intensive voice, data, and video distribution. The molded snagless boot provides extra strain relief and prevents accidental snags during installation. This cable is compliant with ANSI/TIA-568 standards and is suitable for various high-density networking environments where space and airflow are critical considerations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Cable Diameter | 0.15 in (3.8 mm) |
| Cable Length | 1 ft (0.3 m) |
| Shield Type | UTP |
| Shipping Weight | 0.04 lbs (0 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 28 |
All other specifications 17
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120010722 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it

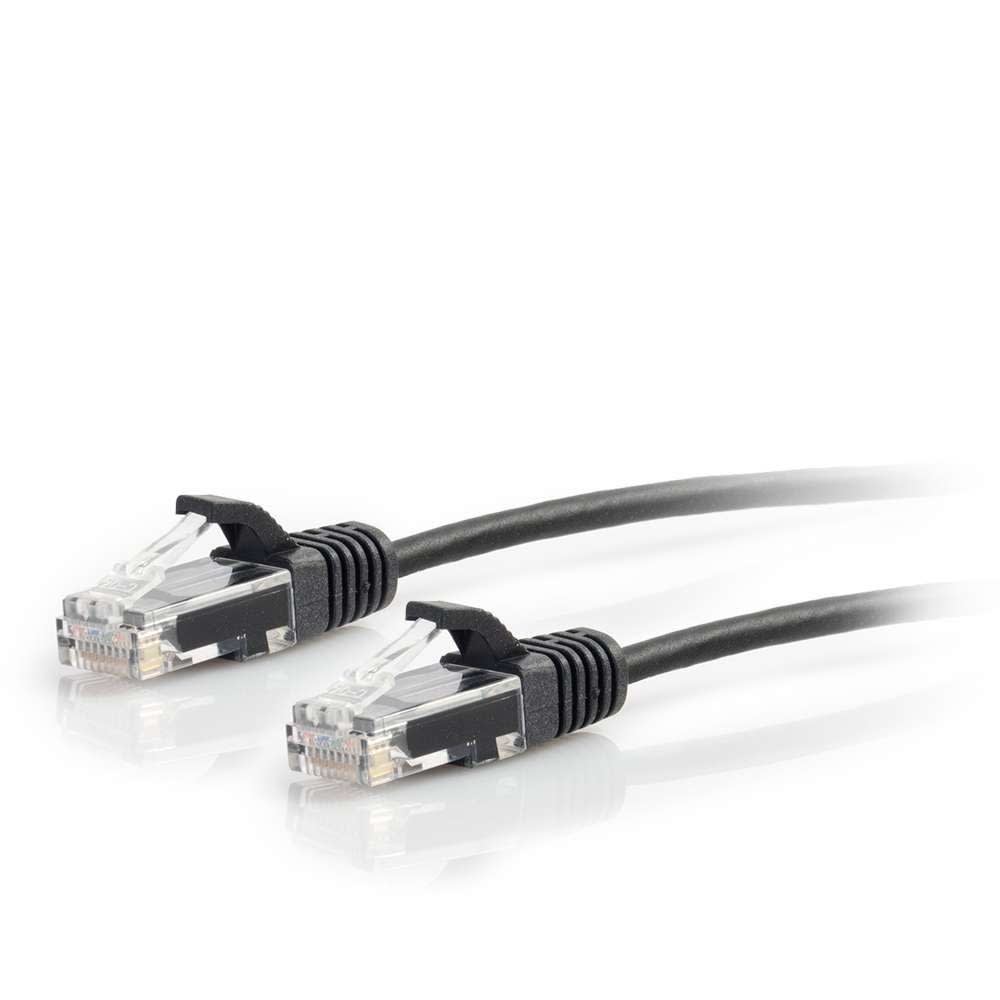

1ft (0.3m) Cat6 Snagless Unshielded UTP Slim Ethernet Network Patch Cable - Black
CG01098$7.99
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Questions about this part
What are the maximum recommended channel lengths for this slim Cat6 cable?
For a 96 Meter Channel, you can use up to 6 meters of slim network patch cables. For a 93 Meter Channel, you can use up to 10 meters of slim network patch cables.
Is this cable suitable for PoE or PoE+ applications?
For PoE/POE+ applications, it is recommended to limit cable bundles to 40 cables due to the heat dissipation characteristics of these reduced diameter 28 AWG cables.
What is the difference between this and the black version?
The CG01072 is the blue version; a black variant is available under SKU CG01098.
Does this cable work with high-density patch panels?
Yes, its slim 0.15 in (3.8 mm) diameter and small bend radius are designed for routing through cable management panels and high-density rack mount patch panels like the 48-Port Cat6 Rack Mount Patch Panel (48845CC6).
What compliance and regulatory standards does this cable meet?
This cable is compliant with NDAA 889, RoHS, REACH, TSCA, and Prop 65, and carries the CE mark.
