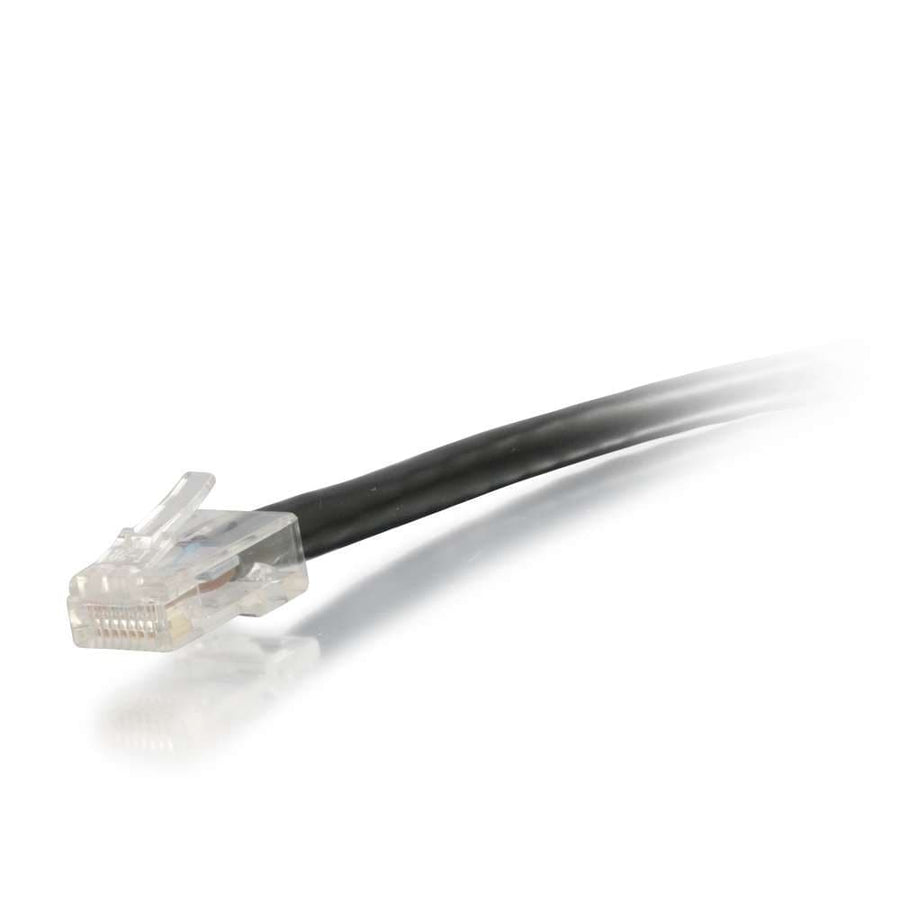

1ft (0.3m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Black
1ft Cat6 Unshielded UTP Ethernet patch cable, black finish, featuring T568B wiring and stranded copper conductors
The C2G CG04106 is a 1ft (0.3m) Cat6 Unshielded UTP Ethernet network patch cable designed for short-distance connectivity within high-density environments. This black cable features a non-booted connector design and is built with stranded copper conductors to provide flexibility during installation. It follows the T568B wiring scheme to ensure standard compatibility across network hardware. This cable has a cable diameter of 0.24 in (6 mm) and is constructed with a PVC jacket. Electrically, it maintains an impedance of 100 ohms and a capacitance of 5600pf/100m. It is rated for operation in temperatures up to 75°C. This product is TAA non-compliant and is rated for standard, non-rated jacket applications. The cable is part of a larger series of Cat6 non-booted patch cables with various length and color options available to suit specific installation requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 1 ft (0.3 m) |
| Shield Type | UTP |
| Shipping Weight | 0.04 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120041061 |
| Certifications | CECENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
Questions about this part
Is the C2G CG04106 TAA compliant?
No, this specific SKU is not TAA compliant.
What wiring scheme does this Cat6 cable use?
The CG04106 cable utilizes the T568B wiring scheme.
What is the maximum operating temperature for this cable?
This cable is rated for temperatures up to 75°C.
Can I use this cable with a rack mount patch panel?
Yes, this cable is compatible with accessories like the 48-Port Rack Mount Patch Panel (SKU 48845CC6) or the 24-Port Rack Mount Patch Panel (SKU 24845CC6).
What is the conductor material and stranding for the CG04106?
This cable features stranded copper conductors.
