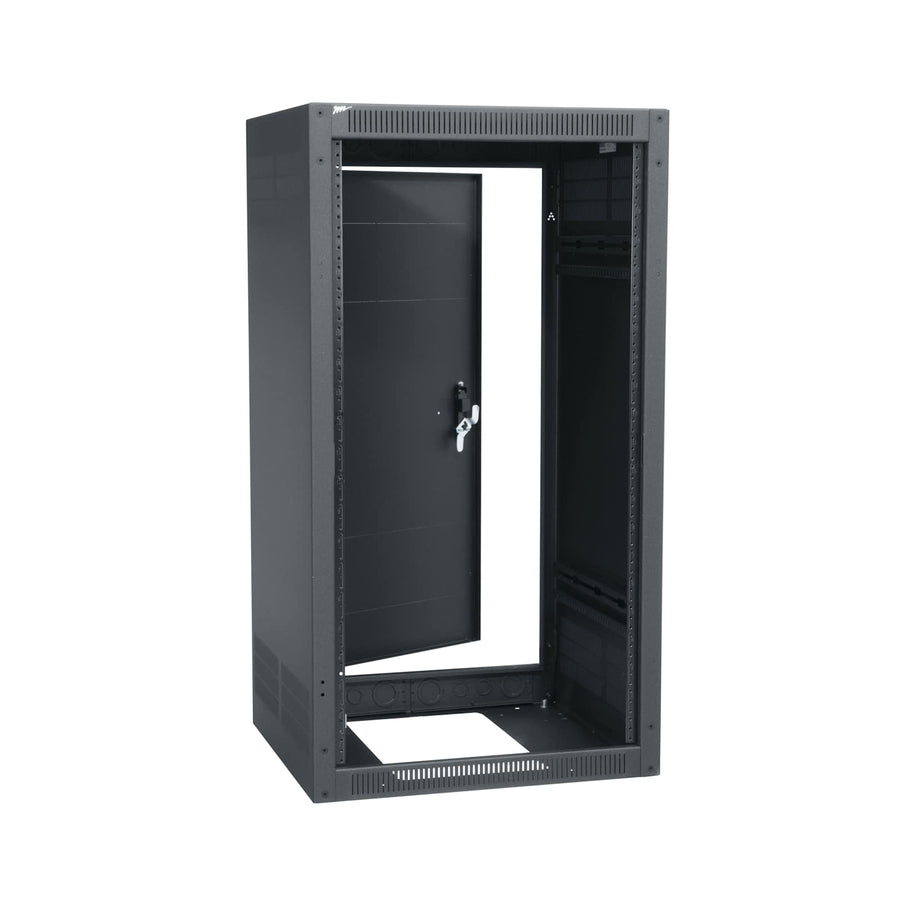

18 RU ERK Series Rack, 28 Inches Deep
18 RU floor-standing rack, 28" deep, with a key-locked rear door and seismic rating
The Middle Atlantic ERK-1828 is an economical 18 RU standalone floor-standing rack designed for professional AV installations. This frame-only configuration features a 28 in (71.1 cm) depth and is constructed from heavy-duty steel with a black wrinkle powder coat finish. To facilitate organized cabling, the rack includes lacing points and slotted rackrail brackets, alongside standard front adjustable 10-32 threaded rackrails that feature numbered spaces for easy equipment identification. The ERK-1828 includes a key-locked standard rear door for secure equipment access. For enhanced thermal management, the rack sides are equipped with top and bottom venting. This model is highly versatile; it can be ganged with other ERK Series units to create partitioned multi-bay installations for improved security and thermal control. This unit is TAA compliant and UL Listed in the US and Canada, supporting a UL load capacity of 2,500 lbs (1,134 kg). For deployments in seismic zones, this rack is seismic rated with a seismic load capacity of 680 lbs (308.4 kg) when installed with ERK-Z4 brackets.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 28 in (71.1 cm) |
| Height | 35.63 in (90.5 cm) |
| Panel Width | 19 in (48.3 cm) |
| Product Weight | 74.1 lbs (33.6 kg) |
| Rack Units | 18 RU |
| Shipping Weight | 106 lbs (48.1 kg) |
| UL Load Capacity | 2500 lbs (1,134 kg) |
| Usable Depth | 26.47 in (67.2 cm) |
All other specifications 15
| Usable Height | 31.63 in (80.3 cm) |
| Width | 22 in (55.9 cm) |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Material | Steel |
| Product Configuration | Frame Only |
| Rack Rail Type | 10-32 |
| Rear Door | Yes |
| Seismic Rated | Yes |
| Ships Flat | No |
| TAA Compliant | Yes |
| UPC | 656747213533 |
| Certifications | ASCETAAUL Listed |
| Seismic Load Capacity | 680 lbs (308.4 kg) |
Resources
You'll need these with it
2 RU Select Series UPS Backup Power, 1500VA
UPS-S1500R$1,598.40
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Caster Base for 28 Inch Deep ERK Series - 1,300 pounds
CBS-ERK-28$343.80
18 RU Plexi Front Door for DWR and ERK Racks
PFD-18$486.90
18 RU Vented Front Door for DWR and ERK Racks, 64% Open
LVFD-18$501.30
18 RU Solid Front Door for DWR and ERK Racks
FD-18$281.70
18 RU Rackrail 10-32 for ERK Series
ERK-RR18$84.60
18 RU Vented Front Door for DWR and ERK Racks
VFD-18$443.70
101mm DC Fan Kit with (1) Fan, 69CFM for the European Union
FAN-69-K-EU$130.50
NEXSYS™ 1500VA, 15 Amp UPS Backup Power System with RackLink™, Individual Outlet Control
UPX-RLNK-1500R-8$3,410.10
Dry Contact Sensor Rlnk-Cont For Use With Premium+ PDU With RackLink™
RLNK-CONT$216.00
Premium+ PDU With RackLink™ Temperature And Humidity Sensor
RLNK-TEMP$126.00
Questions about this part
Will the ERK-1828 fit my equipment depth requirements?
The ERK-1828 has a total depth of 28 in (71.1 cm) and provides a usable depth of 26.47 in (67.2 cm).
What accessories are needed to make this rack seismic rated?
To achieve the seismic load capacity of 680 lbs (308.4 kg), this rack must be installed with ERK-Z4 brackets.
Is the ERK-1828 a complete enclosure?
This SKU is a frame-only configuration. You can customize it with various front doors, such as the PFD-18 Plexi front door or the VFD-18 vented front door.
What is the maximum weight this rack can support?
This rack is UL Listed with a total load capacity of 2,500 lbs (1,134 kg).
Can I add a caster base to this rack?
Yes, the CBS-ERK-28 caster base is compatible with this 28-inch deep ERK Series rack and supports up to 1,300 pounds.
